Dräger Alcotest 6820 Instruction Manual

26 Dräger Alcotest 6820
Use

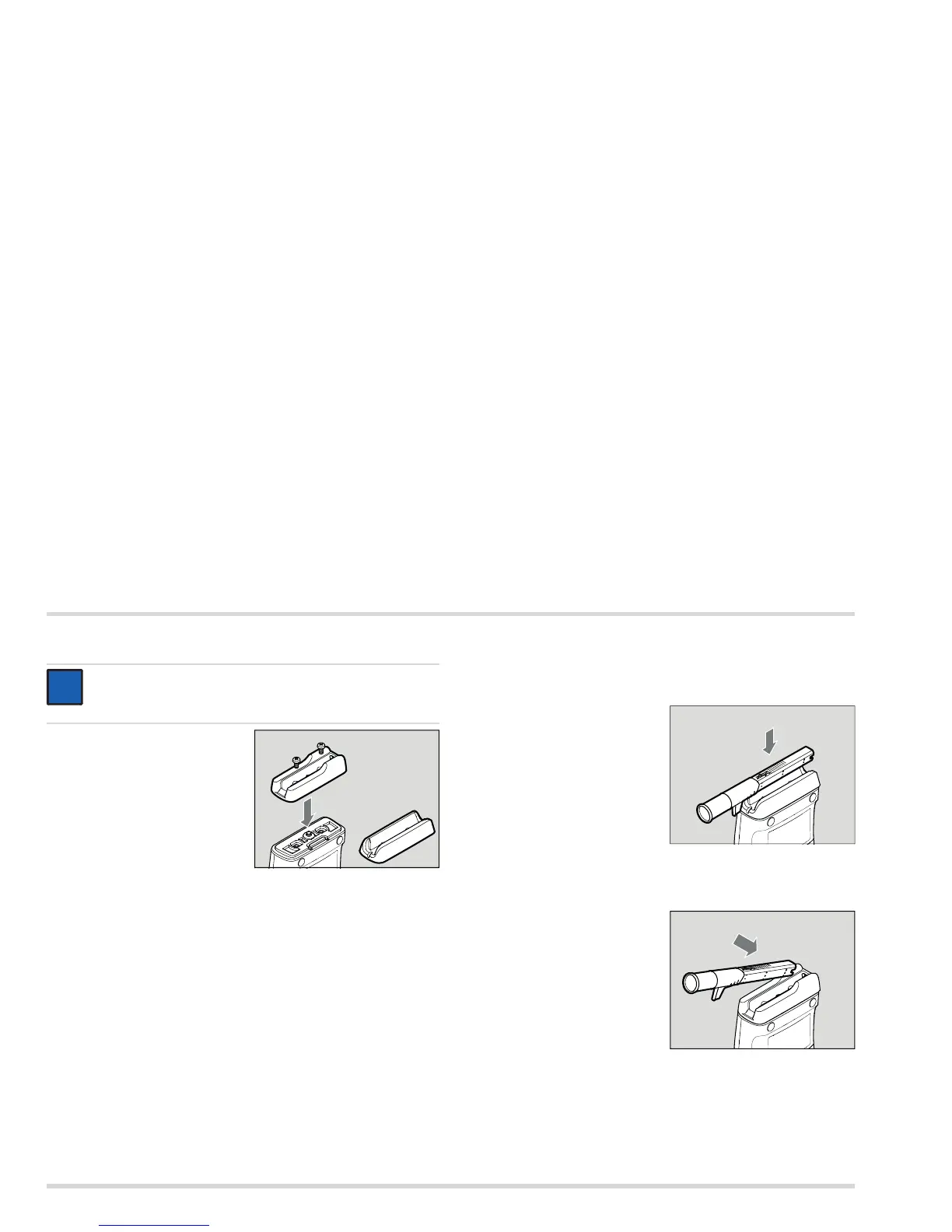

3.2.5 Replacing the mouthpiece receptacle
1. Undo the screws on the
mouthpiece receptacle.
2. Remove the mouthpiece
receptacle.
3. Insert new mouthpiece
receptacle on the device,
observe the desired
mouthpiece orientation.
4. Fix the mouthpiece
receptacle with screws (2x).
3.2.6 Attach the mouthpiece
1. Remove the mouthpiece from the packaging. For reasons of
hygiene, leave the protective wrapping around the mouth contact
area until the mouthpiece is firmly attached to the device.
 With mouthpiece version A:
 With the fluted markings
(= press-on surface)
facing upwards, hold the
mouthpiece at an angle,
push it upwards and
press it into the
mouthpiece receptacle.
The mouthpiece audibly
snaps into place. The
mouthpiece can be used
facing to the right or to
the left.
 With mouthpiece version B:
 With the fluted markings
(= press-on surface)
facing upwards, hold the
mouthpiece at an angle
in the mouthpiece
receptacle and press it
into the mouthpiece
receptacle. The
mouthpiece audibly
snaps into place.
2. Remove all packaging.
NOTICE
Replacing the mouthpiece receptacle is not permitted in all
countries. Please observe national regulations!
i
i
00633400.eps
00733400.eps
00833400.eps

Dräger Alcotest 6820 Specifications

General

Operating Temperature	-5 to +50 °C
Display	Backlit LCD
Sensor Type	Electrochemical sensor
Storage Temperature	-20 to +60 °C
Data Storage	5000 test results
Humidity Range	10 to 95 % RH, non-condensing
Battery Life	Approximately 1500 tests
Interface	USB
Warm-up Time	Approximately 6 seconds
Sample Method	Breath sampling
