Operation of HBSPS Supplement
Fabius GS/GS premium/Tiro/OS Supplement Supplement #9038278, Rev. 07 13

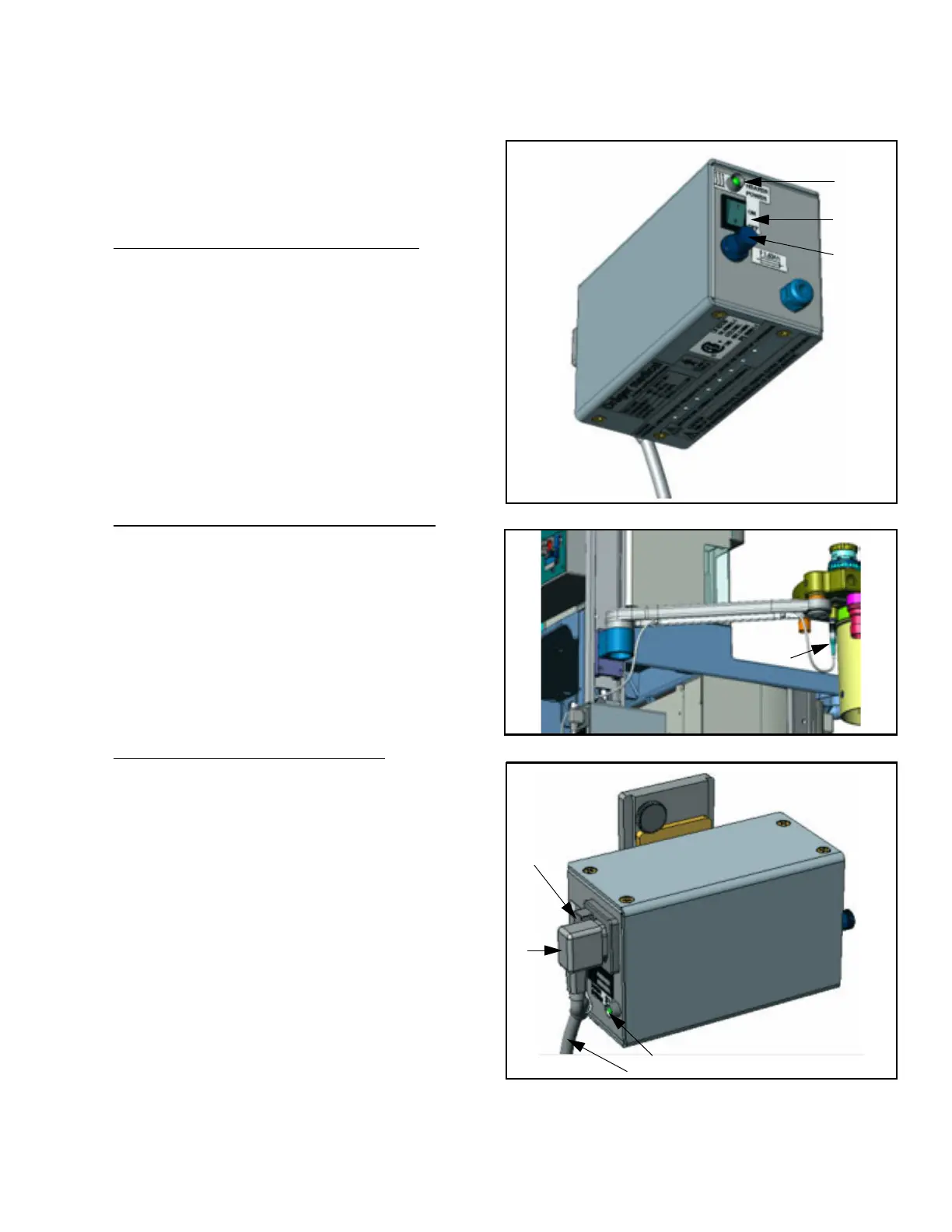

Figure 15. HBSPS Front
HBSPS Problem Resolution
Note: Call your local Authorized Service
Organization or DrägerService if the
following steps do not resolve HBSPS
problems.
Bottom of COSY Not Warm After 30 Minutes
1. Ensure that the HEATER POWER switch
(1 in Figure 15) is in the ON position.
2. Ensure that the “HEATER POWER ON” LED is
illuminated (2 in Figure 15).
3. Check that the connector (1 in Figure 1) on the
cable running to the COSY is plugged in
properly.
4. Check that the MAINS POWER LED
(1 in Figure 17) is illuminated and that the Mains
Power cord (2 in Figure 17) is plugged into a
functioning wall outlet.
Figure 16. HBSPS Connector“HEATER POWER ON LED” Is Not Illuminated
If the “HEATER POWER ON” LED (2 in Figure 15) is
not illuminated when the HEATER POWER switch
(1 in Figure 15) is in the ON position and the MAINS
POWER LED (1 in Figure 17) is illuminated, check
the fuse (3 in Figure 15). If it is blown, replace it with
the properly rated fuse.
Figure 17. HBSPS BackMAINS POWER LED Is Not Illuminated
If the MAINS POWER LED (1 in Figure 17) is not
illuminated when the mains power cord
(2 in Figure 17) is plugged into a wall outlet:
1. Check that the wall outlet is functioning and the
plug is plugged into it properly.
2. Check that the power supply-end cord plug (4 in
Figure 17) is plugged into the power supply
properly.
3. Check the two fuses in the power inlet assembly
(3 in Figure 17). Replace them if they are blown.
1
2
3
1
2
1
3
4
