Installation of HBSPS (Fabius Tiro) Supplement
Fabius GS/GS premium/Tiro/OS Supplement Supplement #9038278, Rev. 07 7
Installation of HBSPS (Fabius Tiro)
The following provides instruction on installation of
the Heated Breathing System Power Supply
(HBSPS).

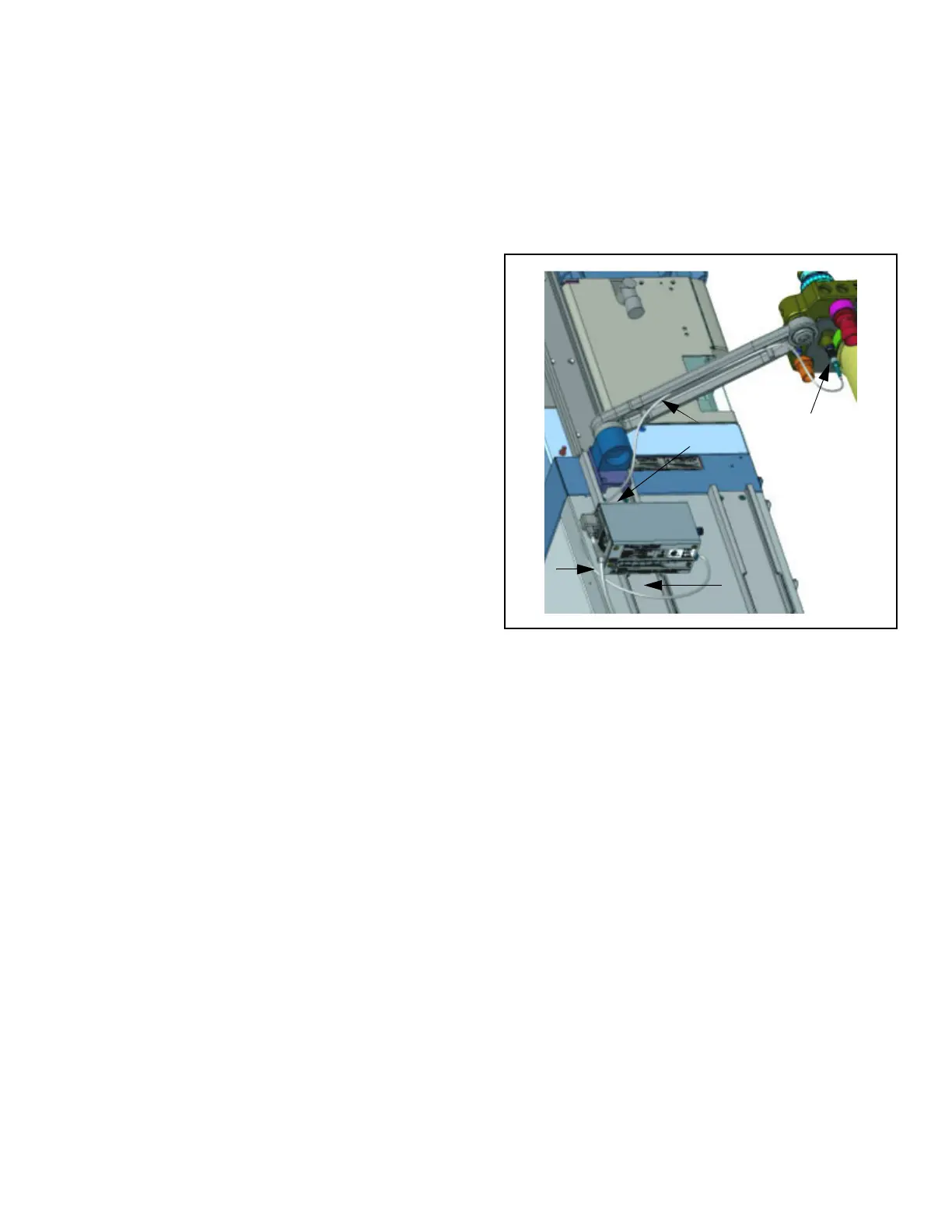

Figure 4. HBSPS Installation on Machine with Left Mount
COSY (Trolley)
Left Mount COSY HBSPS Installation
(Trolley)
The following numbers in boldface refer to Figure 4.
1. Install the power supply onto the left rear GCX
rail of the Fabius Tiro by sliding the mounting
plate of the power supply through the opening of
the rail (1) and then sliding it upward. Tighten the
knob (2) against the rail when the power supply
is in the desired position.
2. Route the power cable (3) for the heater below
and behind the power supply and then up to the
rear of the COSY arm. Push the cable into the
cable management cavity (4) on the bottom of
the COSY arm.
3. Plug the connector at the end of the cable into
the mating connector (5) on the rear underside of
the COSY. Orient the connector so that the red
mark on the connector plug aligns with the red
mark on the receptacle.
1
2
3
4
5
