6
Dräger Flame 3000
2.2.2 Field of view
The Dräger Flame 3000 has a horizontal eld of view of 120° and vertical eld of view of 80°. It does not have a traditional cone of vision like
infrared ame detectors. Its eld of view is a rectangular pyramidal shape and represents a radial projection of the rectangular sensing element

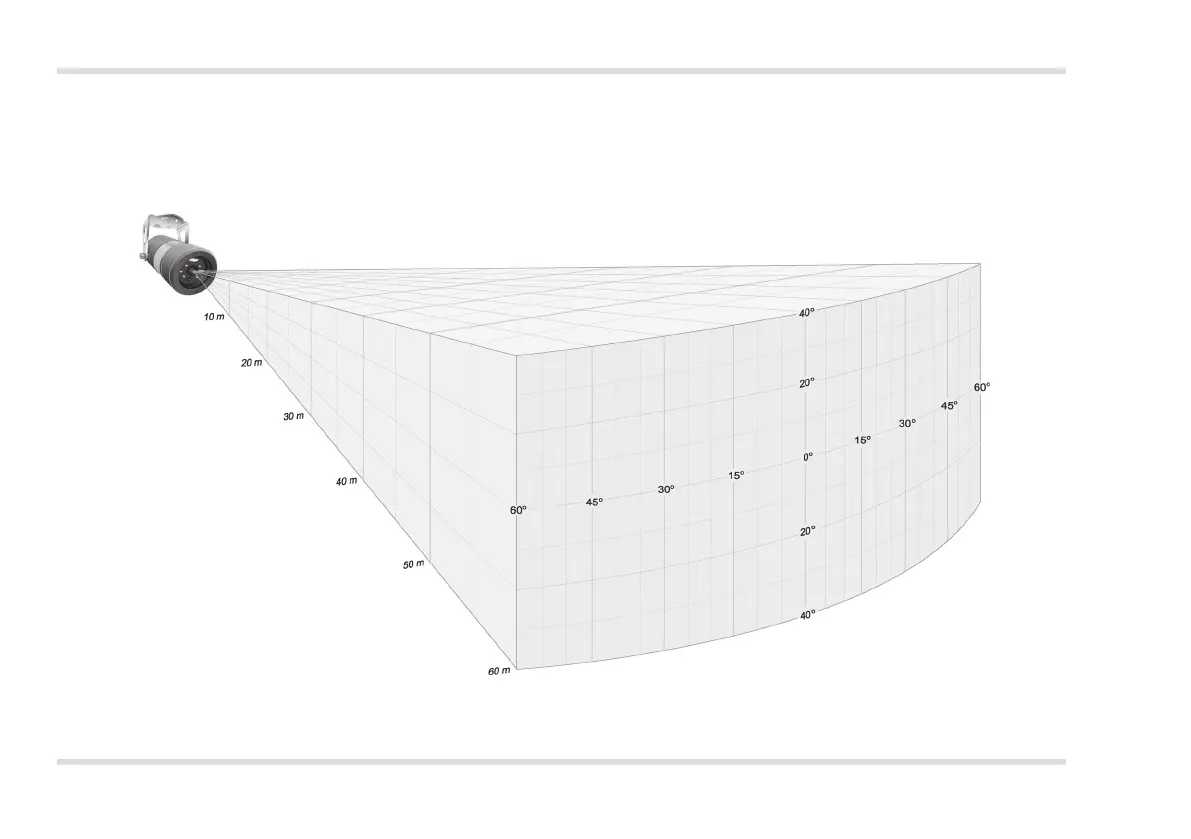

within the detector assembly. The typical eld of view and detectable range of a 0.1 m
2
n-Heptane pan re is illustrated below.
3881
Description
