Temperature
190 Instructions for use Infinity Acute Care System – Infinity M540 SW VG4.n
Connecting the temperature sensors to the hemodynamic pods
You can connect a single temperature sensor to the
following devices:
– Hemo4 pod
– Hemo2 pod
– MPod – QuadHemo

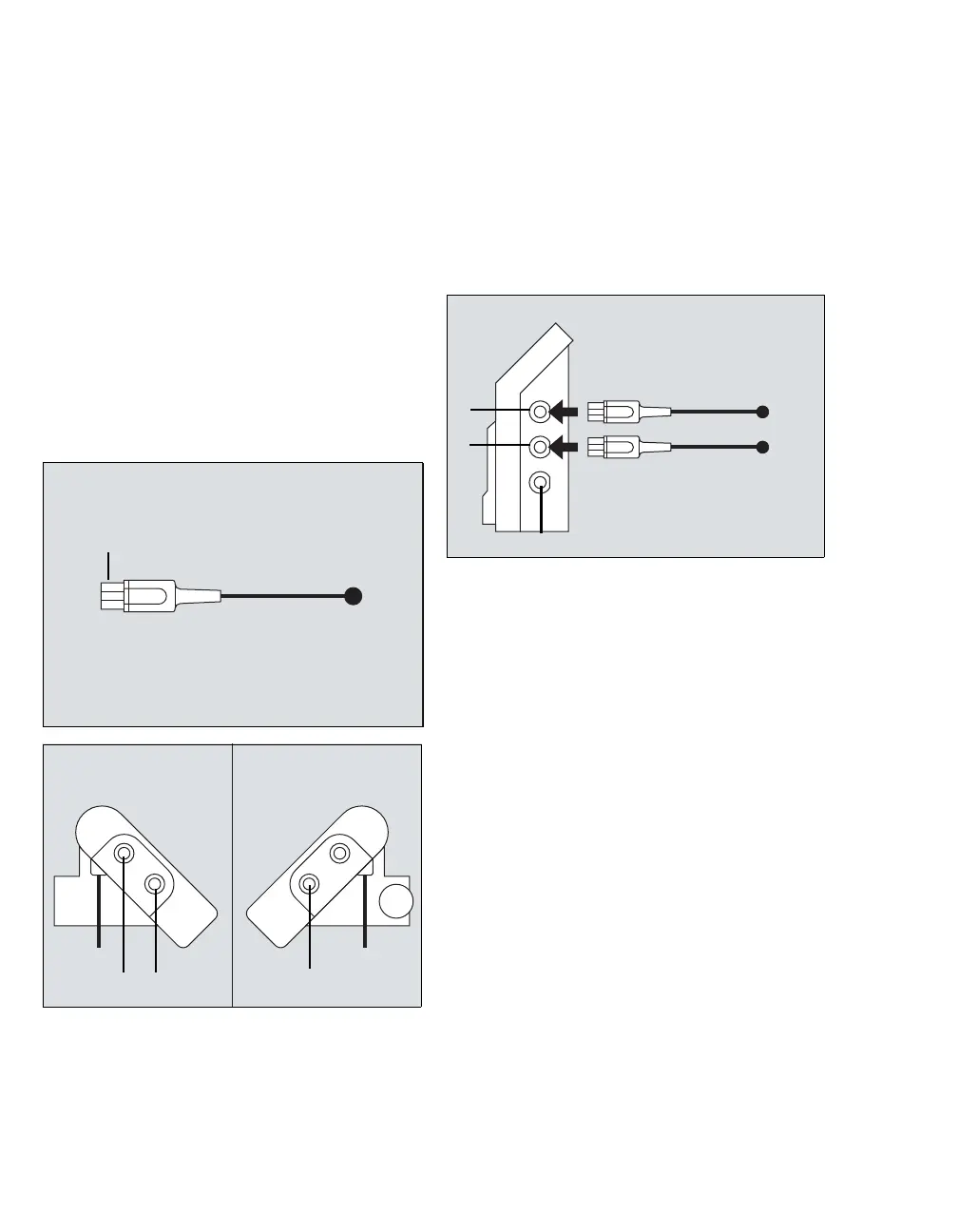

To connect temperature cables to the MPod –
QuadHemo
1 Connect the temperature sensor connector (A)
to the MPod – QuadHemo Temp B connector
(C) or Temp A connector (D).
2 Connect the connection cable to the monitor
connector (B) of the MPod – QuadHemo and to
the gray hemo connector on the M540.
To connect temperature cables to the Hemo2
pod and the Hemo4 pod
1 Connect the temperature sensor connectors (E)
to the Temp A connector (H) and/or the Temp B
connector (G) of the Hemo4 or the Hemo2 pod.
2 Connect the connection cable to the monitor
connector (F) of the Hemo2 or the Hemo4 pod
and to the gray hemo connector on the M540
(see page 188).
332
334
A
DC B
335
E
E
F
G
H
