Dräger Oxylog 3000 plus - Side View, Right; Rear View

6 Pocket Guide Oxylog 3000 plus

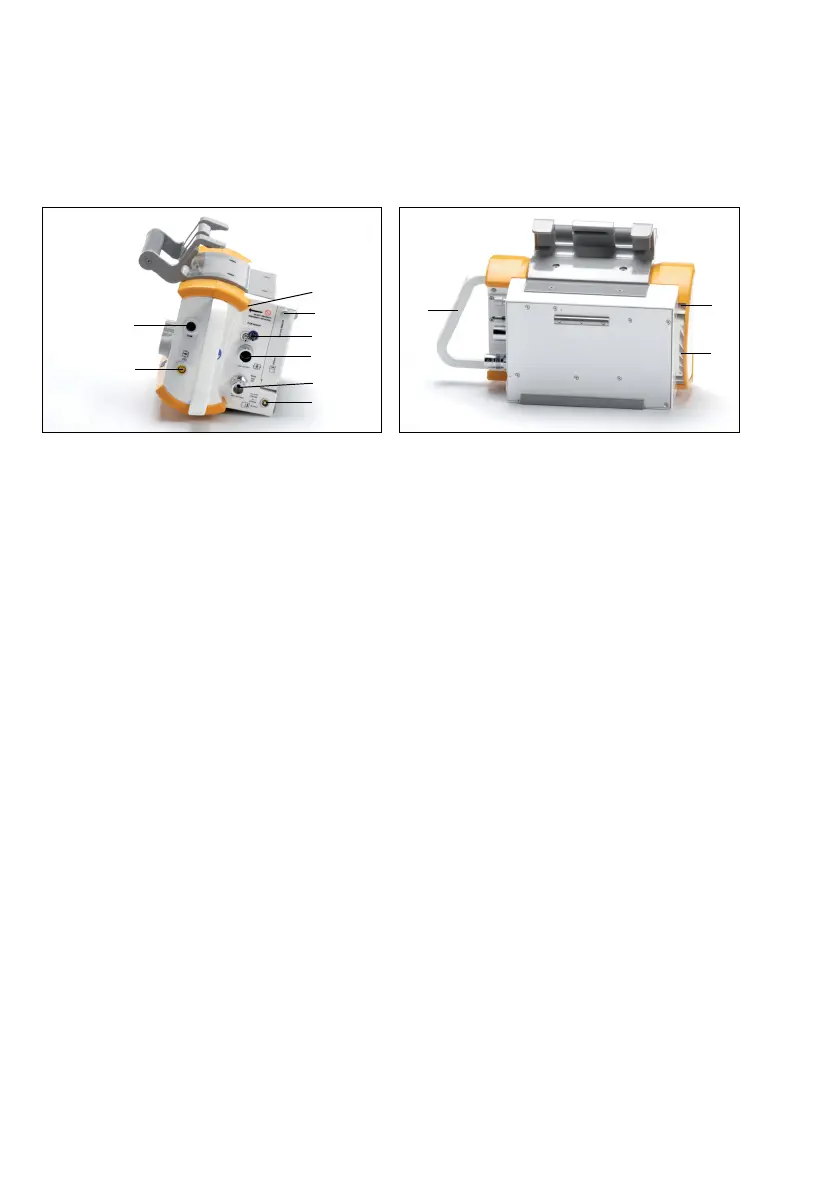

System Overview
Side view, right
A Emergency air intake
B Knob to secure the battery compartment cover
C Connectors for flow measuring hoses
D Gas outlet for ventilation hose
E Connector for O
2 supply
F Connector for power supply
G Connector for CO
2 sensor
H Connector for data communication cable
Rear view
A Emergency air intake
B Fresh-gas intake with filter cartridge
C Protection bracket
003
B
C
D
E
F
G
H
A
004
A
B
C
