Dräger PointGard User Manual

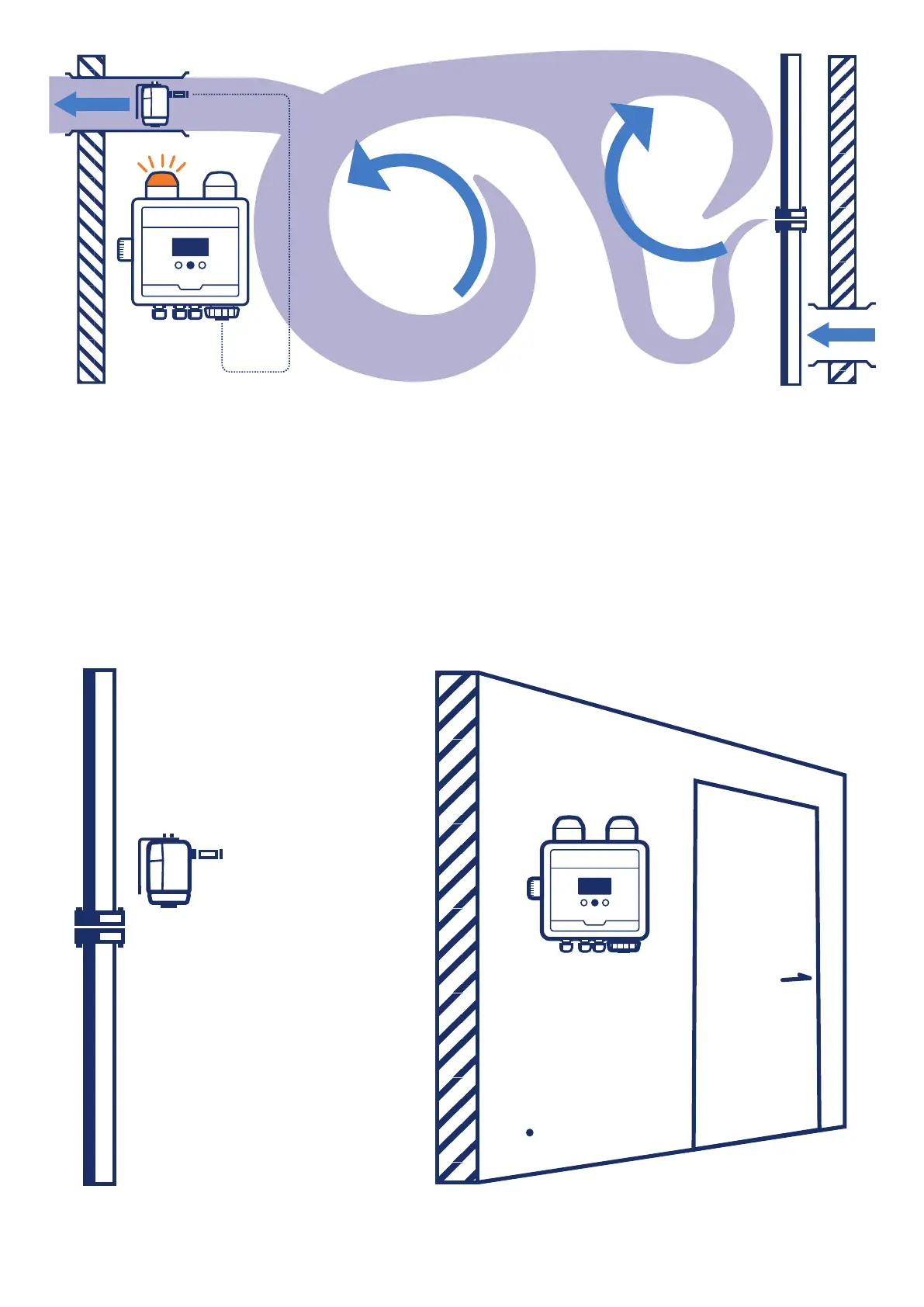

In spaces with forced ventilation, it may be sufficient
under some conditions to test for gases at the exhaust
air vent. (See image above.)
These instructions apply to all versions of the Dräger
PointGard 3000. The maximum cable length between the
Dräger PointGard 3000 device and the remote sensor is
30 metres.
The remote sensor enables you to use the Dräger
PointGard 3000 to monitor concentrations of hazardous
gases in the correct location inside any space. It also
lets you test for hazardous gas concentrations before
entering confined spaces. In that case, the remote
sensor is installed inside the confined space and the
PointGard 3000 is mounted outside the space.
(See image below.)
55 ppm
0 ppm
4 | Whitepaper Positionierung des PointGards

Dräger PointGard Specifications

General

Power Supply	24 VDC
Sensor Type	Electrochemical, Infrared, Catalytic
Output Signal	4-20 mA, Relay
Enclosure	Aluminum
Approvals	ATEX, IECEx
Detection Principle	Electrochemical, Infrared Absorption
Detection Range	Depends on target gas
Battery Life	N/A (Requires external power)
Dimensions	Varies by model
Weight	Varies depending on the model
Protection Class	IP66
Target Gas	Various (Combustible gases, toxic gases, and oxygen)
