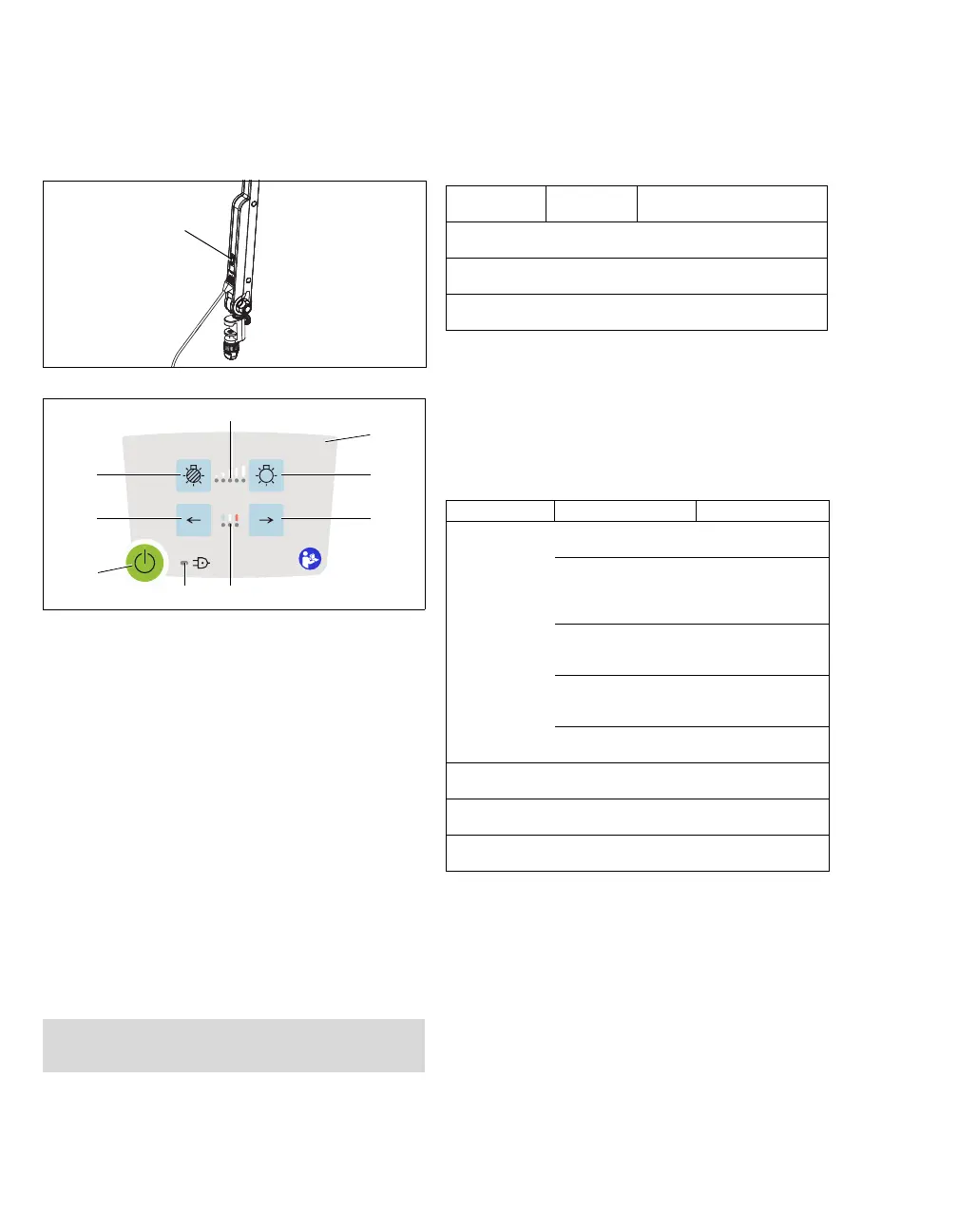

16 Instructions for use VarioLux
Switching the light on and off
Switching on the light
1 Turn the on/off switch (F) to "I".
 After switching on the light using the on/off switch (F), an
automatic self-test will be performed. Some signal lights (N)
(O) will flash for a short time during this test.
 After the self-test, the indicator light (J) lights up in green.
2 Switch on the light by pressing the key (M) on the control panel
(H) at the light head.
Switching off the light
 Press the button (M) on the control panel (H) on the lamp
head.
The light is in standby mode.
 Turn the on/off switch (F) to "O".
The light is disconnected from the mains power supply.
Adjusting the illuminance
1 Adjust the illuminance by pressing the keys (K) in dimming
increments of
20% to a value between 6500 lx and 30000 lx.
 The selected illuminance is indicated by the signal lights (N).
– The illuminance setting when switching on the light
corresponds to the last set illuminance before switching off the
light.
Setting the color temperature
1 Press the keys (L) to select the required color according to the
following table:
 The selected color is indicated by the signal lights (O).
– The color temperature setting when switching on the light
corresponds to the last set color temperature before switching
off the light.
Troubleshooting
Fault – Cause – Remedy
027024
NOTE
Dirt on the glass panel reduces the illuminance.
Keep the glass panel clean by cleaning it regularly.
F
H
J
M
K
L
K
L
N
O
Color Color tem-
perature
Application area
(recommendation)
Blue
(cold white)
4700 K - Detecting individual vessels
White
(neutral white)
4100 K - General examinations
Red
(warm white)
3500 K - Skin examinations
- Wound examinations
Fault Cause Remedy
Indicator light (J)
does not light up.
The on/off switch (F) is
switched off.
Switch on the on/off
switch (F).
The power cable (E) is
not connected to the
power cable connec-
tion (D).
Connect the power
cable (E) to the power
cable connection (D).
The power cable (E) is
not connected to the
mains power supply.
Connect the power
cable (E) to the mains
power supply.
Mains power is not
available.
Have mains power
checked by service
personnel.
Light is faulty. Contact DrägerSer-
vice.
Lamp does not
light up.
The key (M) on the light
head is set to 'off'.
Set the key (M) on the
light head to 'on'.
Joint is loose. The rotary knob (A)
cannot be tightened.
Contact DrägerSer-
vice.
Joint at light head
is loose.
The adjusting screw
(G) is loose.
Contact DrägerSer-
vice.
