Instructions for use VarioLux 15
English

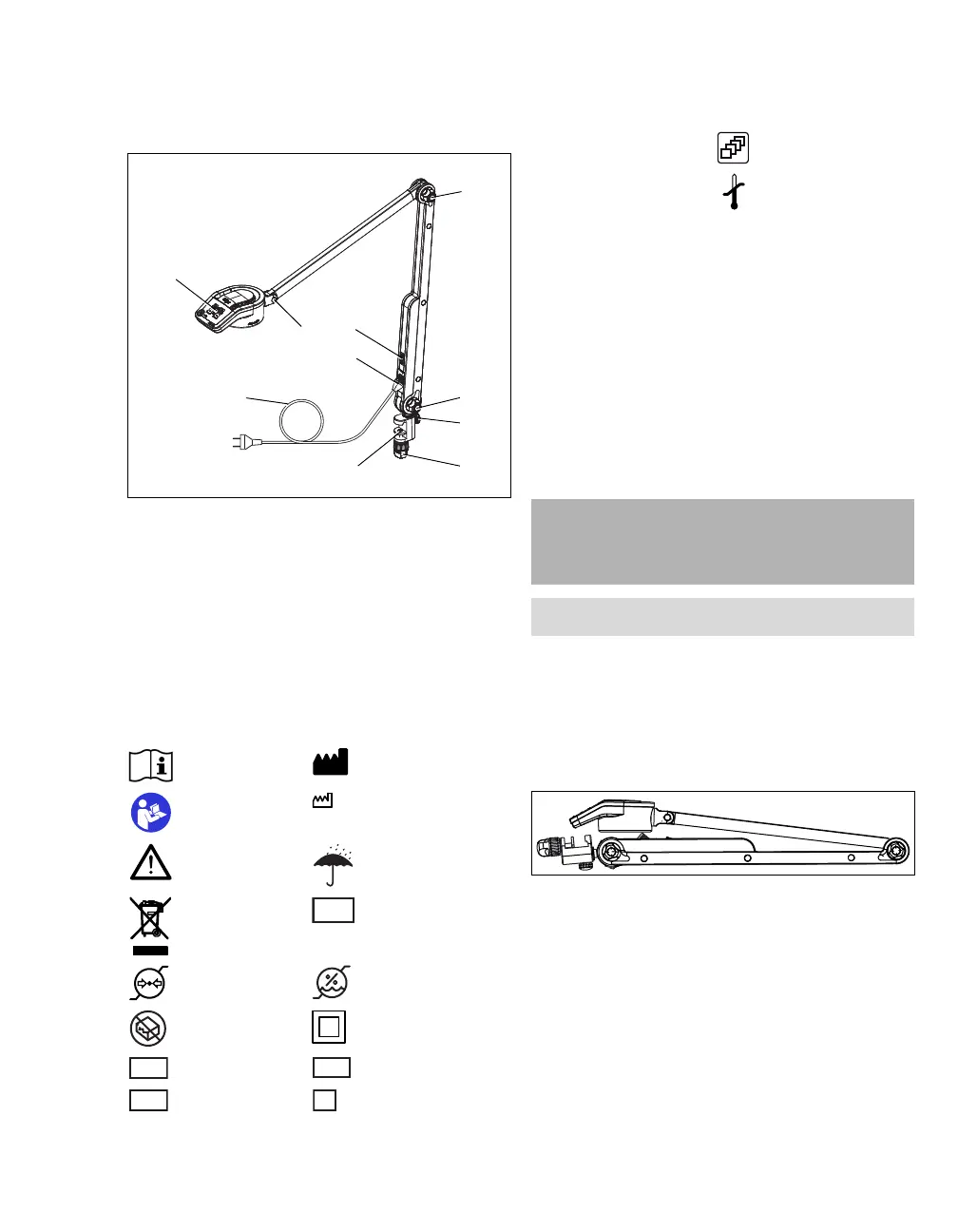

Overview
Scope of delivery
– VarioLux examination light
– Rail clamp
– Power cable
Symbols
Assembly and preparation
1 Fasten the rail clamp (C) to the rail.
2 Insert the light into the rail clamp (C) and fasten it with the
fixation screw (B).
3 Check that the mains power supply matches the nominal
voltage indicated on the rating plate.
4 Connect the power cable (E) to the power cable connection
(D) of the light.
5 Connect the mains plug to a mains power socket.
Operation
Positioning the light
1 To bring the light into the required position, loosen the
adjusting knob (A) by rotating it counterclockwise.
2 Position the examination light as required. Tighten the
adjusting knob (A) by rotating it clockwise.
Transport position of the light
Recommended position for intrahospital transport:
020
A Adjusting knob B Fastening screw
C Rail clamp D Power cable connection
E Power cable F On/off switch
G Adjusting screw H Control panel
Consult instructions
for use
Manufacturer
Warning! Strictly fol-
low these Instruc-
tions for Use
Date of manufacture
Caution Protect from moisture
WEEE marking The product is a medical
device (CE conformity as-
sessment procedure)
Ambient pressure Relative humidity
Do not use if pack-
age is damaged
Protection class II
Batch number Part number
Serial number Revision index
XXXX
LOT
SN
RI
O Device off Quantity
I Device on Storage temperature
CAUTION
Risk of personal injury and property damage
The end positions of the arm system may become damaged.
When positioning the light, be careful not to pull the arm system
forcefully beyond the end positions.
NOTE
Secure the hinged arms when loosening the adjusting knob (A).
