90 46 235 | POe | 067 | UUU-LSL-DW | Global Marketing ST | Printed in Germany |
chlorine free - ecological | subject to modification!

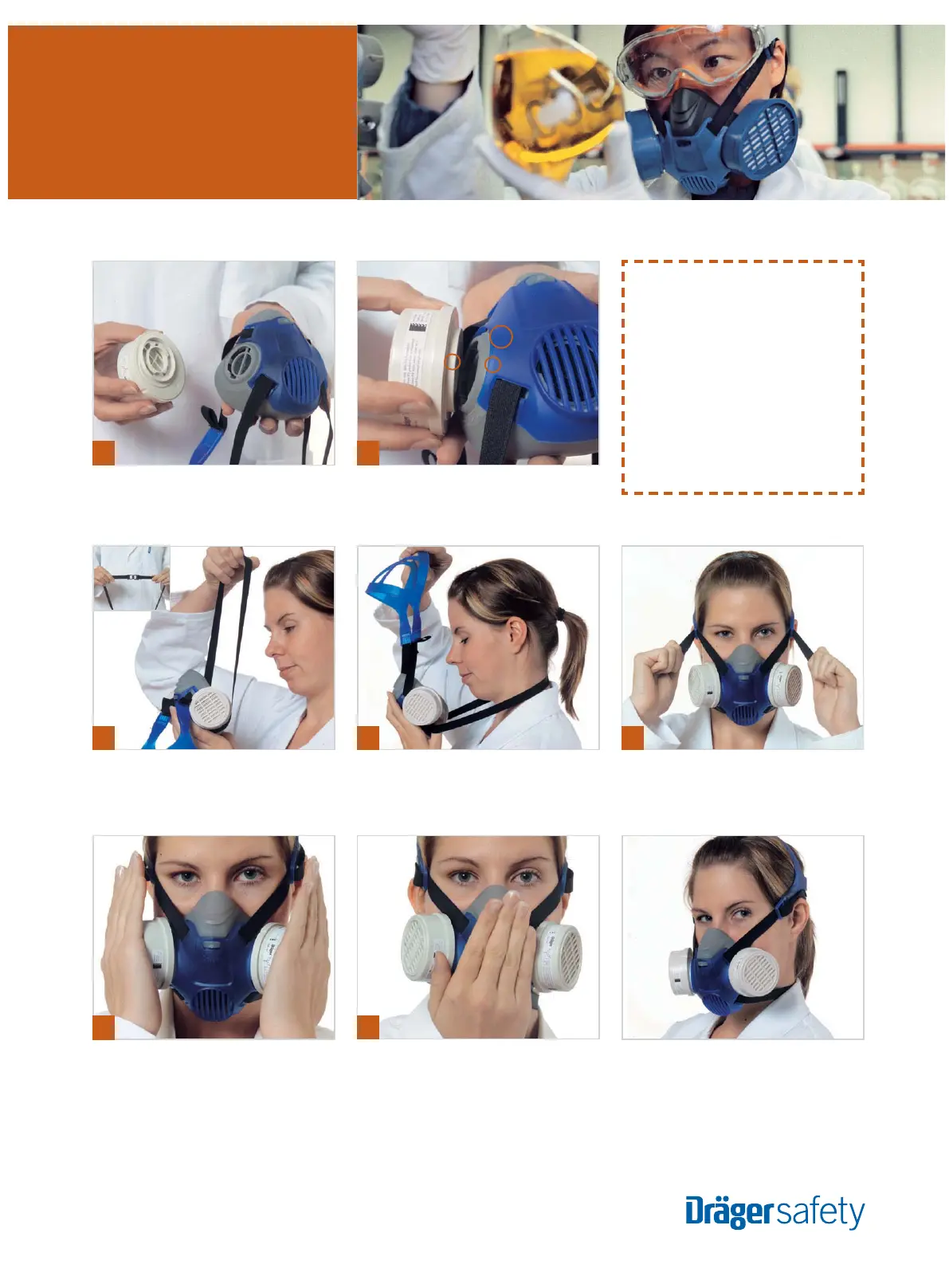

Attach the bayonet filters. The filter and mask body
are marked to help you.
Turn the filter in the direction of the arrows.
Position facepiece over the mouth and nose and
pull the head cradle over the head.
Pull the straps uniformily until the half-mask fits
securely and comfortably against your face. If
necessary readjust the straps.
Positve pressure test: Seal the exhalation valve of
half mask and exhale. The half mask will inflate
slightly. If the exhaled air leaks out of the mask,
readjust the face piece and adjust the straps or use
a different mask size. Repeat test until a successful
seal check is met.
Place bottom straps over your head. With the
Dräger X-plore 3500 first connect the hooks on
the neck strap (inset figure).
Negative pressure test: Seal both respiratory fil-
ters with your hands and breathe in until a negative
pressure (suction) is generated. Hold your breath
for a moment. The negative pressure should be
maintained. If not readjust the face piece and adjust
the straps or use a different size of mask. Repeat
test until a successful seal check is met.
PREPARATION AND FILTER ATTACHMENT
DONNING THE MASK
PERFORMING SEAL CHECKS: BEFORE EVERY USE!
www.draeger.com
1 2
4
5
ST-8257-2006
ST-82-52-2006
Dräger
X-plore 3300/3500
Dual Filter Half-Masks
ST-8267-2006
7
ST-8287-2006
3
ST-8258-2006
6
ST-8284-2006
ST-8241-2006
ST-8291-2006
ST-8279-2006
Ready for use.
ST-735-2002
Warning: Beards in the sealing area of the
mask can cause leaks. Always make sure
the mask forms a tight seal and the filter is
attached prior to entering a hazardous
atmosphere.
This poster is not a replacement for reading
and understanding the instructions for use for
the subject mask and respective filter cartridge,
both of which must be read before using either
item! Failure to do so could result in sickness
or death!
For further assistance concerning proper use,
ask your supervisor or call your local Dräger
organization at +49 451 882-0.
