Single Phase

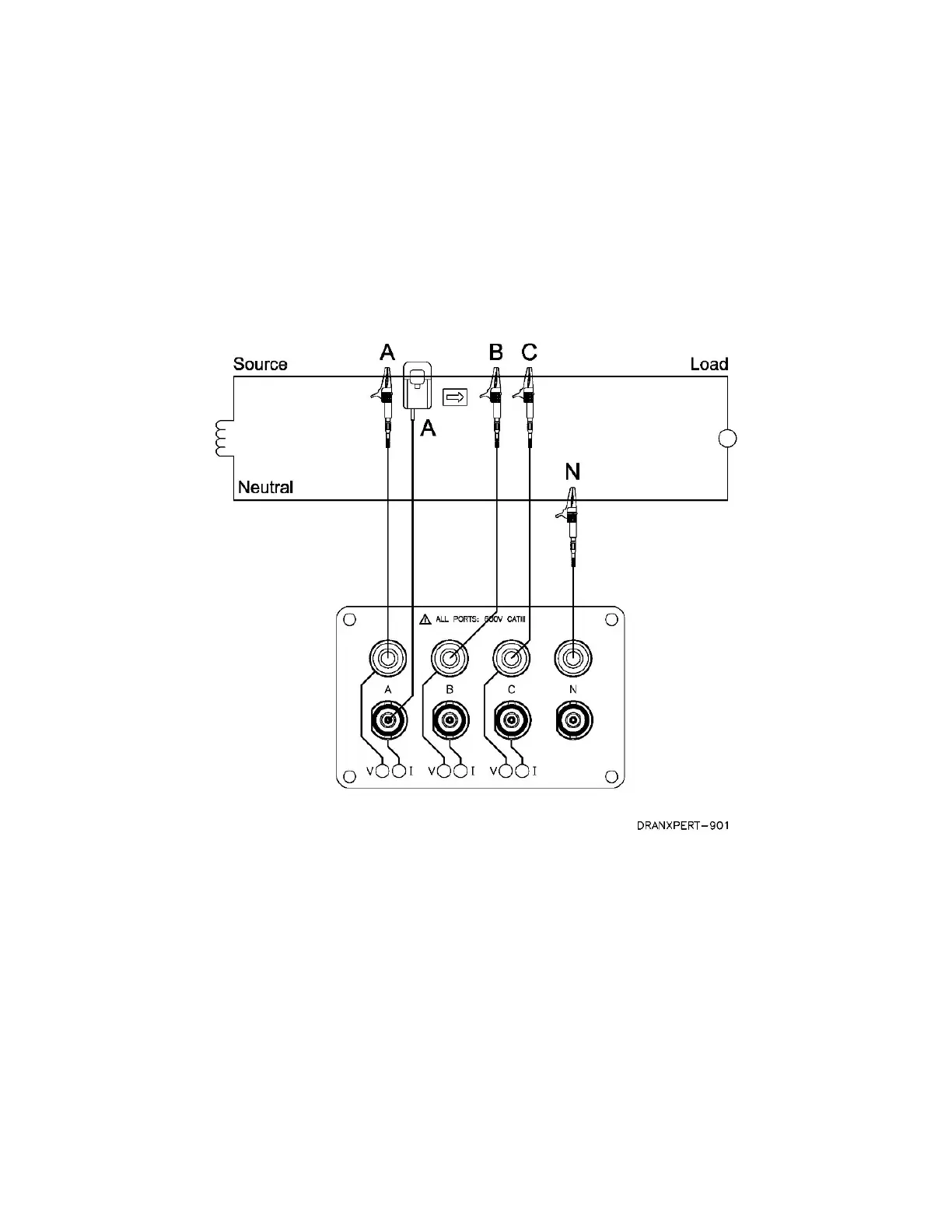

When making single phase measurements, use channel A as shown
below. The Neutral is chosen as the reference for measurement
purposes. You may optionally measure the Neutral current by connecting
a current probe to the Neutral conductor and to the N channel current
input.
NOTE Be sure to connect the current probes with the arrow
pointing towards the load or an erroneous power reading
will result.
