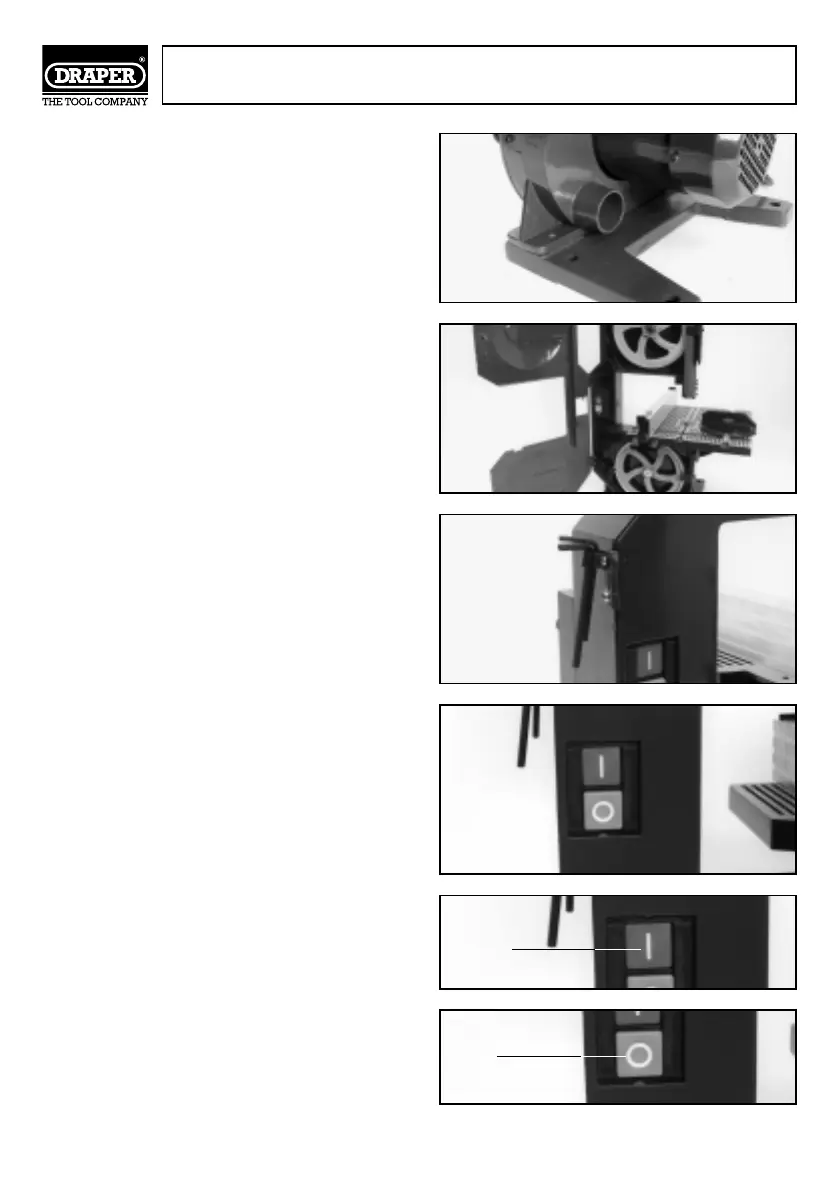

GETTING TO KNOW YOUR BANDSAW cont’d
7. SAWDUST EXTRACTION OUTLET
Draper Tools recommends the bandsaw is
connected to a dust extractor which will provide
fast and efficient removal of sawdust from your
machine. The dust extractor maybe used
continuously or intermittently depending upon
your requirements. Fig.8.
8. COVER HINGES
Allows the front cover to be opened allowing the
user to make adjustments to the bandsaw. Fig.9.
(With the power off and plug removed).
9. HEXAGON WRENCH HOLDER
A convenient storage point for the hexagon
wrenches that are used to adjust the blade guide
set screw, etc. Fig.10.
10. NO VOLT SWITCH
The Bandsaw is fitted with a no volt switch. In the
event of a power supply failure, the bandsaw will
have to be manually re-started. Fig.11.
To switch the bandsaw ‘ON’ push the button
marked ✤✌ see Fig.12.
To switch the bandsaw ‘OFF’ push the button
marked ✸✌ see Fig.13.
Fig.13.
✲✌
✸✌
