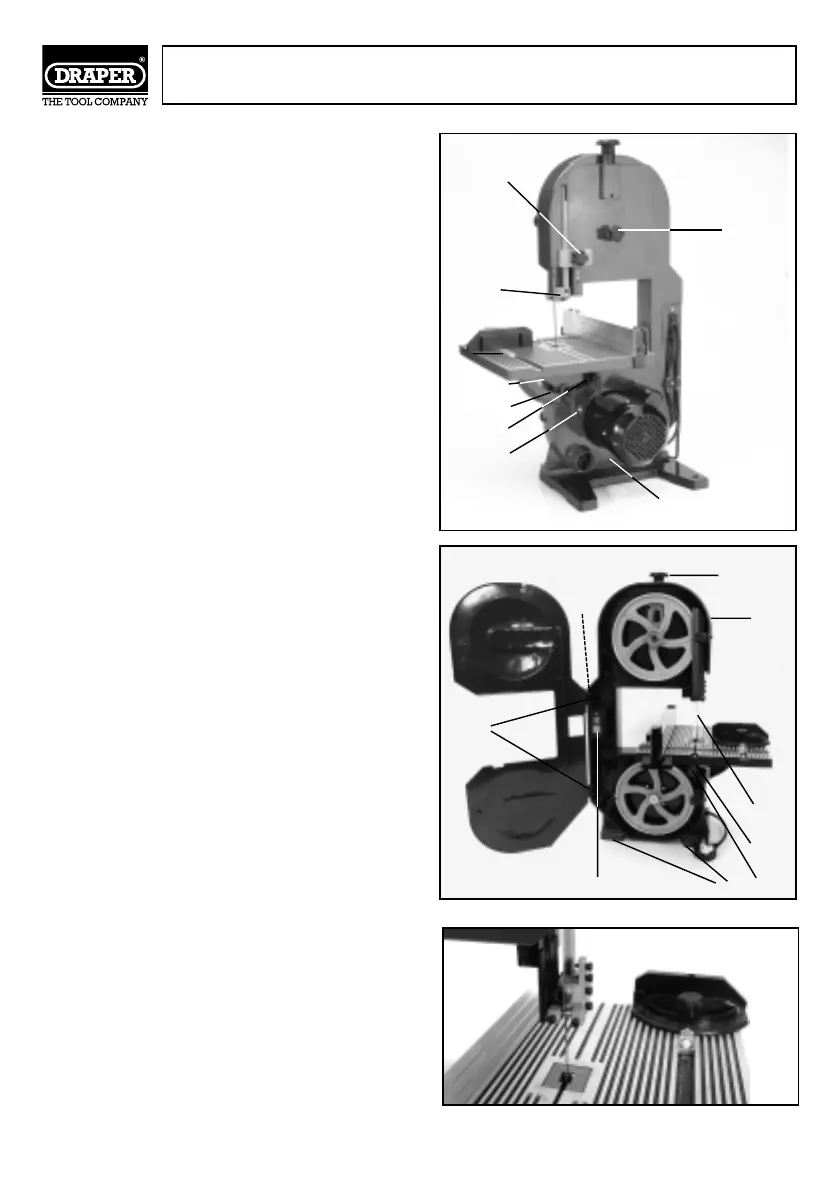

GETTING TO KNOW YOUR BANDSAW
- 9 -
1. Blade guides.
2. Upper slide locking knob.
3. Work table locking knobs.
4. Bevel scale.
5. Bevel indicator.
6. Table bracket.
7. Tracking adjustment knob.
8. Table.
9. Tension adjustment knob.
10. Housing.
11. Blade guard.
12. Blade.
13. Feet.
14. No volt switch.
15. Sawdust extraction outlet.
16. Cover hinges.
17. Wrench holder.
1. BLADE GUIDES
Supports the blade and keeps it from twisting
during the cutting operation. They will require
adjustment when a blade is changed or replaced.
Fig.2.
✕✚✌
✕✛✌
✢✌
✕✔✌
✕✕✌
✕✖✌
✕✗✌
✕✘✌
✕✙✌
✖✌
✕✌
✛✌
✜✌
✚✌
✘✌
✙✌
✗✌
✕✌
Fig.2.
