Draytek Vigor2866ac User Manual

22
4
4
.
.
2
2
.
.
3
3
P
P
P
P
P
P
o
o
A
A
c
c
o
o
n
n
n
n
e
e
c
c
t
t
i
i
o
o
n
n
w
w
i
i
t
t
h
h
A
A
D
D
S
S
L
L
/
/
A
A
D
D
S
S
L
L
2
2
+
+

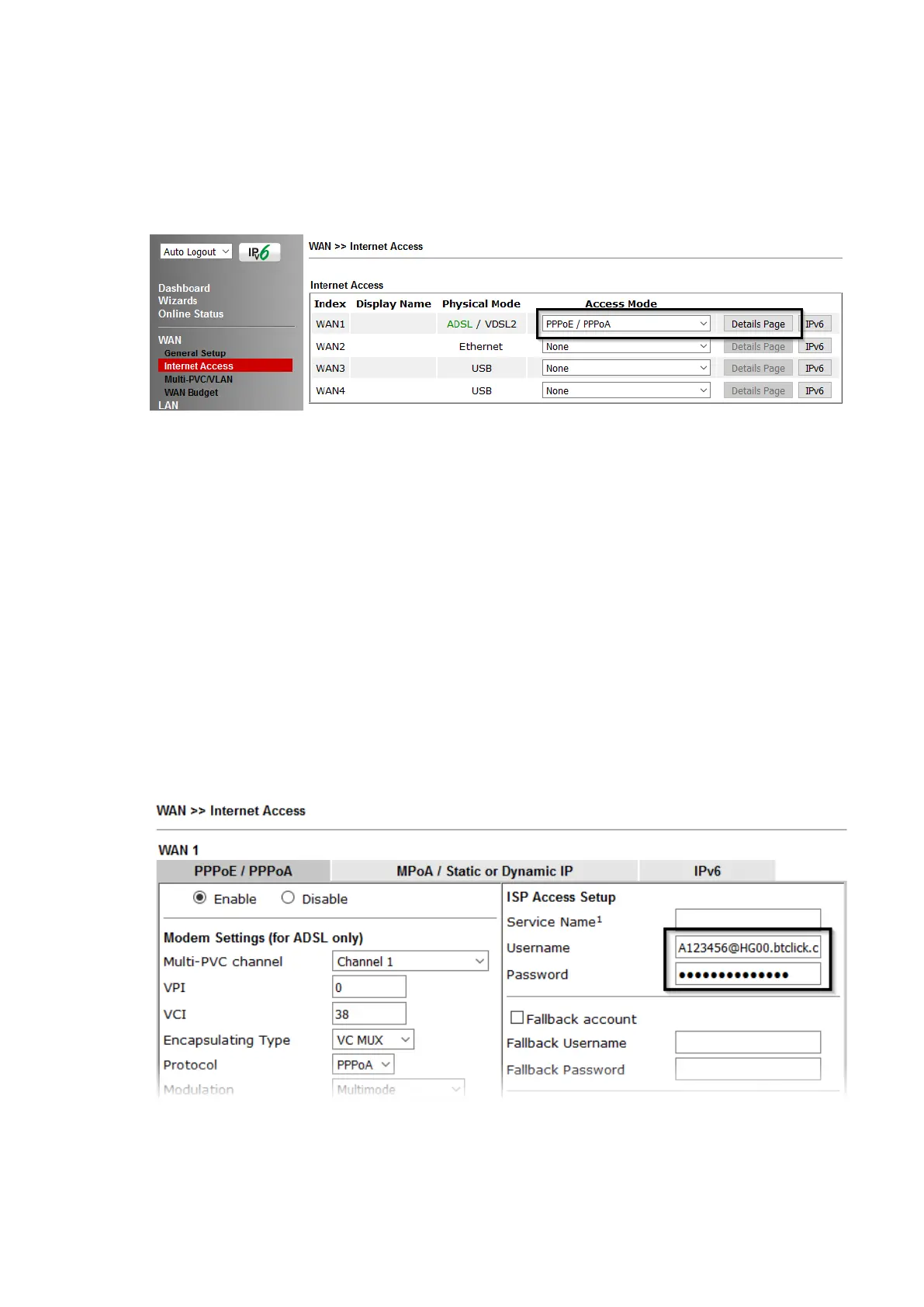

1. Go to [WAN] > [Internet Access]
Firstly set the WAN1 Access Mode to PPPoE / PPPoA, then click the Details
Page button to proceed:
2. On the PPPoE / PPPoA settings tab:
The details for the VPI and VCI settings for ADSL should be correct for UK usage,
with 0 and 38 being the defaults. In most cases, it will not be necessary to
change these.
The Modulation setting can be left on its default of Multimode which will
auto-detect the correct ADSL type to use.
Select the Enable radio button at the top of the page to ensure that the PPPoE
interface is enabled.
Input the username into the Username field and password in the Password field,
as required.
The Service Name does not need to be specified.
If your ISP has provided a static IP address, that can be specified by setting the
Fixed IP setting to Yes and entering the IP in the Fixed IP Address field.
Click OK on this page to apply the changes and the router will then prompt to
restart. Click to restart the router.

Draytek Vigor2866ac Specifications

General

Brand	Draytek
Model	Vigor2866ac
Category	Network Router
Language	English
