This connection method will typically be used with a modem such as the Vigor
130 VDSL2 modem, which passes through the PPPoE connection from the ISP to
the router.

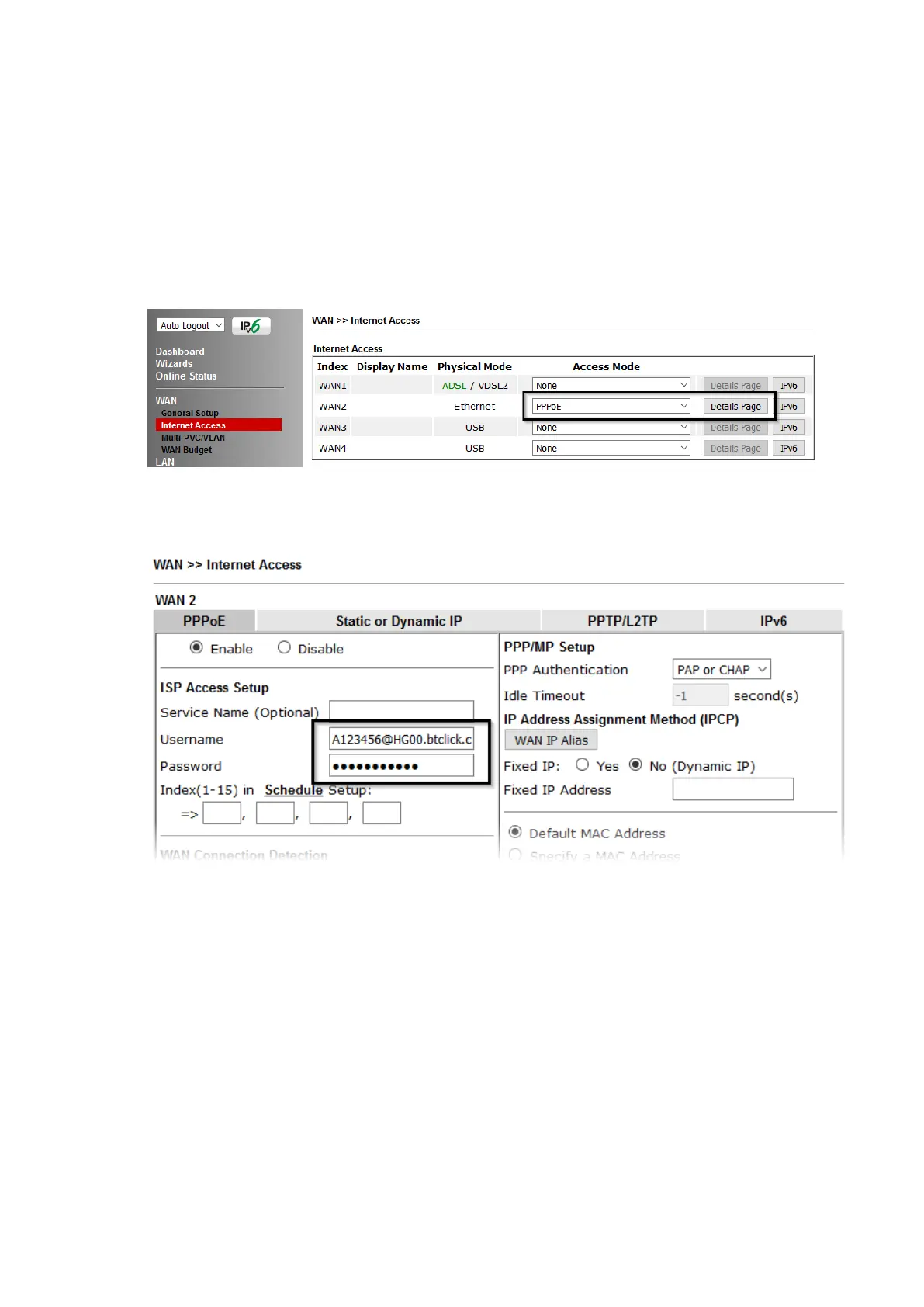

1. Go to [WAN] > [Internet Access]
Firstly set the WAN2 Access Mode to PPPoE, then click the Details Page
button to proceed:
2. In the PPPoE settings tab:
Select the Enable radio button at the top of the page to ensure that the PPPoE
interface is enabled.
Input the username into the Username field and password in the Password field,
as required. The Service Name does not need to be specified.
If your ISP has provided a static IP address, that can be specified by setting the
Fixed IP setting to Yes and entering the IP in the Fixed IP Address field.
Click OK on that page to save the settings and the router will then prompt to
restart, allow it to restart to properly apply the changes.
Once the router has restarted, log back into the web interface and select
[Online Status] > [Physical connection], if it has connected, the relevant WAN
Interface status text will be in green along with an IP address which indicates
that the connection is active and ready for use.
