Vigor2955 User’s Guide
48
For WAN 1
WAN Selection In WAN 1, DMZ host can be specified with Private IP or Active
True IP. Choose the one you want.
Private IP Enter the private IP address of the DMZ host, or click Choose PC
to select one. It will be available when you choose Private IP as
the WAN interface.
MAC Address of the
True IP DMZ Host
Enter the MAC address of the DMZ host. It will be available
when you choose Active True IP as the WAN interface.

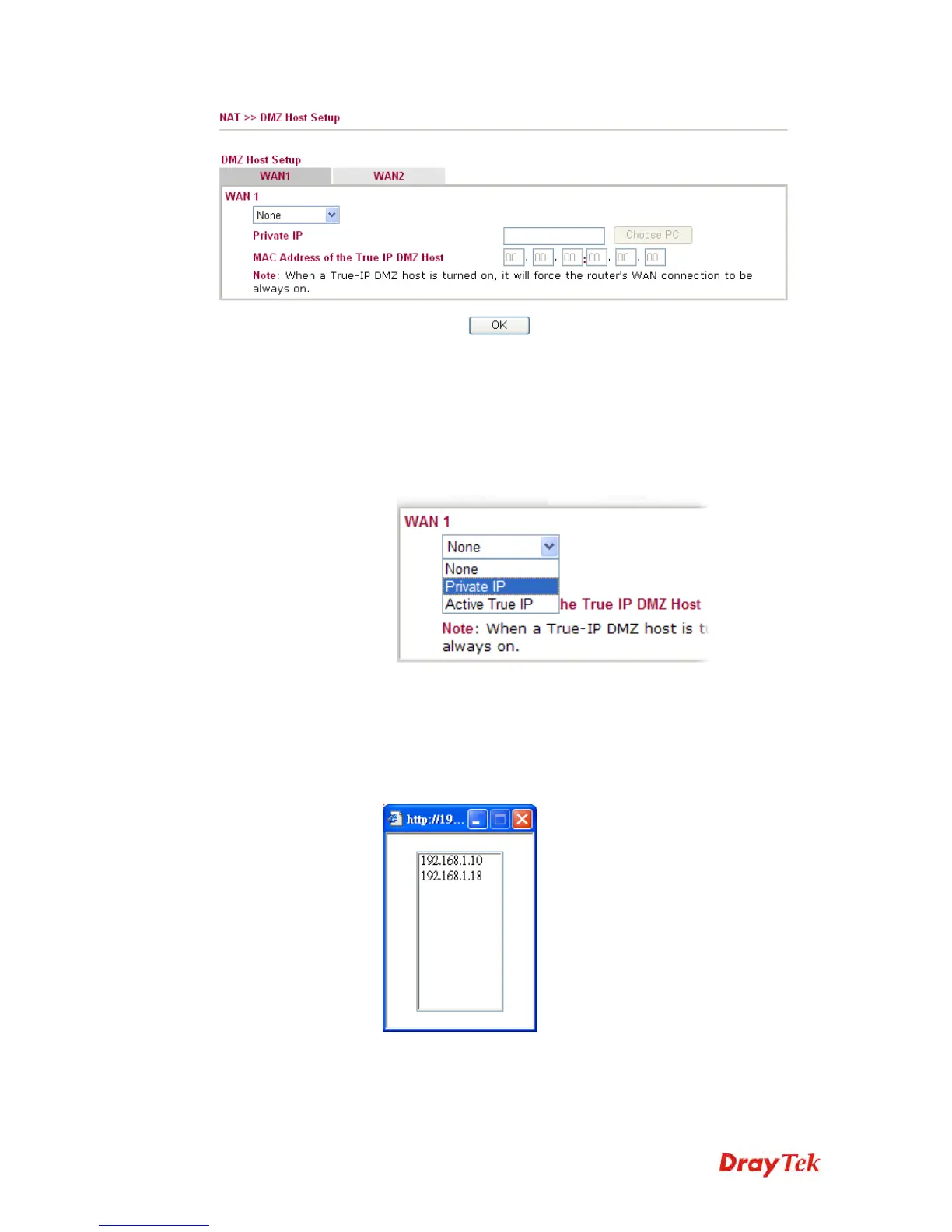

Choose PC Click this button and then a window will automatically pop up, as
depicted below. The window consists of a list of private IP
addresses of all hosts in your LAN network. Select one private IP
address in the list to be the DMZ host.
When you have selected one private IP from the above dialog, the
IP address will be shown on the following screen. Click OK to
To Next Page
