Draytek Vigor3900 Quick Start Guide

6
4
4
.
.
2
2
W
W
a
a
l
l
l
l
-
-
M
M
o
o
u
u
n
n
t
t
e
e
d
d
I
I
n
n
s
s
t
t
a
a
l
l
l
l
a
a
t
t
i
i
o
o
n
n

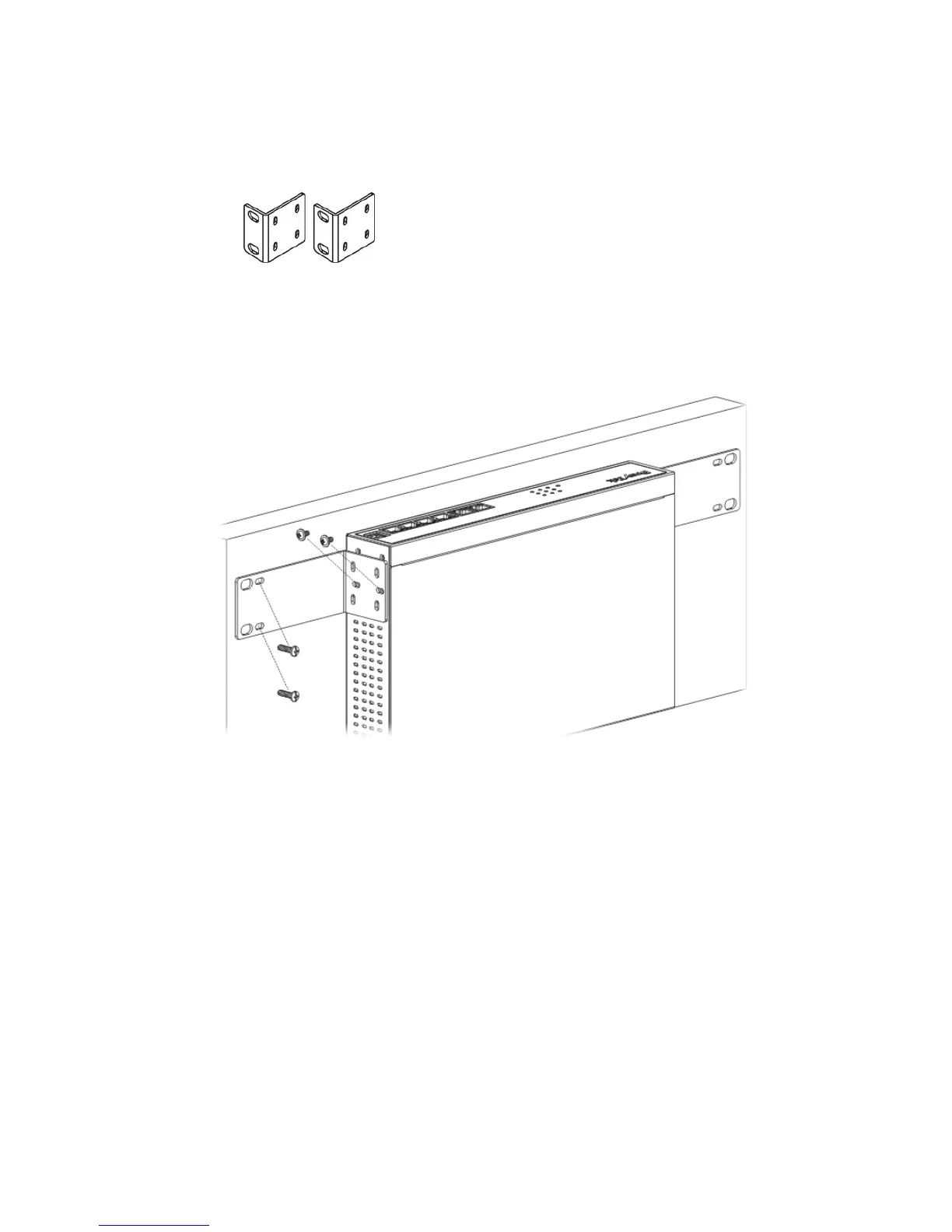

The Vigor3900 Series can be mounted on the wall by using standard
brackets shown below.
Choose a flat surface (on the wall) which is suitable for placing the router.
Make the screw holes on the short side of the bracket aim at the screw
holes on the router. Next, fasten both the bracket and the router with two
screws; and fasten both the wall and the bracket with another two screws.
Refer to the following figure.
Then, continue to fasten the screws on the other side of the router and the
wall with other screws.
When you finished about procedure, the router has been mounted on the
wall firmly.

Draytek Vigor3900 Specifications

General

Brand	Draytek
Model	Vigor3900
Category	Firewall
Language	English
