Draytek Vigor3900 Quick Start Guide

3
3
3
.
.
P
P
a
a
n
n
e
e
l
l
E
E
x
x
p
p
l
l
a
a
n
n
a
a
t
t
i
i
o
o
n
n
3
3
.
.
1
1
L
L
E
E
D
D

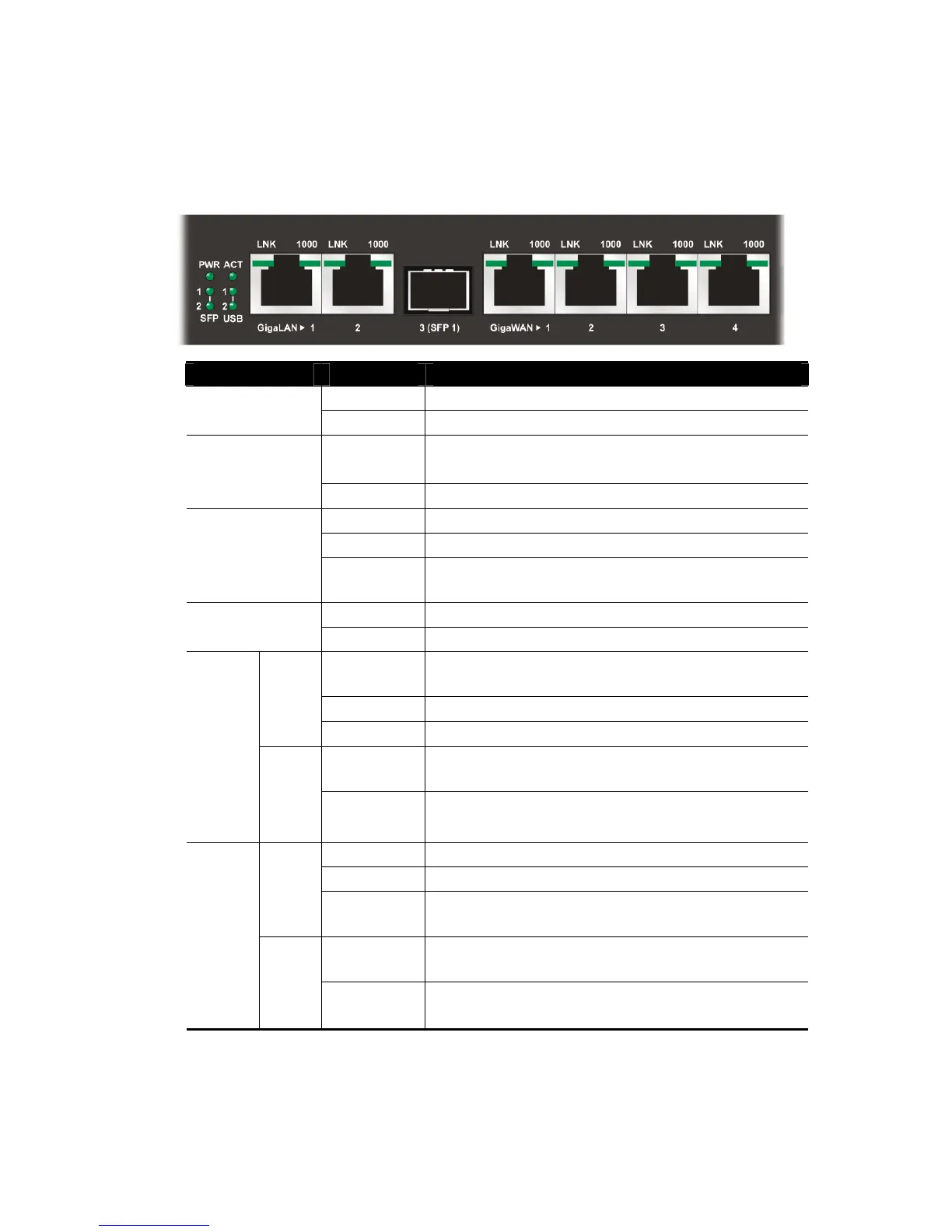

LED Status Explanation
On The router is powered on. PWR
Off The router is powered off.
On/
Blinking
The system is active. ACT
Off The system is hanged.
On The fiber connection is established.
Blinking
The data is transmitting.
SFP
Off
No fiber connection is established or the
system is hanged.
On The USB device is installed and ready. USB
Off
No USB device is installed.
On
The Ethernet link is established on
corresponding port.
Off
No Ethernet link is established.
LNK
Blinking
The data is transmitting.
On
It means that a normal 1000 Mbps connection
is through its corresponding port.
Giga
LAN1/2
1000
Off
It means that a normal 10/100 Mbps
connection is through its corresponding port.
On
The Ethernet link is established.
Off
No Ethernet link is established.
LNK
Blinking
The data transmission is done through the
corresponding port.
On
It means that a normal 1000Mbps connection
is through its corresponding port.
Giga
WAN1/
2/3/4
1000
Off
It means that a normal 10/100Mbps
connection is through its corresponding port.
