Draytek VigorAP 1062C User Manual

5
3
3
.
.
3
3
S
S
u
u
s
s
p
p
e
e
n
n
d
d
e
e
d
d
C
C
e
e
i
i
l
l
i
i
n
n
g
g
I
I
n
n
s
s
t
t
a
a
l
l
l
l
a
a
t
t
i
i
o
o
n
n
You cannot screw into ceiling tiles as they are weak and not suitable for bearing
loads. Your VigorAP is supplied with mounts (T-Rail brackets) which attach
directly to the metal grid („T-Rail‟) of your suspended ceiling.

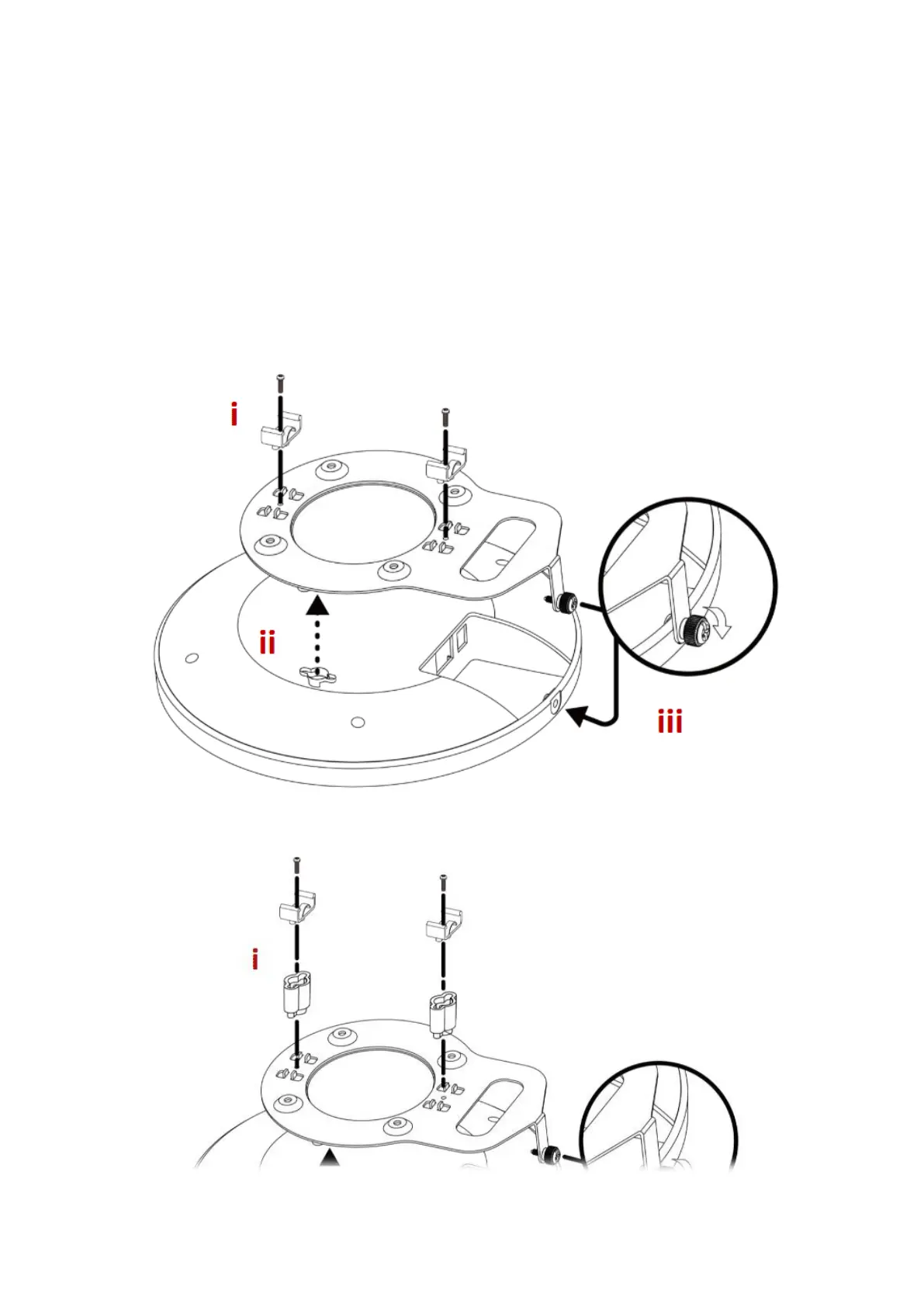

1. Choose the correct size T-Rail bracket from the bundled package.
2. Put the T-Rail brackets on the holes of the bottom side of the device. Fasten
them with suitable screws.
3. Secure the access point firmly in place using the included screw as shown in
step iii.
4. Clip the access point onto your T-Rail using the now attached T-Rail bracket.
5. If a larger gap is required between the ceiling and the VigorAP, use the
extension pieces to extend the height of the brackets.
Extension Piece
T-Rail Bracket

Draytek VigorAP 1062C Specifications

General

Brand	Draytek
Model	VigorAP 1062C
Category	Wireless Access Point
Language	English
