Installation
VigorAP can be installed under certain locations: wooden ceiling, plasterboard
ceilings, light-weighted steel frame and wall.
3
3
.
.
1
1
C
C
e
e
i
i
l
l
i
i
n
n
g
g
-
-
m
m
o
o
u
u
n
n
t
t
I
I
n
n
s
s
t
t
a
a
l
l
l
l
a
a
t
t
i
i
o
o
n
n
(
(
W
W
o
o
o
o
d
d
e
e
n
n
C
C
e
e
i
i
l
l
i
i
n
n
g
g
)
)
1. Place the bracket under the wooden ceiling and fasten two screws firmly (as
shown in Figure below, Step 1).
2. When the bracket is in place, fasten two screws firmly (as shown in Figure
below, Step 2) on the bottom of VigorAP.
3. Make the device just below the bracket. Put the screws installed in Step 2 on
the holes of the bracket (as shown in Figure below, Step 3).
4. Gently rotate the device to make screws slide into the notches of the bracket
and move forward till it is firmly fixed.

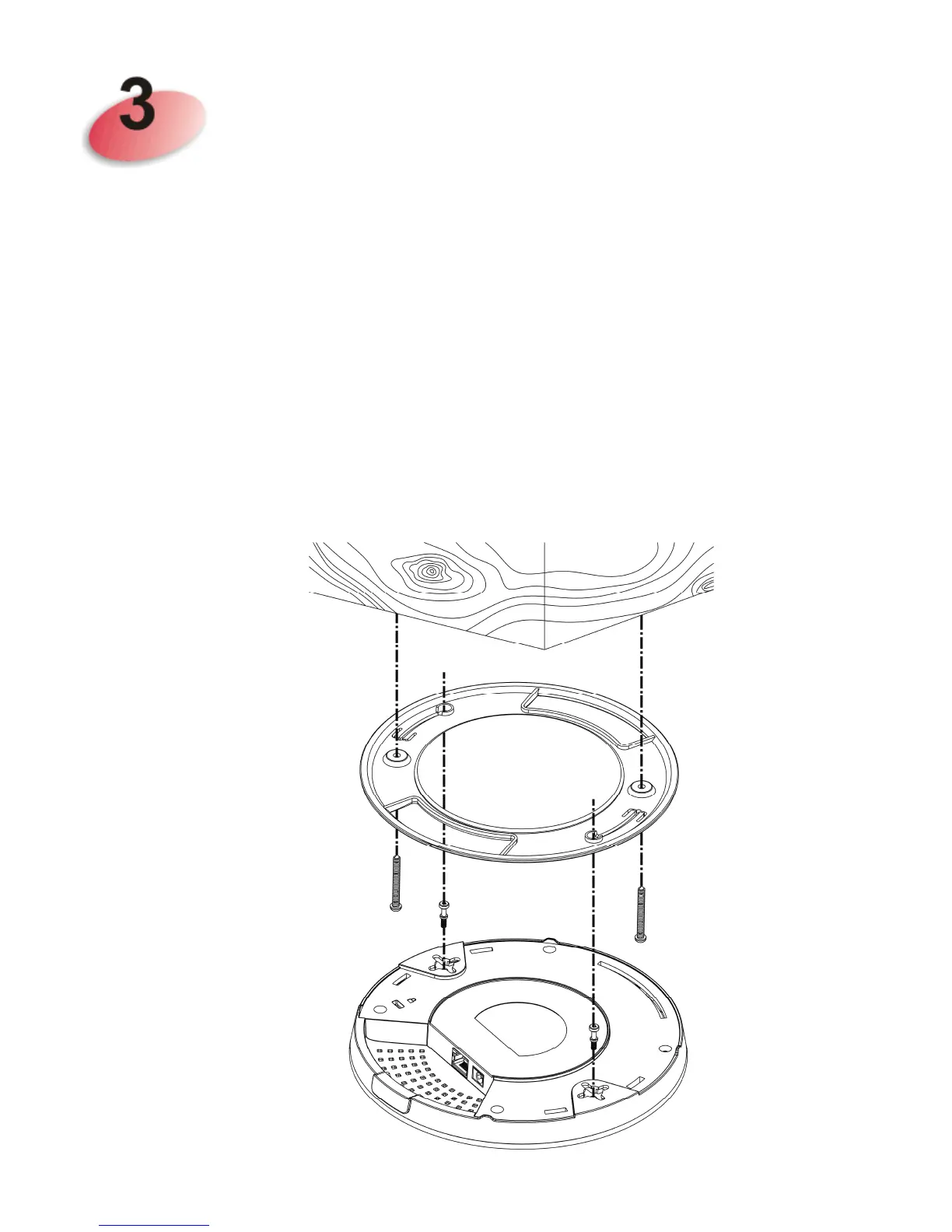

Step 1
Step 2
Bracket
Step 3
