For wall-mounting, the VigorAP has keyhole type mounting slots on the
underside. You can fit the AP at any axis (i.e. 12, 3, 6 or 9 O’Clock) to allow for
cable entry from the most convenient location if you are using side entry – note
the position of the side entry cable cutout.

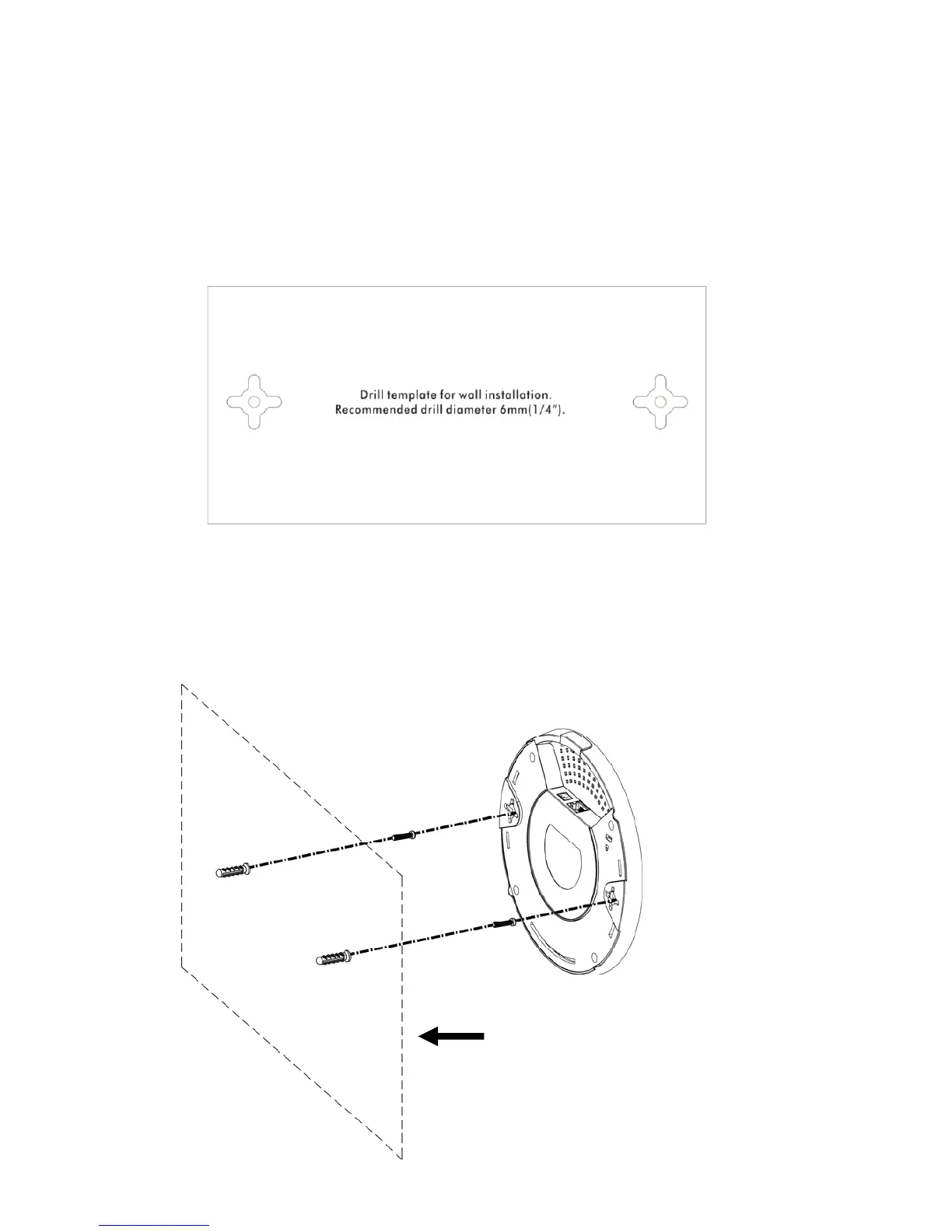

1. A template is provided on the VigorAP’s packaging box to enable you to
space the screws correctly on the wall.
2. Place the template on the wall and drill the holes according to the
recommended instruction.
3. Fit screws into the wall using the appropriate type of wall plug (as shown in
the ceiling section) but do not use the ceiling bracket – the VigorAP hangs
directly onto the screws.
Wall (wooden, concrete,
plasterboard or others)
