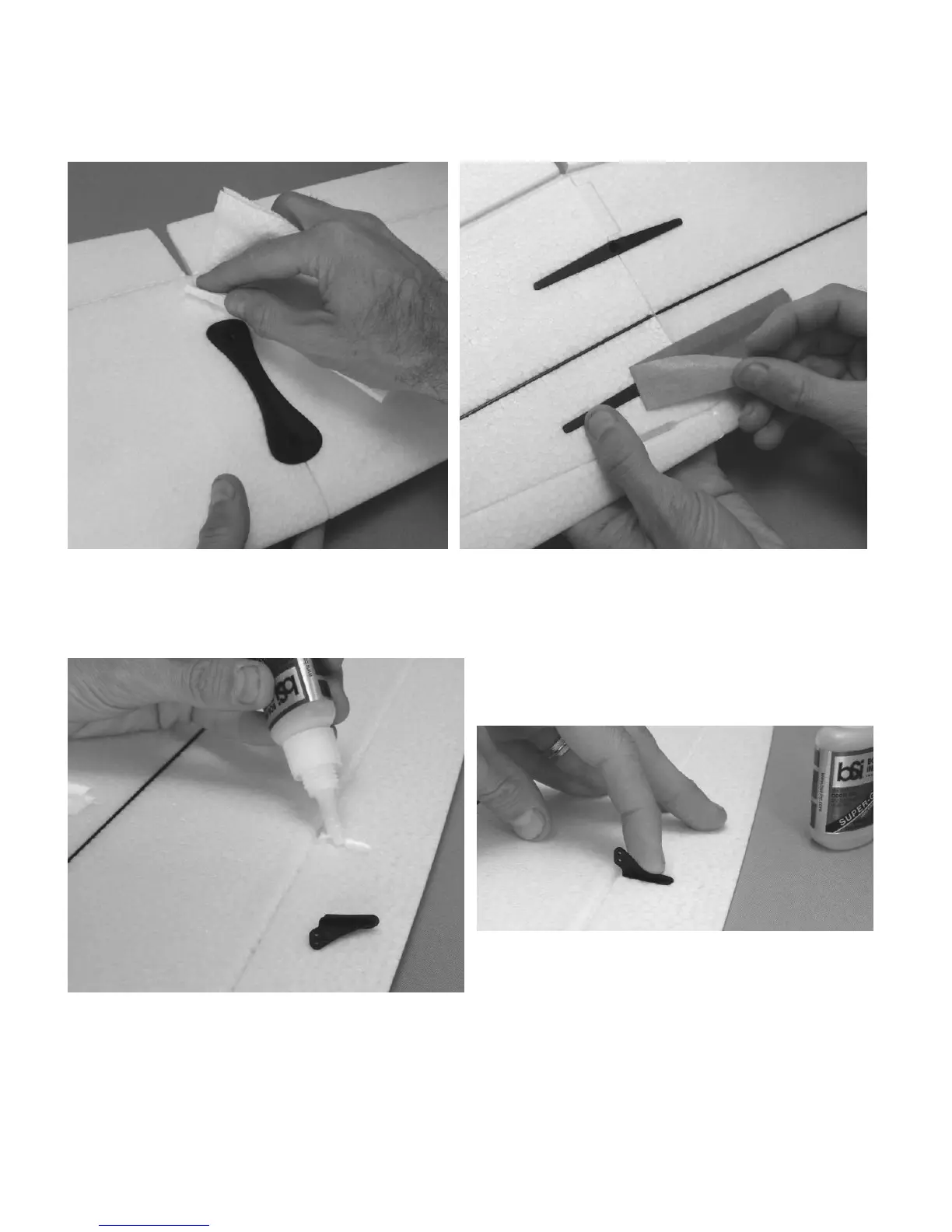

10. Wipe away excess glue along entire wing joint and around Center Wing Plate. Turn wing over and
carefully remove masking tape covering dihedral braces.
11. Locate control horn recess on underside of each aileron. NOTE: the two holes on each control horn should
face forward towards the molded servo pockets. As shown below, apply medium instant glue to recess and
press control horn in place, applying pressure for a few seconds until glue has set. Wipe away excess glue.
12. Before proceeding, ensure aileron servos are centered, labeled, and extensions are installed. Test fit aileron
servos in their appropriate molded pockets, with the servo arm oriented vertically and centered.
