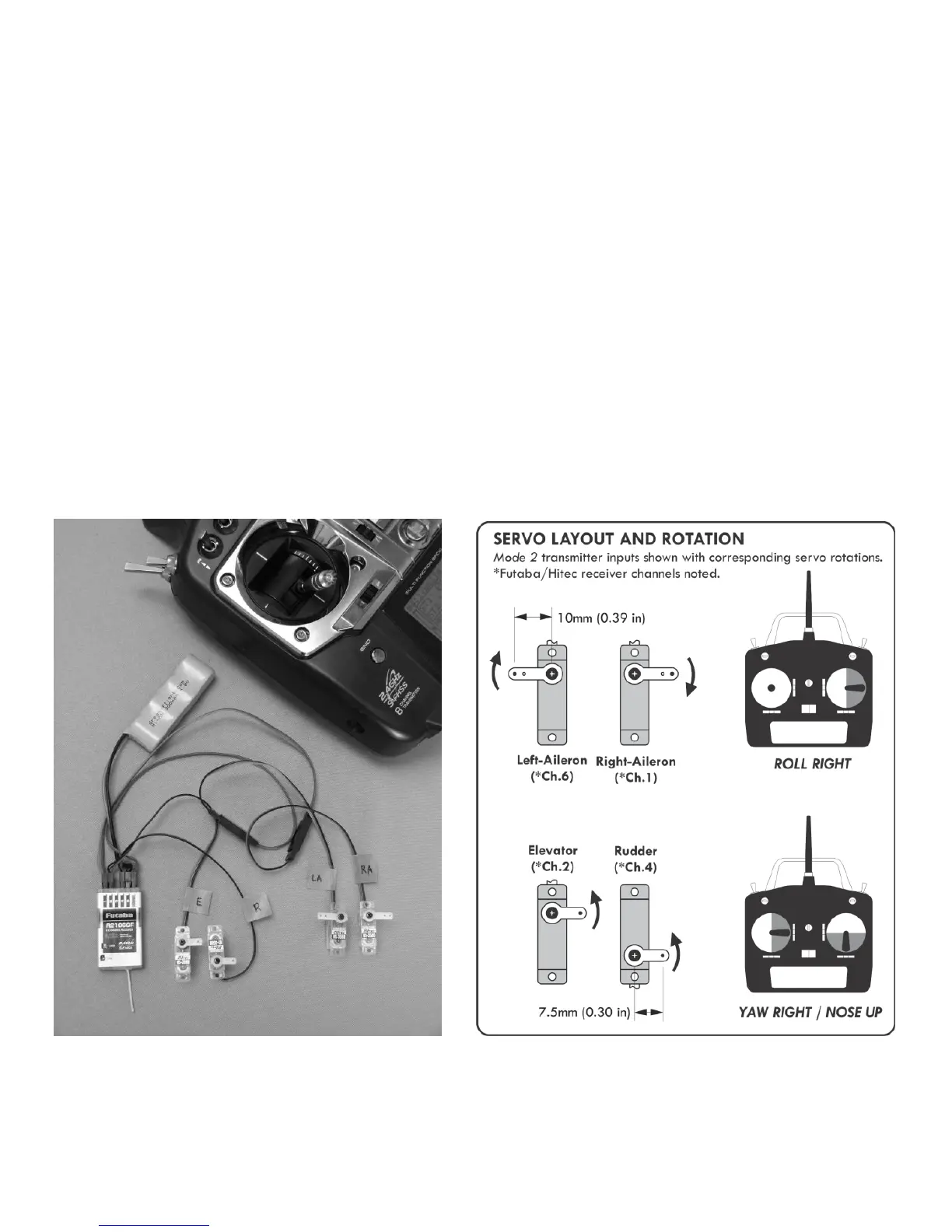

9. Arrange servos on table and attach shorter servo arms to elevator and rudder servos. Attach longer servo
arms to aileron servos. IMPORTANT: Servo arms must be installed in the orientations shown below to
ensure proper function.
10. Referring to graphic below, check for correct servo rotation direction. If needed, reverse servo directions
using transmitter.
11. If necessary, adjust sub-trims so servo arms are at 90 degrees as shown.
12. With a bit of tape, label each servo for future reference during installation (i.e. LA, RA, E, R).
13. Re-install four tiny screws to secure each servo arm.
14. Unplug servos from receiver and power down transmitter and receiver.
