Dreame R10 User Manual

17
EN

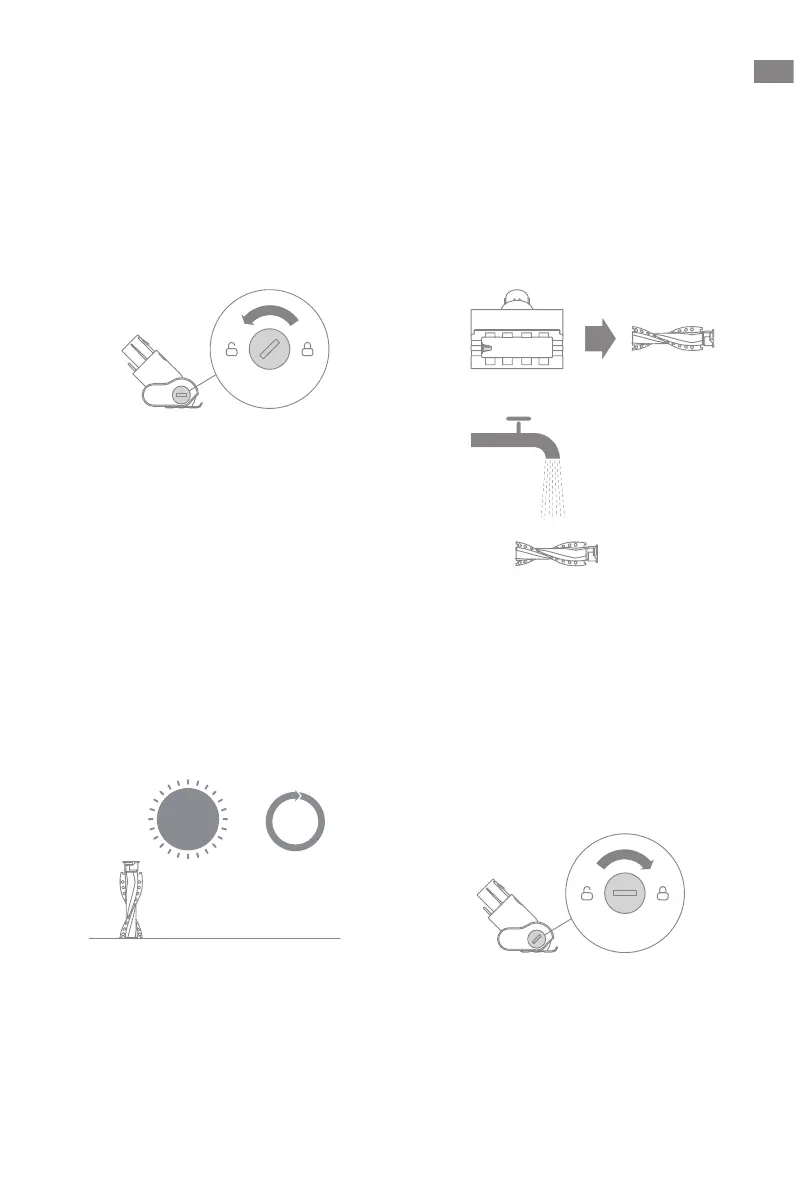

Cleaning the Motorized Mini-Brush
1. Use a coin as illustrated to rotate the lock
counterclockwise until you hear a click.
3. Stand the brush roller upright in a well-
ventilated area for at least 24 hours until
it is fully dry.
2. After unlocking the motorized mini-brush,
remove the brush roller, then rinse and
clean it.
4. Once the brush roller is dry, reinstall it by
following the disassembly steps in reverse.
12
6
111
57
210
48
39
24 hrs
Care&Maintenance

Dreame R10 Specifications

General

Cleaning type	Dry
Cleaning surfaces	Carpet, Hard floor
Vacuum air filtering	-
Product color	White
Dust container type	Bagless
Power source	Battery
Charging time	3.5 h
Suction power	120 AW
Battery voltage	- V
Battery capacity	2.5 Ah
Maximum input power	350 W
Brush tool	Yes

Weight and Dimensions

Weight	1650 g
