NOTE
If installing this shower door along with an inline panel, switch to the inline
panel manual at this point. If you’re installing the door only, continue to
the next step.
!
Fig 10

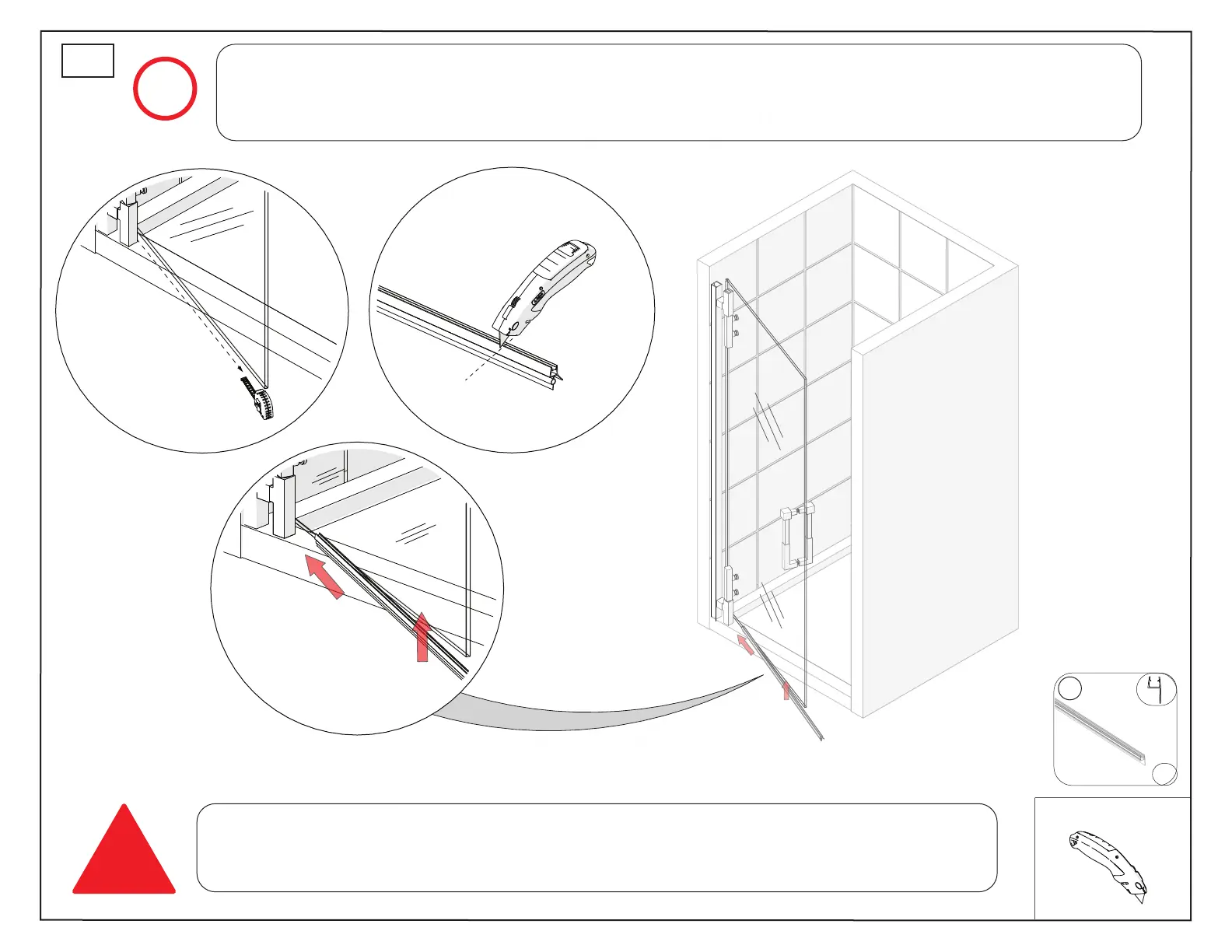

Measure the bottom of the Door Glass (#05) from the edge of the Vertical Vinyl Seal (#10) to the opposite
edge of the glass. Cut the Bottom Sweep (#19) to that length and install it on the bottom of the Door Glass
(#05), pushing it back and up until it rests against the Vertical Vinyl Seal and is flush with the opposite edge
of the glass. Fig 10
3
21
19
x1
10
To Next Page
