Model Specific Preparation
REQUIRED:
!
ASCEND Shower Door Manual Ver 1 022021 3
©2021 DreamLine
®
All Rights Reserved

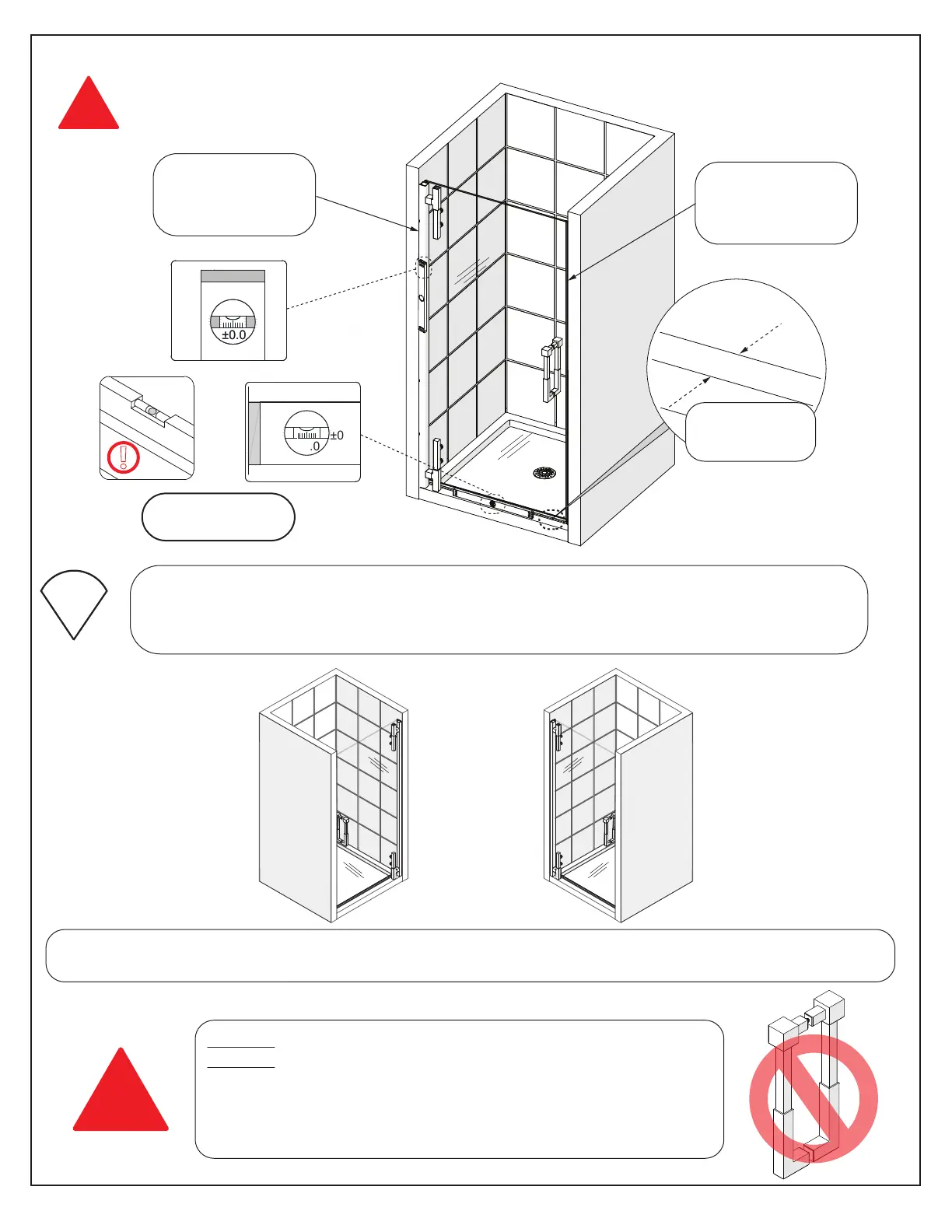

This door is reversible. The pivot hinges can be installed on either side of the shower,
and the Door Glass can be flipped for installation on either side of the shower opening.
The door glass has a ClearMax ™ coating on the inside only.
TIP
1/2” Out-of-Plumb
Adjustment on Pivot
Side; Verify threshold
and walls with a level
1/4” Maximum
Out-of-Plumb
Adjustment on Strike
side of door.
Threshold must be
level
!
2-3/8”
±
0
.0
±
0
.0
±
0
.0
minimum at
threshold and wall
surface required
!
DO NOT attach the handle to the door glass until instructed.
DO NOT attempt to use the handle to lift the door glass during
installation.
This may result in damage to the glass and/or serious injury.
Always use a professional grade glass suction cup and an
assistant.
Left-hand installation shown as example in this manual. For Right hand installation, start on the opposite
wall and follow the same installation steps.
