Jay Ottoman Bed - Assembly guide - Page 6
Spring Washer for M8 bolt
a
Flat Washer for M8 bolt
Spring Washer for M8 bolt Flat Washer for M8 bolt
b c
d x1
h x4
i x6
j x1
Allen Key for M8 bolt
Flanged lock-nuts M8
for gas-lift pistons
Nuts for M8 bolts
Spanner for M8 nut
g x2
Metal Connection Plates
Bolts (M8x30mm)
Fitting side rails (C&D) to
headboard & footboard (A&B)
e x6
b x12 c x18
Bolts (M8x50mm)
Fitting metal slat frame (I or M)
to gas-lift mechanisms
e
Bolts (M8x50mm) fitting
support block (p) to
side rail cross bar (G)
Cross head screwdriverTape measure
Tools required
m x5
b x5 c x5
Bolts (M8x25mm) for fitting
ottoman support bar
Flat washer for M8 bolts
O x1
Q x1
P x1
Spring washer for M8 bolts
Hardware needed for fixing ottoman support bar (O.S.B) to the slat frame
packed in the side rail carton, inside Pack 2 - hardware pack (C
)
Ottoman Support Bar
Fixed retaining bracket
- side rail
Parking bracket - slat frame
Double & King x28
Super King x30
Double & King x26
Double & King x1
Super King x2
Double & King x1
Super King x2
Double & King x29
Super King x32
f x6
Bolts (M8x20mm) for
fitting metal connection plates
(g) and cross bar (L) to metal
slat frame (I or M)
p
Support block
for side rail
cross bar (G).

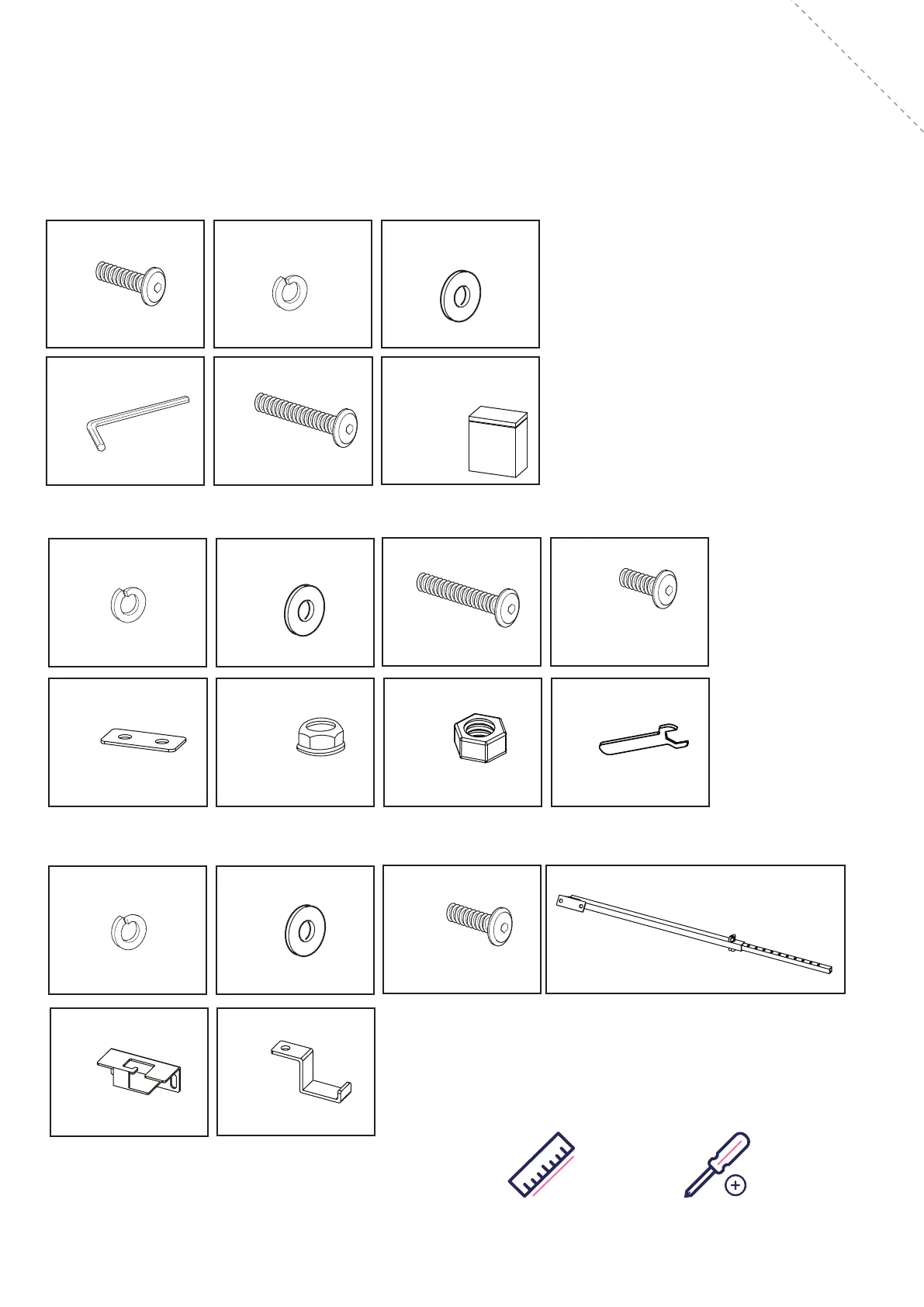

Fittings
Please check you have all the fittings listed below with your product:
Hardware needed for fixing side rails to headboard & footboard
Packed in side rail carton, inside Pack 2 - hardware pack (A)
Hardware needed for fixing metal slat frame
Packed in ottoman carton, inside Pack 3A - hardware pack (B)
