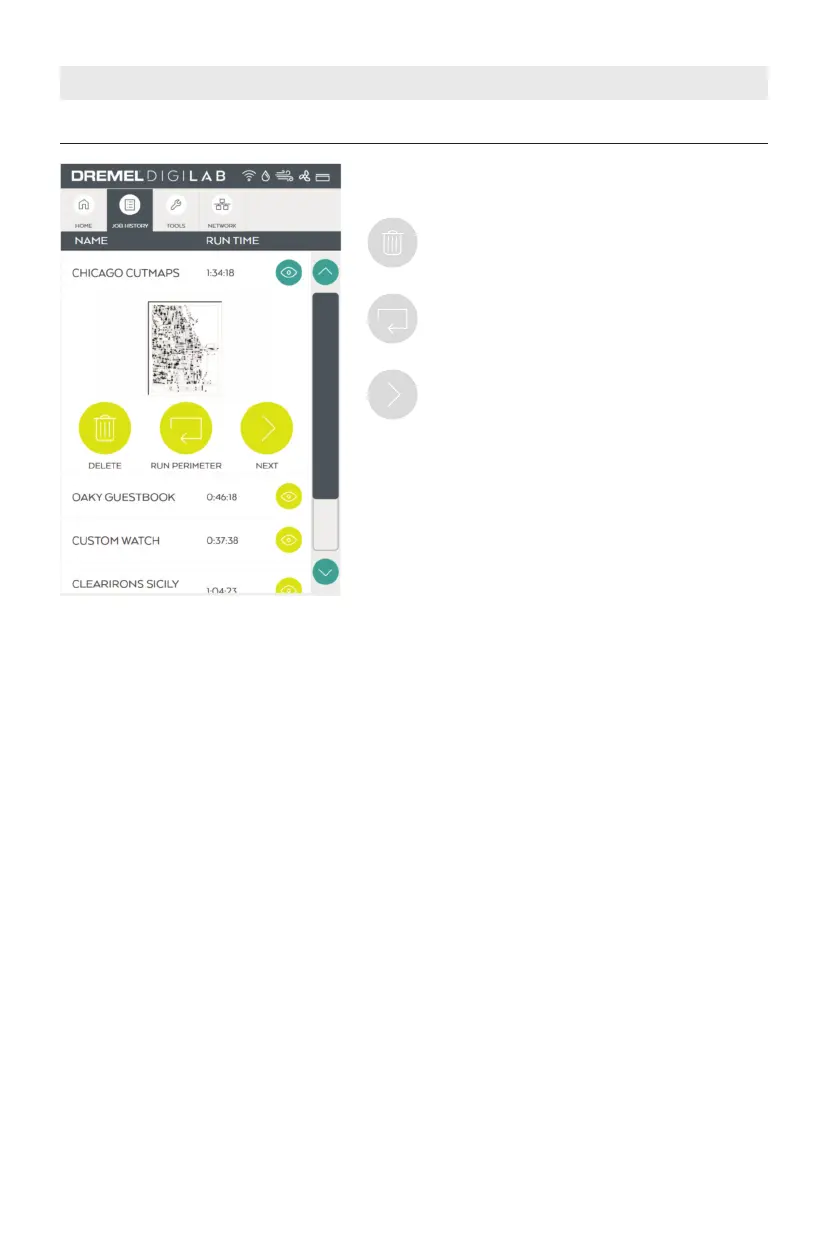

JOB HISTORY
LC
D
T
O
UC
H
S
C
RE
E
N
Th
is
s
cr
ee
n
di
sp
la
ys
o
pt
io
ns
f
or
th
e
J
ob
s
el
ect
ed
from the list.
DELETE
–
Delete
files
from
the
Job
History
list.
R
U
N
P
E
R
I
M
E
T
E
R
–
E
x
e
c
u
t
e
s
t
h
e
r
u
n
perimeter.
NEXT
–
Changes
the
text
to
LOADING.
The
Job will prepare to start.
Not
e:
If
a
j
ob
is
r
erun
,
the
syste
m
saf
ety
ch
eckl
ist
will appear (see page XX Operation Screens).
22
24
Table of Contents
Table of Contents
2
Safety
2
Safety Symbols
2
General Safety Warnings
3
Laser Cutter Safety Warnings
4
General Safety Warnings
4
Additional Safety Warnings
5
Symbols
6
FCC and IC Compliance
7
Information on Intellectual Property
7
Specifications
8
Specifications
9
Material Usage
10
Resources
11
Glossary of Terms
11
Introduction
13
Tools & Supplies Needed for Setup
13
Unpacking
14
Kit Contents
15
Getting to Know Your Laser Cutter
16
LCD Touch Screen
19
LCD Touch Screen
20
Laser Control Software
39
Setup
45
Locate & Cut Zip Ties
45
Install Honeycomb Sheet
46
Remove Camera Lens Cap
46
Attach Water Tubes
47
Attach Air Tube
48
Attach Hex Box™ Cord
49
Attach Exhaust Shroud
49
Exhaust Connection
50
Attach Power Cord
56
Test GFCI Unit
56
Turn on the Laser Cutter
57
Get Started
57
Fill Hex Box™ with Distilled Water
58
Connect a Computer to the Laser Cutter
59
Network Setups
60
Tests & Alignments
62
Mirror Alignment Overview
62
Tools & Supplies Needed for Tests & Alignments
62
Corner Mirror Alignment Test
63
Mirror Alignment Procedure
65
Corner Mirror Alignment Test
65
Tests & Alignments
69
Tube Guard Removal
70
Operating the Laser Cutter
71
Prohibited Uses & Restrictions
71
Create a Project
73
Maintenance
82
Shipping & Storage
85
Serviceable Parts
86
Firmware and Open Source Software
87
Dremel Limited Warranty
88
Other manuals for Dremel DIGILAB LC40
Operating And Safety Instructions
88 pages
4
Based on 1 rating
