PARTS IDENTIFICATION
OPERATING YOUR DEHUMIDIFIER
Set unit upright
NOTICE: If you transport an i-Series dehumidifier in a
horizontal position, set it upright and let it stand for at
least 30 minutes before you turn it on. When the
machine is horizontal, the oil from the compressor flows
into the refrigerant coils reducing the ability of the
dehumidifier to function. Letting the unit stand upright for
30 minutes allows the oil to flow back into the
compressor.
Set up drain hose
The i-Series condensate pump connects to a plastic
drainage hose that is located in the pocket on the back
of the unit. This hose is equipped with a quick-connect
fitting for quick attachment to the provided 40-ft. drain
hose. Unwrap the entire hose and place the unattached
end in a sink, drain, bucket or outside – anywhere that
water can drain out safely. If you use a bucket or other

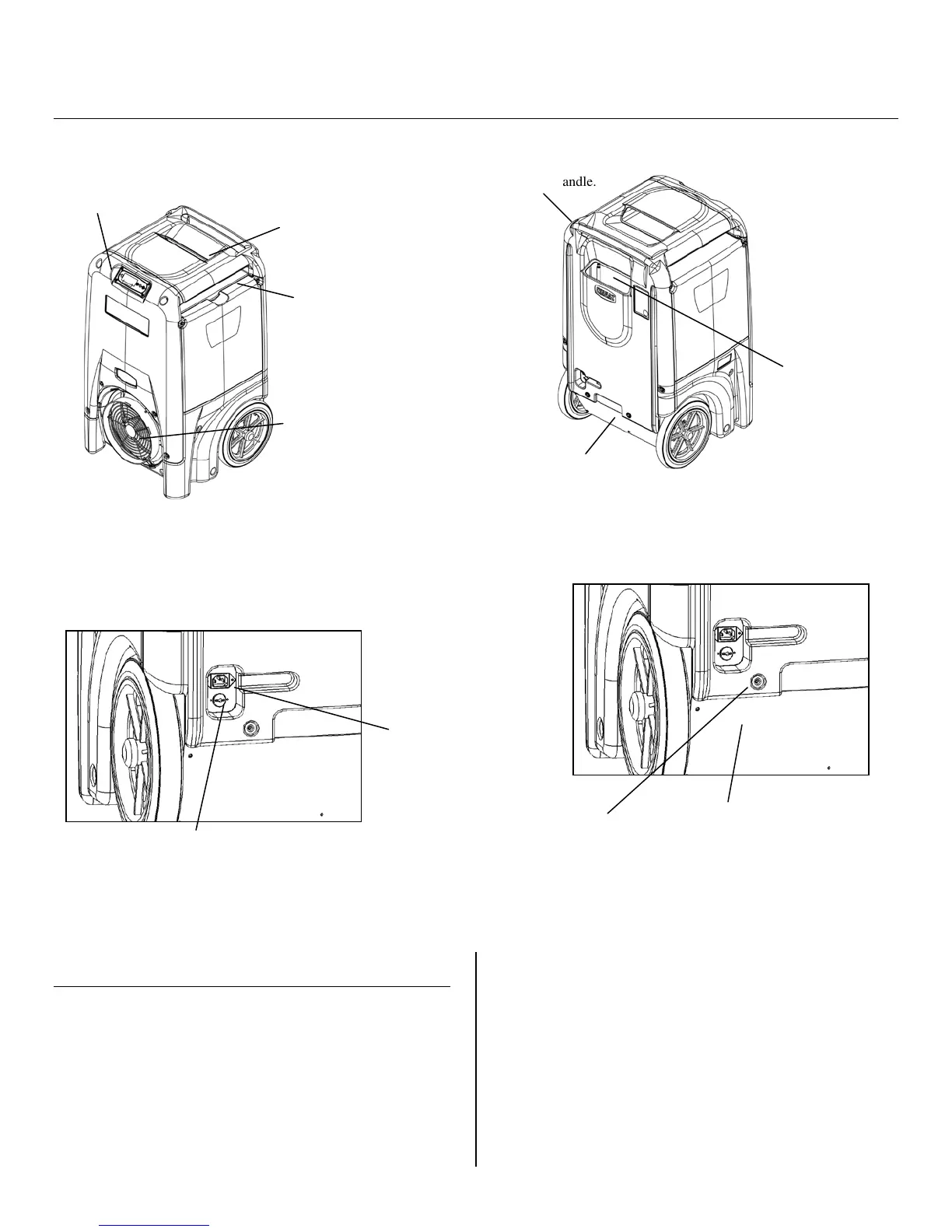

FIG. A: FRONT
FIG. C: POWER AND PUMP
ATTACHMENT POINTS
Control panel.
Molded pocket
for cord storage.
Humid air inlet
(both sides).
Process (dehumidified)
air outlet. May be used
with standard 12" rigid
or layflat ducting.
Power cord socket.
AA battery compartment. Provides
power to HygroTrac wireless
transmitter when unit is not plugged in.
Rugged rotomolded
housing resists dents
and scratches and is
easy to maintain.
FIG. B: REAR
Integrated handle.
Lower back panel. Remove
this panel to access the
pump for servicing.
Drain hose pocket.
Lower back panel. Remove the
five retaining screws to remove
pump for cleaning.
FIG. D: PUMP ACCESS PANEL
Bottom of back
polyethylene housing.
Remove two bolts to
remove pump for cleaning.
