PARTS IDENTIFICATION
OPERATING YOUR DEHUMIDIFIER
Set unit upright
NOTICE: Transporting or storing the unit in a
horizontal position is not recommended. When the
machine is placed in a horizontal position, the oil
from the compressor can flow into the refrigerant
coils and reduce the ability of the dehumidifier to
function and possibly damage the unit. If the unit
has been placed in a horizontal position, set it
upright and let it stand for at least 30 minutes before
turning it on.
Positioning a Dehumidifier
For best results, operate your dehumidifiers in an
enclosed area. Close all doors and windows that open to
the outside to maximize the unit’s water removal
efficiency. Place your dehumidifier away from
obstructions, and keep it away from anything that could
block airflow into and out of the unit. For more
information about creating an optimum drying
environment, contact your Dri-Eaz distributor.
Set up drain hose
The 7000XLi condensate pump connects to a plastic
drainage hose that is located in the pocket on the side of
the unit. This hose is equipped with a quick-connect
fitting for quick attachment to the provided 12 m drain
hose. Unwrap the entire hose and place the unattached
end in a sink, drain, bucket or outdoors – anywhere that
water can drain out safely. If you use a bucket or other
receptacle for water collection, check it regularly to
prevent overflows.
Integrated handle.
Folds for storage.

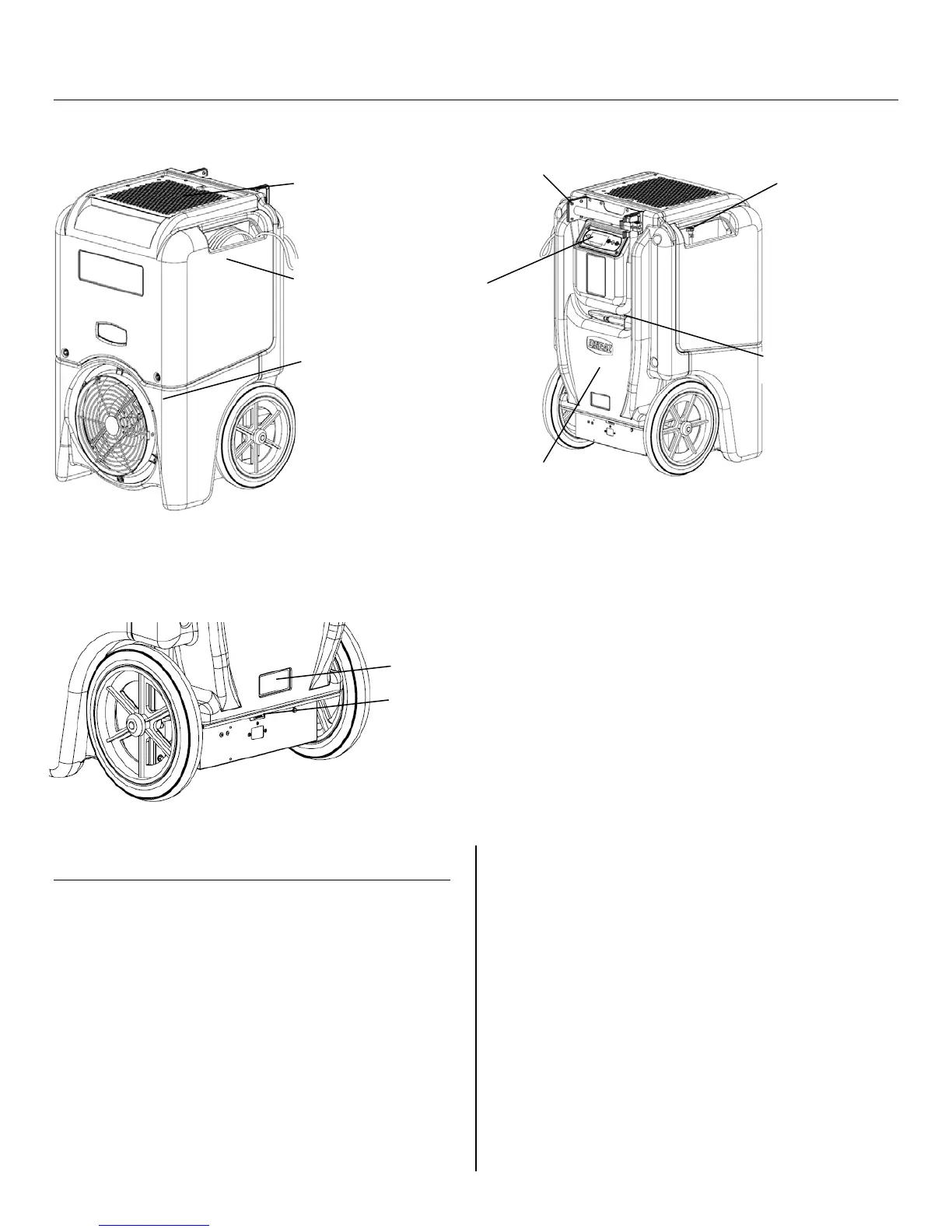

FIG. A: FRONT
FIG. C: PRODUCT LABEL
AND Kw HOUR METER
Molded pocket
for cord storage.
Humid air inlet.
3M™ HAF filter.
Process (dehumidified)
air outlet. May be used
with standard 12 in.
rigid or layflat ducting.
Drain hose pocket.
FIG. B: REAR
Back panel. Remove to
access the pump.
Control panel.
Drain hose location.
Product label and
serial number
Kw hour meter
