Heat exchange block.
HAF filter
Rear panel
Condenser (hot) coil
Evaporator (cold) coil
Cover
Electrical box.
Control panel
⅜ in. rear panel
base plate
fasteners (×5,
not shown)
⅜ in. rear panel
fasteners (×6)
⅜ in. rear panel
fasteners (×6)

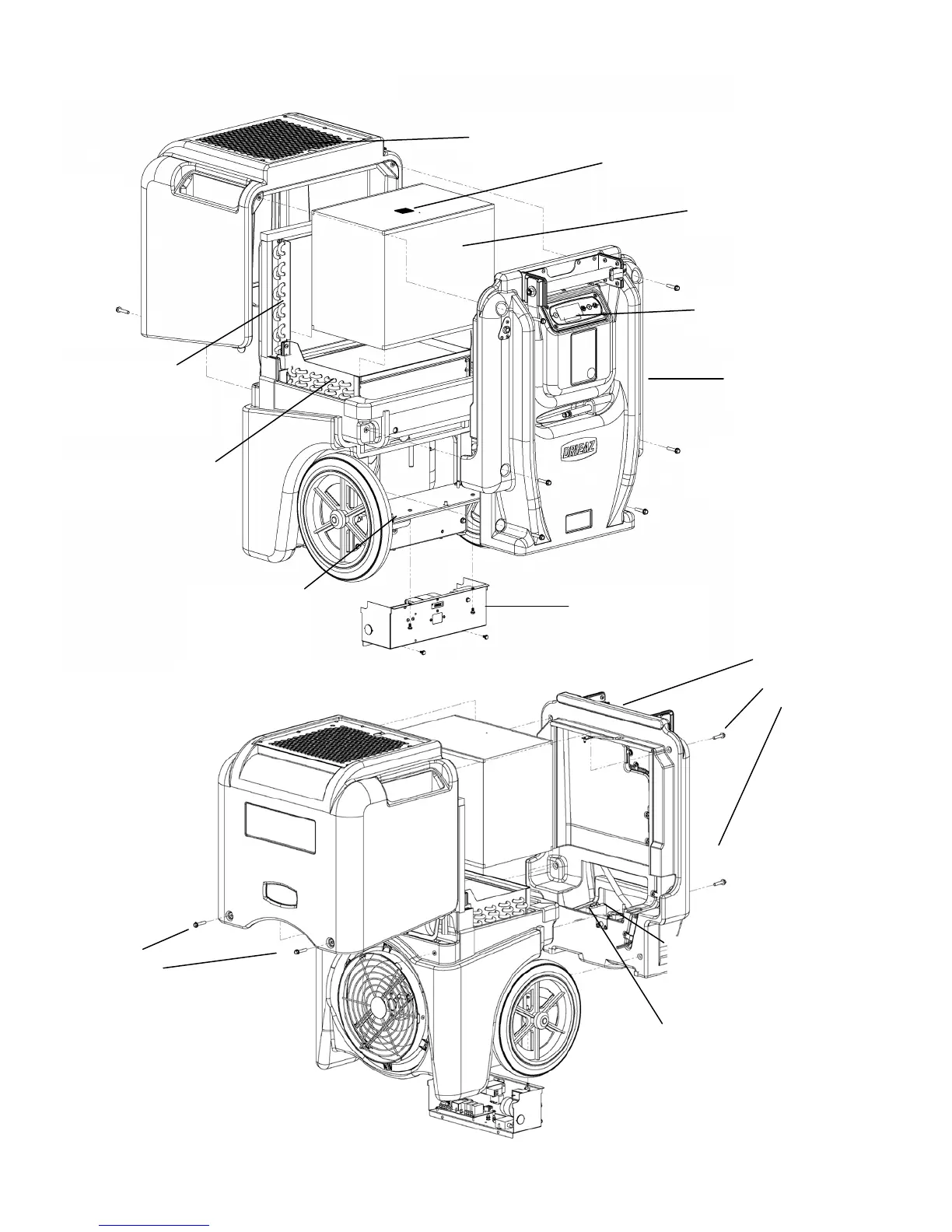

FIG. D: PARTS DIAGRAM
⅜ in. cover
fasteners
(×2)
Pump location
Sump liner
Sensor chip. Lead cable
(not shown) is attached to
back of control panel.
