DriSteem VAPORMIST - Subpanel; FIGURE 50-1: VAPORMIST SUBPANEL WITH SSR

48
VAPORMIST INSTALLATION, OPERATION, AND MAINTENANCE MANUAL
SDU-E
OM-1503
Table 48-1:
SDU-E replacement parts
No. Description Qty. Part No.
1 Shroud 1 330002-001
2 Blower, SDU external assembly 1 *
3 Switch, airfl ow 1 406190
4 Screw, 8-32 × ½" Phillips, black 4 700170-007
5 Nut retainer, 8-32 4 409593-001
6
Dispersion chamber for SDU with 1½" outlet 1 160445-003
Dispersion chamber for SDU with 2" outlet 1 160445-004
* This is an assembly of multiple parts.
mc_062810_1112
REPLACEMENT PARTS
mc_062810_1110

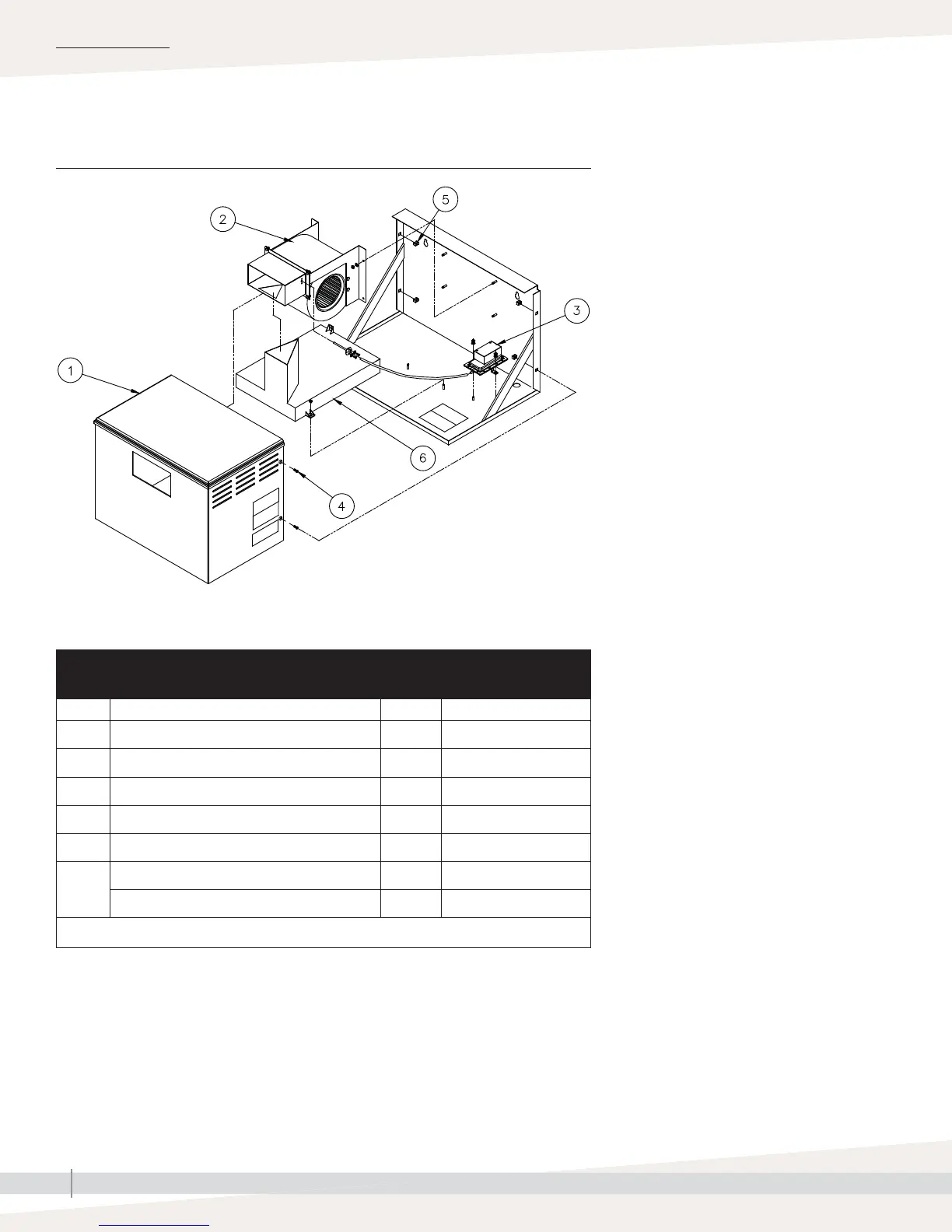

FIGURE 48-1: SDU-E REPLACEMENT PARTS
