DriSteem VAPORMIST - Dimensions

5
VAPORMIST INSTALLATION, OPERATION, AND MAINTENANCE MANUAL
SPECIFICATIONS
DC-1167
2" (50 mm)
Venting
0.90" (23 mm) hole in
base for water fi ll line
Steam outlet
Top view
24.2" (614 mm)
Left side view Front view
Bottom view
2.25" (57 mm)
16.1" (409 mm)
18.6"
(472 mm)
2.25" (57 mm)
24.2" (614 mm)
0.70" (18 mm)
10.9"
(276 mm)
2" (50 mm)
1" (25 mm)
2.25" (57 mm)
1.50" (38 mm)
5.75" (146 mm)
3/4" pipe thread (DN20) frame drain
3/4" pipe thread (DN20) tank drain
0.63"
(16 mm)
1.50" (38 mm)
5.75" (146 mm)
Control or SDU wiring knockout
Power wiring knockout
Control or SDU wiring
knockout
Power wiring knockout
Dimensions

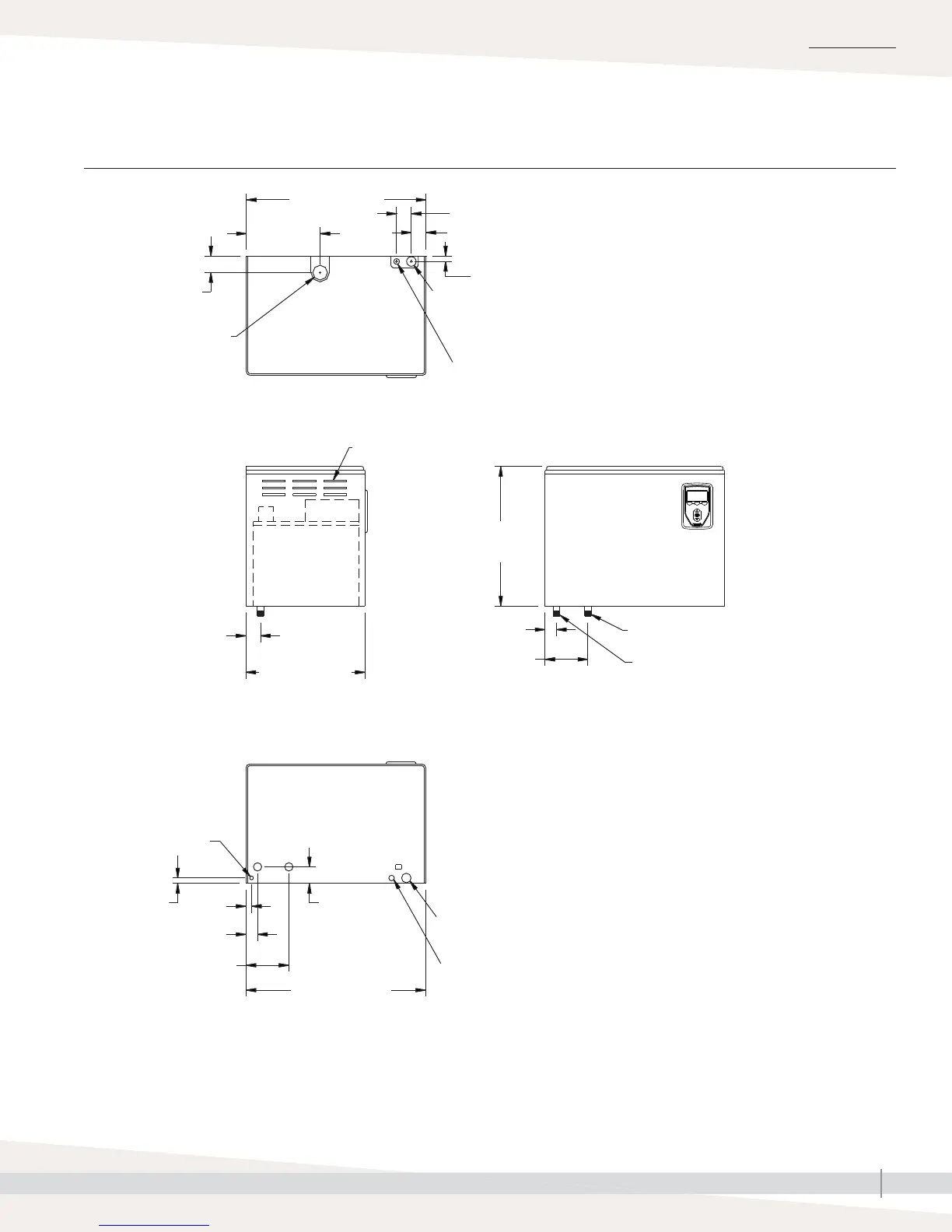

FIGURE 5-1: VAPORMIST DIMENSIONS
