23

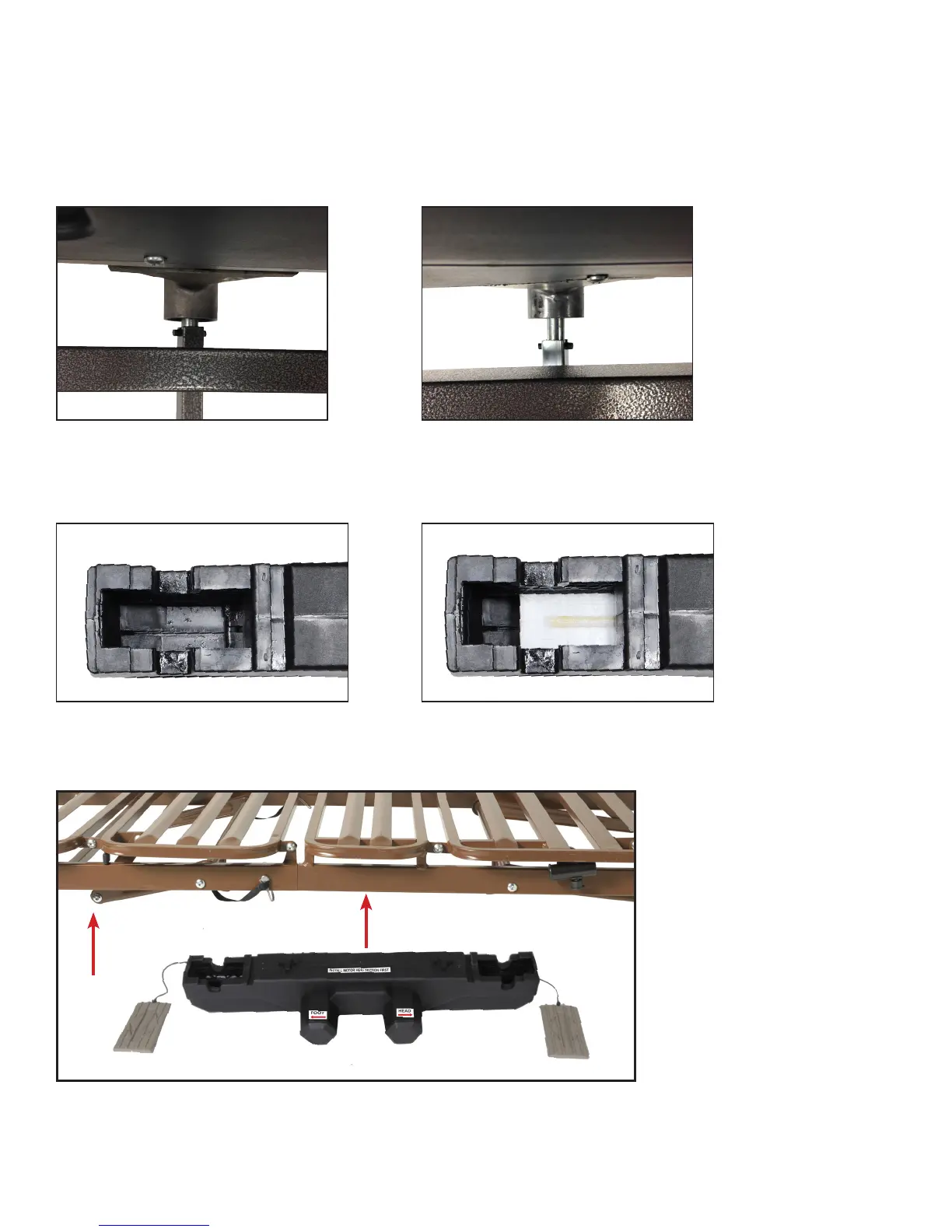

• For 15571, slide Driveshaft under length of the bed. Lift the Head Section of the bed frame and install the Spring
Loaded end of the Hi/Lo Drive Shaft to the Foot Board drive pin, then install head end of the Hi/Lo Drive Shaft to the
Head Board drive pin.
• Hi/Lo Drive Shaft is spring loaded so it will t securely between these two points.
• Adjust length of Hi/Lo Drive Shaft if it is too long or too short.
B4. Remove the covers from the motor and place under the bed and aligned with the actuator under the head
section. There are labels on the motor that provide direction and placement in relation to the head section.
B3. Prior to installation, make sure that the 2 white motor blocks are in the retracted position. If the white motor
block is not in the retracted position, plug power cord into power outlet and retract motor block by depressing the
down buttons on hand pendant until motor block is fully retracted.
CORRECT INCORRECT
