OWNER’S ASSEMBLY AND OPERATING MANUAL
DRIVE COMPETITOR II SEMI ELECTRIC BED
Model # 15561 / 15561FR / 15561HR / 15571 / 15571FR / 15571HR

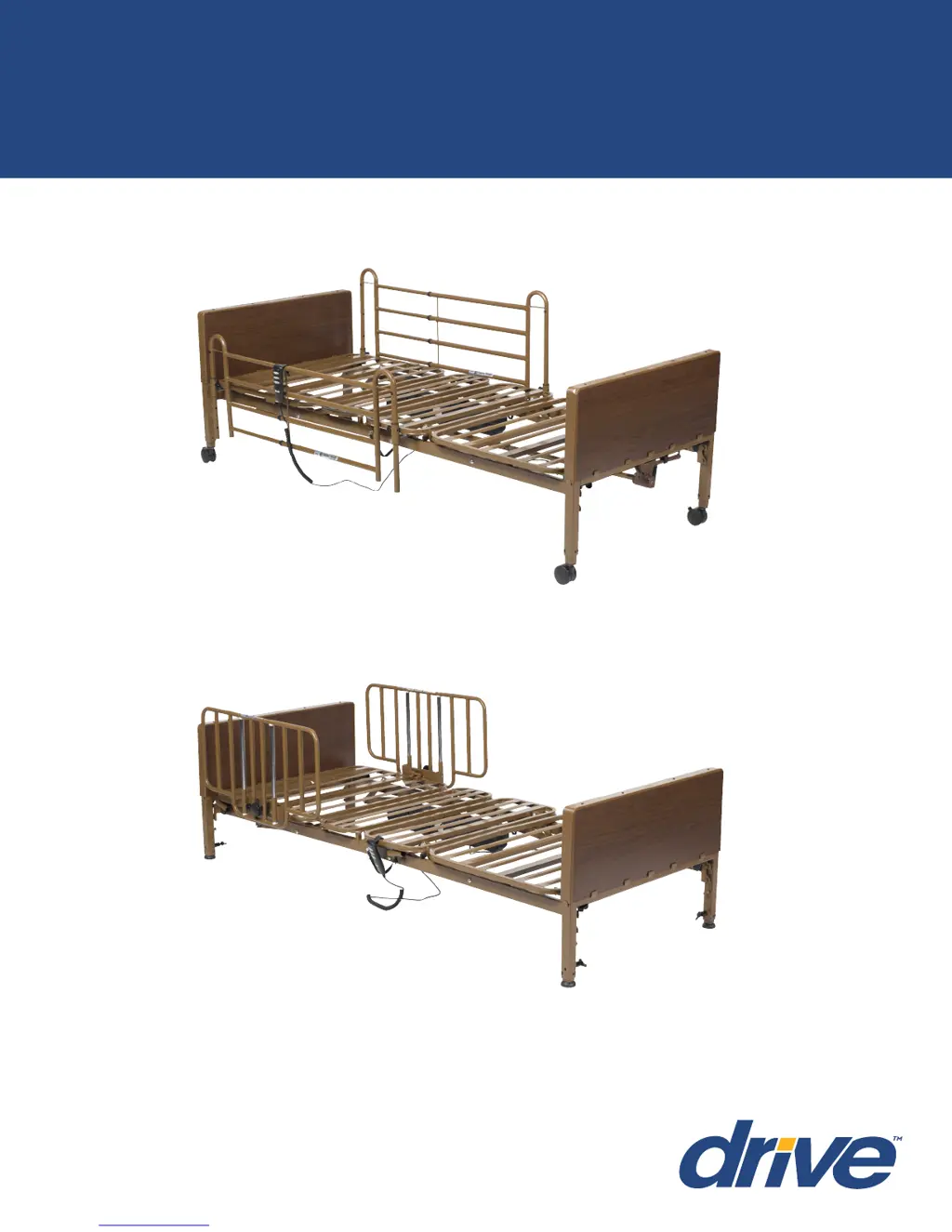

Item # 15571FR with Full Side Rails
Item # 15561HR with Half Rails
This manual must be given to the Owner/User of this bed and
should be read carefully before putting this product into use.
Keep manual in an accessible location for future reference.
15561/15571 Series Manual REV1.1.29.18
