BED RAIL ASSEMBLY
Full Bed Rails:

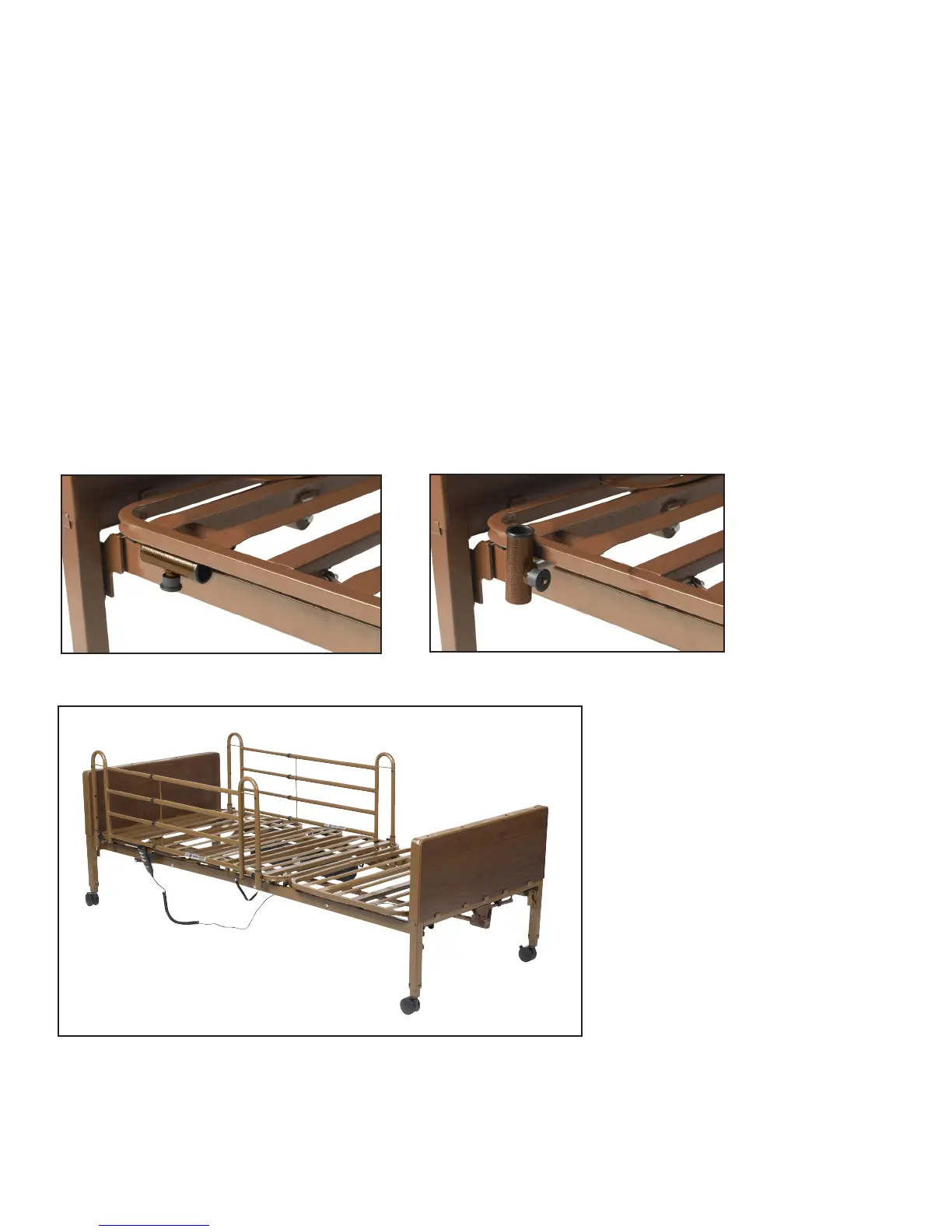

To install Full Bed Rails, lift the head section and nd the rail receptacle located on the frame of the bed as shown (Fig A).
Pull receptacle outward and return head section to the at position. Turn receptacle in a vertical position to receive the rail
(Fig B). Repeat for all four rail receptacles.
developing hospital/convalescent beds; recommends specic test methods to assess the conformance of existing
hospital/convalescent bed systems; and answers frequently-asked questions about entrapment issues.
The FDA Guidance document identies specic dimensional criteria on potentially injury-threatening gaps and spaces that
can occur between bed system components, such as side rails when improperly installed. Drive DeVilbiss Healthcare’s
15561/15571 beds and approved accessories are manufactured to be in conformance with these guidelines.
Please be aware that entrapment issues can still arise when components and accessories are not properly installed on
the bed. It is important for the provider or facility staff to recognize they have an equal role in complying with the FDA
guidelines to help ensure resident safety and avoid injuries.
Copies of this document can be obtained from the FDA website:
http://www.fda.gov/medicaldevices/deviceregulationandguidance/guidancedocuments/ucm072662.htm
Full Bed Rail Operation: Pull out Pull Pin on each bracket one at a time to raise or lower rail. Ensure Pull Pins
are properly engaged to lock rails in position.
