ASSEMBLY INSTRUCTIONS

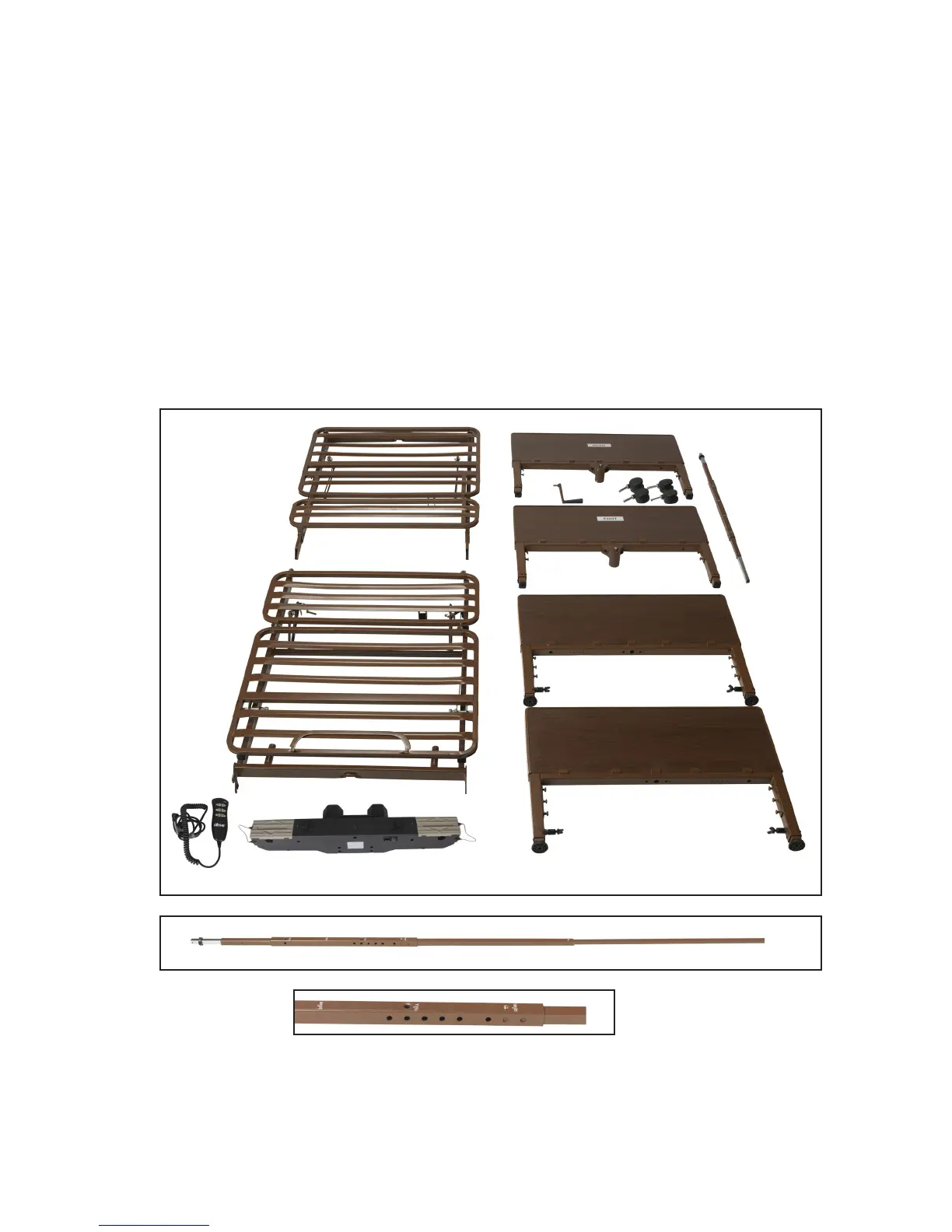

1. Conrm that all parts are present:
A. Foot Deck Section
B. Head Deck Section
C1. Crank Hi/Lo Head & Foot Boards (15571HF)
C2. Manual Adjust Head and Foot Boards (15561HF)
D. Casters (4) – 2 locking, non-locking (15571 Series Only)
E. Hand Crank (15571 Series Only)
F. Hi/Low Drive Shaft (15571 Series Only)
G. Head/Foot Deck Section Motors with Hand Control
A
B
F
C1
DE
Caution: DO NOT attempt to operate bed controls until completion of assembly as damage to bed components and/or
personal injury may occur.
C2
F
G
