22
METHOD B

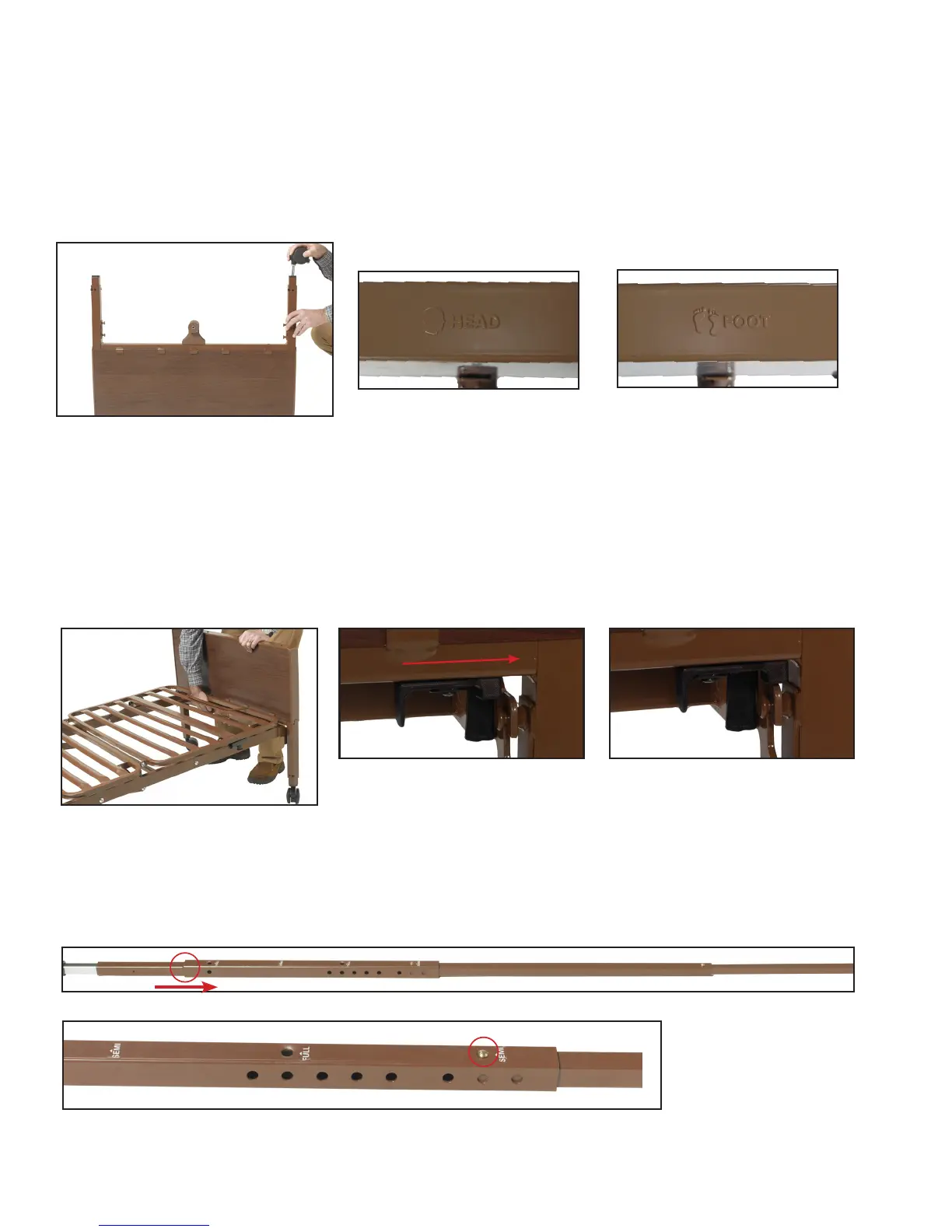

B1. Assemble 15571HF or 15561HF Hi/Lo Bed Ends to the Frame.
Install casters onto 15571HF Bed ends by inserting the stem of the caster into the leg receptacle. It is recommended
to install one locking caster and one non-locking caster on each bed end. The locking casters should be installed
diagonally from each other. Install casters to both bed ends. To engage locking caster, press down on locking tab; lift
up to release. 15561HF bed ends do not include casters, caster are an option.
Lay bed at and install head and foot boards.
Attach the Head and Foot Boards by aligning the frame mounting hooks over bed end mounting pins and push frame
down to secure in place. Push Slide Locks in place over frame hooks for both bed ends to help prevent frame separation
from bed ends.
NOTE: #15571HF Crank Hi/Lo Head and Foot Boards are the same height and must be assembled as a set in order for
Bed Ends to operate correctly. Note position of the embossed “HEAD” and “FOOT” labels on top and sides of the
bed ends for proper assembly. Foot end of the bed frame has the mattress retainer. Lift mattress retainer to help
keep mattress in place. Gear box crank connection will always face outward – away from the bed.
B2. The #15571 Hi/Lo Drive Shaft comes in 3 sections. Assemble the Hi/Lo Drive Shaft by inserting the (A) section with
push pin into the (B) section with indicators and align with the “Semi” indicator hole. Next extend the (C) section and
align with the single hole location opposite the “Semi” indicator hole location.
A-B
C
B A C
