Drive 15571 - MOTOR INSTALLATION METHODS; METHOD A; METHOD B

18

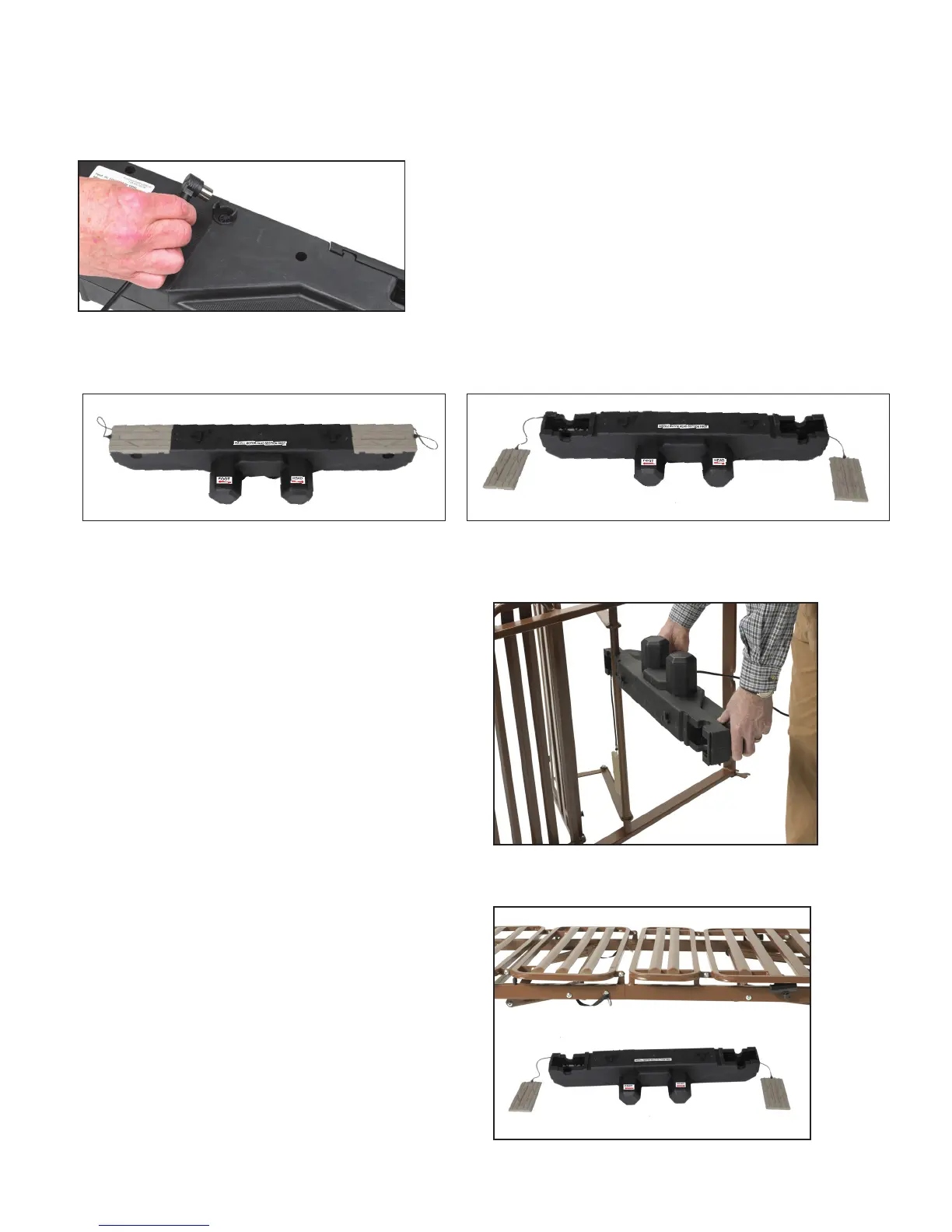

METHOD A
The motor is installed on the bed frame
when the frame is standing on its side.
Installation instructions can be found on pages 20-22.
Labels on motor indicate which end goes toward
Head Section & Foot Section.
Method B
The motor is installed from underneath the bed frame
(horizontal to the ground)
Installation instructions can be found on pages 23-25.
Labels on motor indicate which end goes towards
Head Section & Foot Section.
THERE ARE TWO METHODS FOR THE INSTALLATION OF THE MOTOR
5. NOTE: Before installing motor, ensure plug hand pendant cable is plugged into motor as shown
6. To install motor, remove locking caps on top of the motor.
