NOTE: #15571HF Crank Hi/Lo Head and Foot Boards are the same height and must be assembled as a set in order for
Bed Ends to operate correctly. Note position of the embossed “HEAD” and “FOOT” labels on top and sides of the
bed ends for proper assembly. Foot end of the bed frame has the mattress retainer. Lift mattress retainer to help
keep mattress in place. Gear box crank connection will always face outward – away from the bed.
#15561HF Manual Adjust Head and Foot Boards are the same height and are interchangeable with each other.

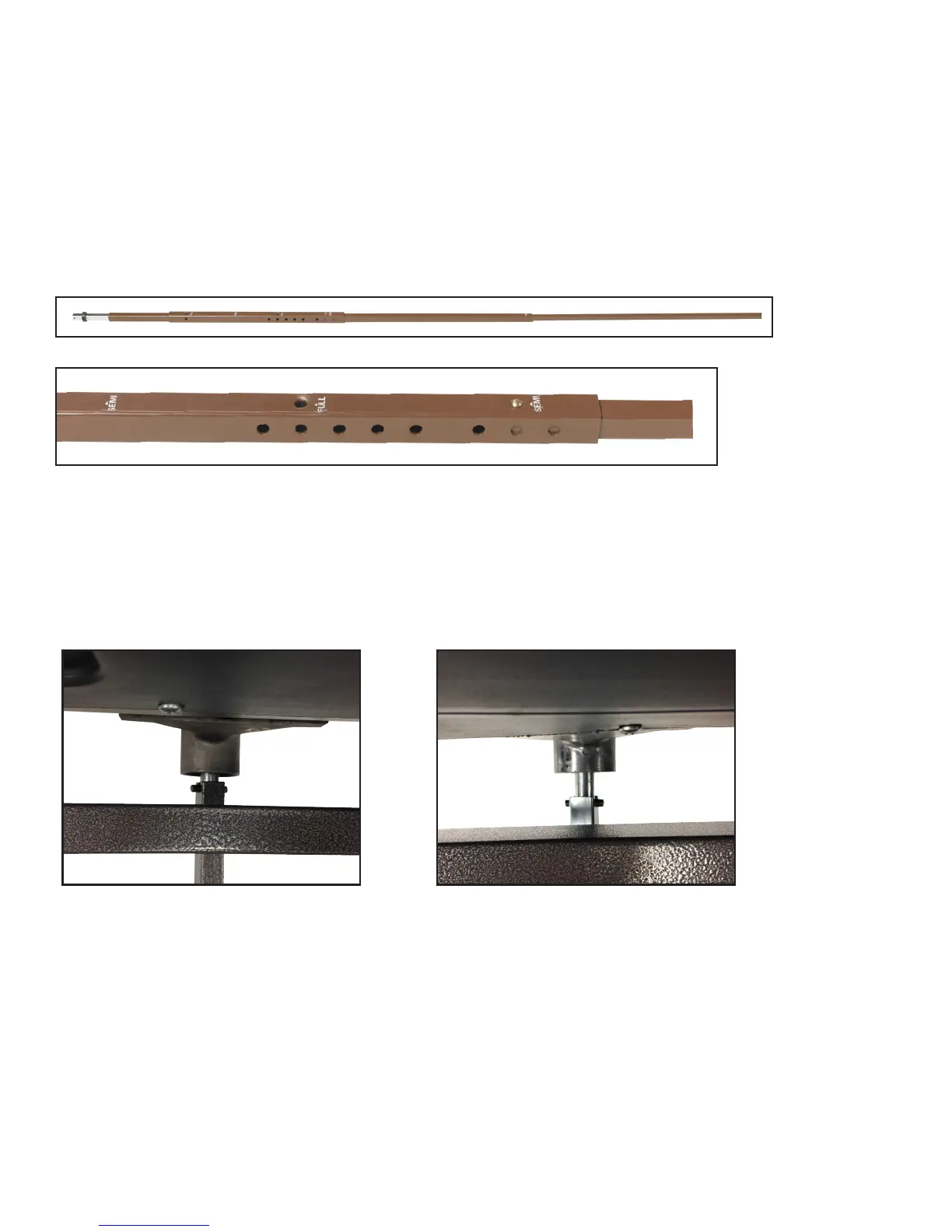

A8. The #15571 Hi/Lo Drive Shaft comes in 3 sections. Assemble the Hi/Lo Drive Shaft by inserting the (A) section with
push pin into the (B) section with indicators and align with the “Semi” indicator hole. Next extend the (C) section and
align with the single hole location opposite the “Semi” indicator hole location.
• Slide Driveshaft under length of the bed. Lift the Head Section of the bed frame and install the Spring Loaded end
of the Hi/Lo Drive Shaft to the Foot Board drive pin, then install head end of the Hi/Lo Drive Shaft to the Head Board
drive pin.
• Hi/Lo Drive Shaft is spring loaded so it will t securely between these two points.
• Adjust length of Hi/Lo Drive Shaft if it is too long or too short.
