15561 MANUAL ADJUST HEAD & FOOT BOARDS
High Deck Height Position: 20”

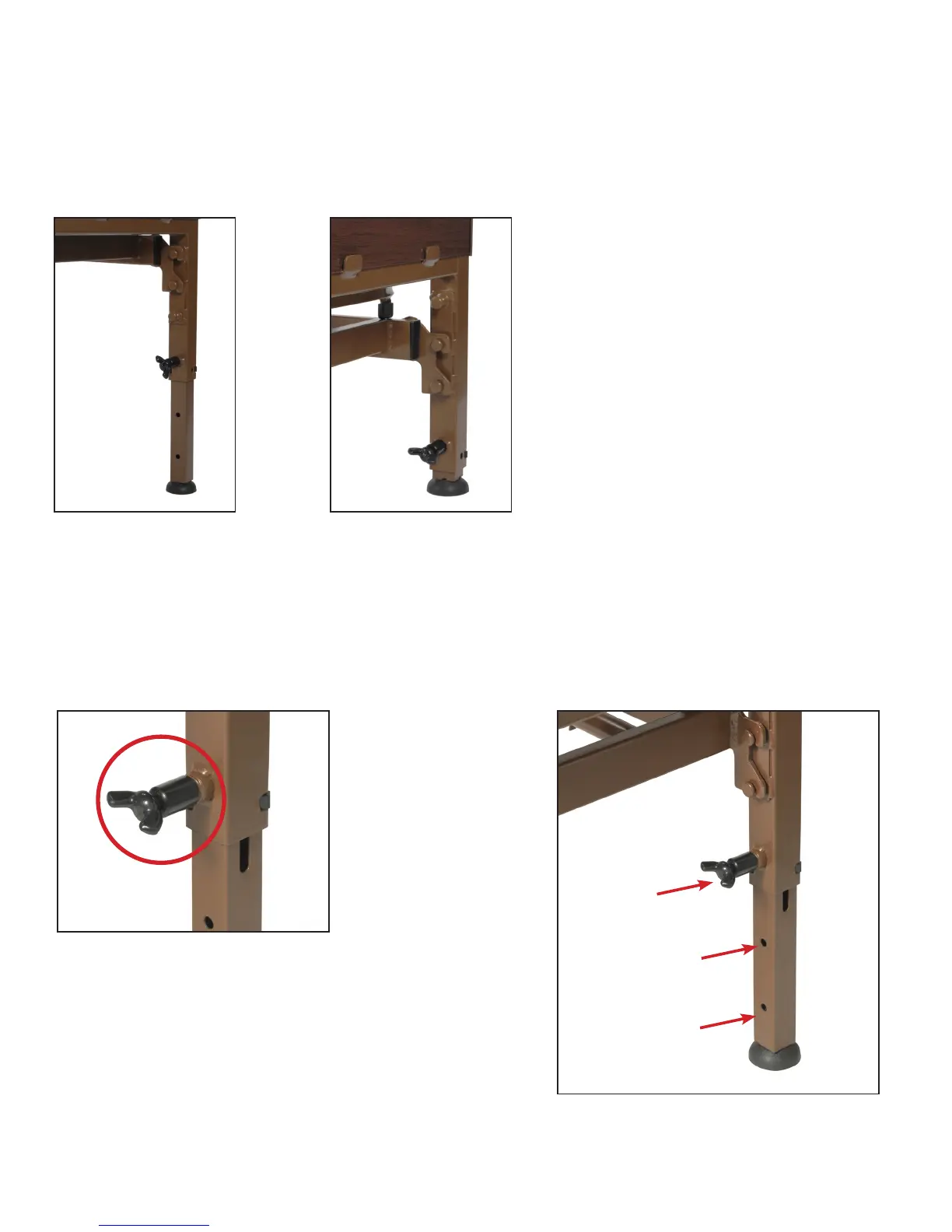

Leg Height Positions (3): Turn Spring Loaded Thumb Screw counter clockwise and pull out to release pin. While
holding thumb screw out with one hand slide leg up or down to desired height and align into one of the 3 adjustment
hole positions. Once aligned, release Spring Loaded Thumb Screw by turning clockwise to secure pin in place.
Continue turning Spring Loaded Thumb Screw clockwise until pin is secured tightly in position. Adjust other legs to the
same height position.
Low Deck Height Position: 11”
Once the desired position is found, turn the thumb screw until tight.
Adjust other legs to the same position.
Low Height Position with Deck Height Pin and Leg Height in Lowest
Positions (No Casters)
NOTE: Rails cannot be used in the Low Height Position
High Height Position with Deck Height Pin and Leg Height in Highest
Positions (No Casters)
High
Medium
Low
#15561HF Manual Adjust Head & Foot Boards have two height adjustments. Adjustment #1 is located on the bed end
frame that allows for an upper and lower deck height position. Adjustment #2 is located on the Bed End leg itself and
allows for High, Medium and Low Leg Height positions. Using both of these adjustments will provide maximum high and
low height positioning.
