22
No. Function indication Explanation
4
5
Acc/ Dec Sel.1
Acc/ Dec Sel.2
Acceleration/ deceleration time selection.
When two terminals are used, the acceleration/ deceleration time of up to four
stages can be set.
For example: Set Acc/ Dec Sel.1 to terminal 27 and Acc/ Dec Sel.2 to terminal
28.
Acc/ Dec Sel.2
is set to
terminal 28
Acc/ Dec Sel.1
is set to
terminal 27
Set-up function Code No.
OFF OFF
Value for acceleration (1) time setting
Value for deceleration (1) time setting
(No. 08)
(No. 09)
OFF ON
Value for acceleration (2) time setting
Value for deceleration (2) time setting
(No. 80)
(No. 81)
ON OFF
Value for acceleration (3) time setting
Value for deceleration (3) time setting
(No. 82)
(No. 83)
ON ON
Value for acceleration (4) time setting
Value for deceleration (4) time setting
(No. 84)
(No. 85)
6
7
F.Up
F.Down
Output frequency acceleration
Output Frequency deceleration
Multifunction input terminals can be used to accelerate/ decelerate the output
frequency. Set code No. 63 Ref.F.Sel to Up/Down Term.
8
9
10
11
Ext. Failure 1
Ext. Failure 2
Ext. Failure 3
Ext. Failure 4
External failure 1
External failure 2
External failure 3
External failure 4
Multifunction input terminals can be
used.
Failure input to stop the inverter. Up
to four failures can be input.
12 DC-Brake
DC brake switch
When the DC brake switch is turned on at a multifunction input terminal after the
inverter start switch is turned off, DC brake operation is performed.
The DC brake voltage set in No. 28 DC-Br.V is output.
13 F.Hold
Frequency Hold
When the Frequency Hold signal is input at the multifunction input terminal
while the output frequency is being accelerated/ decelerated, the acceleration/
deceleration is stopped. When the input is turned off, acceleration/ deceleration
is restarted.

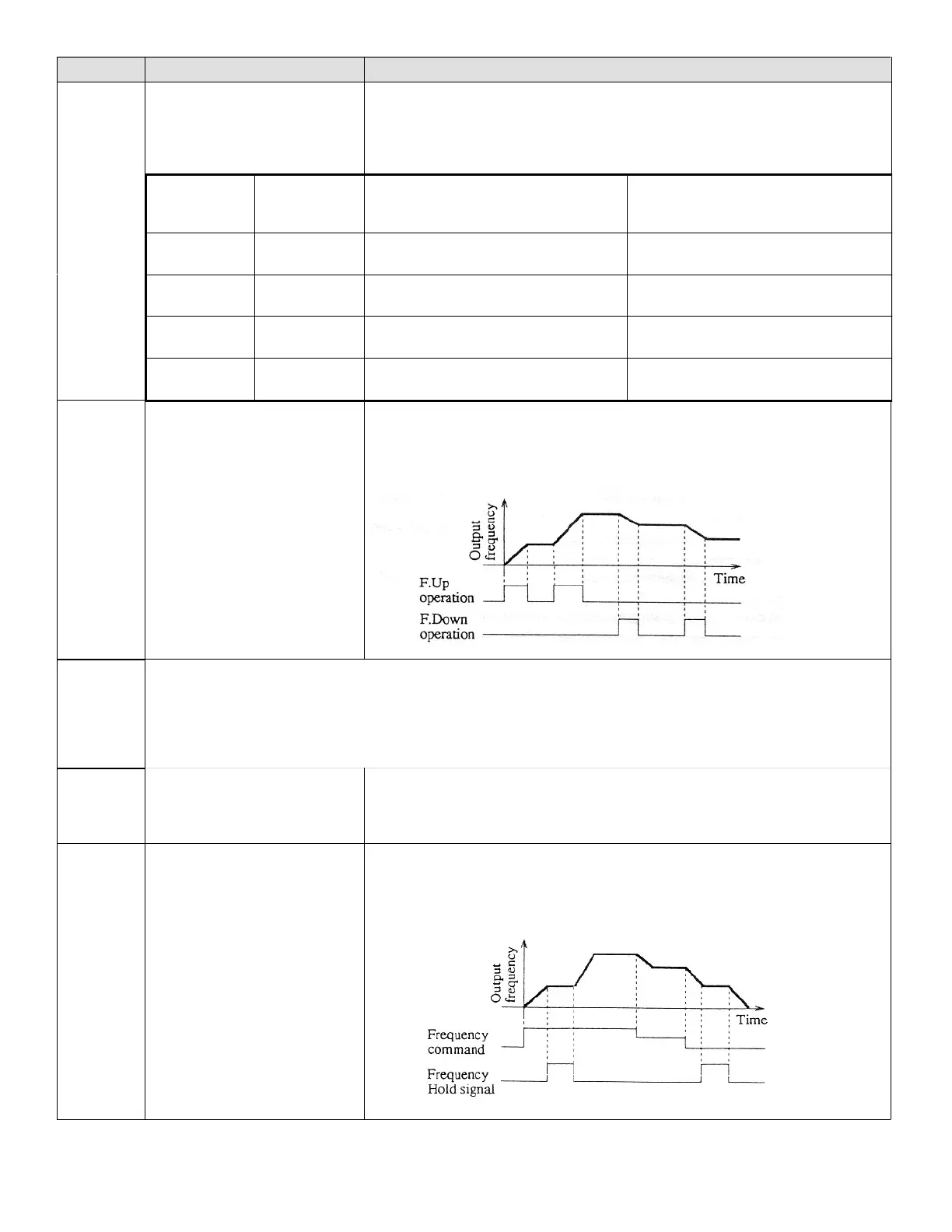

Table 14 Multifunction input items 2
