Cabinets
Several different cabinets are available for the PC1555 CP-
01 modules. They are as follows:
• PC4050C -
PC4050C - PC4050C -
PC4050C - alternate main control cabinet (Household
Fire & Burglary) for the PC1555 CP-01 main panel.
Dimensions 305mm x 376mm x 125mm / 12.0” x 14.8”
x 4.9” approximately.
• PC4050CAR
PC4050CARPC4050CAR
PC4050CAR - alternate main control cabinet (Commer-
cial Burglary) for the PC1555 CP-01 main panel.
Dimensions 305mm x 376mm x 125mm / 12.0” x 14.8”
x 4.9” approximately.
• PC4050CRAR
PC4050CRARPC4050CRAR
PC4050CRAR - alternate main control cabinet (Com-
mercial Burglary) for the PC1555 CP-01 main panel.
Dimensions 305mm x 376mm x 125mm / 12.0” x 14.8”
x 4.9” approximately.
•
••
• PC500C -
PC500C - PC500C -
PC500C - alternate main control cabinet
(Household
Burglary). Dimensions 213mm x 235mm x 78mm / 8.4”
x 9.25” x 3” approximately.
• PC5002C -
PC5002C -PC5002C -
PC5002C - cabinet to house the PC5204 power supply
output module. Dimensions 213mm x 235mm x 78mm
/ 8.4” x 9.25” x 3” approximately.
• PC5003C -
PC5003C - PC5003C -
PC5003C - main control cabinet for the PC1555 CP-01
main panel. Dimensions 222mm x 298mm x 78mm /
11.3” x 11.7” x 3.0” approximately (Household Fire &
Burglary).
• PC5004C -
PC5004C -PC5004C -
PC5004C - cabinet to house the Escort5580(TC) module
and PC5400 Printer Module. Dimensions 229mm x
178mm x 65mm / 9” x 7” x 2.6” approximately.
• PC5001C
PC5001C PC5001C
PC5001C - cabinet to house the PC5108 zone expander
module and the PC5208 8 low current output module.
Dimensions 153mm x 122mm x 38mm / 6” x 4.8” x
1.5” approximately.
• PC5001CP -
PC5001CP -PC5001CP -
PC5001CP - plastic cabinet to house the PC5108 zone
expander module and the PC5208 8 low current output
module. Dimensions 146mm x 105mm x 25.5mm /
5.75” x 4.2” x 1” approximately.
•CMC-1
CMC-1CMC-1
CMC-1 - alternate main control cabinet (Commercial
Burglary) Dimensions 222mm x 298mm x 78mm / 11.3”
x 11.7” x 3.0” approximately.
•Multi-3
Multi-3Multi-3
Multi-3 - cabinet to house the PC5936/PC5937 mod-
ules. Dimensions 287mm x 298mm x 78mm / 11.3” x
11.7” x 3.0” approximately.
•HS-CAB100
HS-CAB100HS-CAB100
HS-CAB100 - structured wiring cabinet for PC1555 CP-
01 main panel. Dimensions 362mm x 229mm x 102mm
/ 14.25” x 9” x 4” with a wire raceway positioned on the
right side of the cabinet. The cover is 389mm x 254mm
/ 15.3” x 10”.
• HS-CAB1400
HS-CAB1400HS-CAB1400
HS-CAB1400 - structured wiring cabinet for PC1555 CP-
01 main panel. Dimensions are 362mm x 362mm x
102mm / 14.25” x 14.25” x 4” with a wire raceway in the
center of the cabinet. The cover is 389mm x 389mm /
15.3” x 15.3”.
• HS-CAB2800
HS-CAB2800HS-CAB2800
HS-CAB2800 - structured wiring cabinet for PC1555
CP-01 main panel. Dimensions 724mm x 362mm x
102mm / 28.5” x 14.25” x 4” with a wire raceway in the
center of the cabinet. The cover is 752mm x 387mm /
29.6” x 15.3”.
• HS-CAB4200
HS-CAB4200HS-CAB4200
HS-CAB4200 - structured wiring cabinet for PC1555
CP-01 main panel. Dimensions 1086mm x 362mm x
102mm / 42.75” x 14.25” x 4.0” with a wire raceway in
the center of the cabinet.
Backplates
There are two different backplates available for keypads
to mount an audio station next to a keypad:

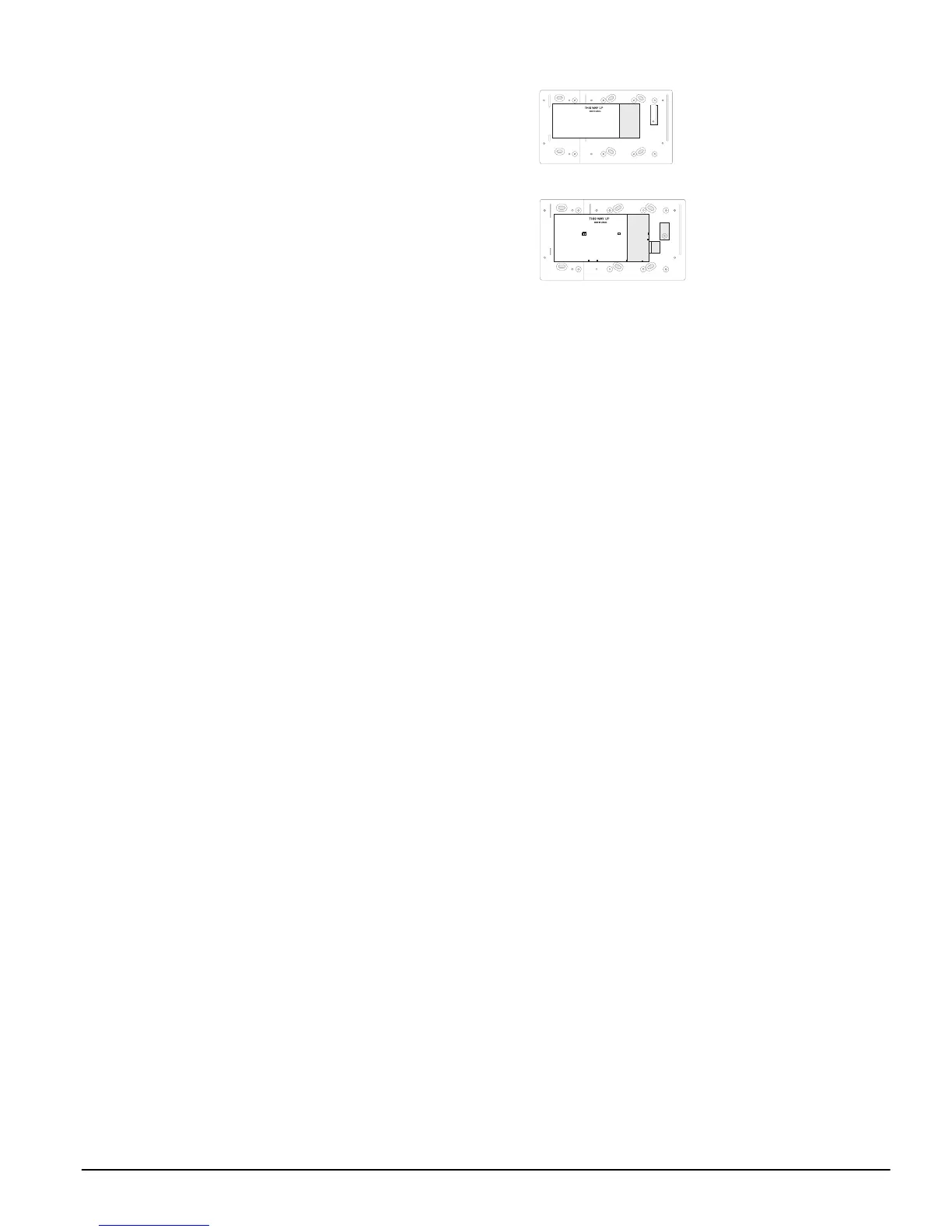

PC55BP1 Backplate
Use this backplate when mount-
ing an audio station next to a
keypad. Dimensions 208mm x
115mm x 18mm / 8.2” x 4.5” x
0.25” approximately.
PC55BP2 Backplate
Use this backplate when
mounting an audio station
next to a keypad. In addition
the backplate will allow you to
mount a PC5208 8 low current
output module. Dimensions
208mm x 115mm x 18mm /
8.2” x 4.5” x 0.7” approximately.
