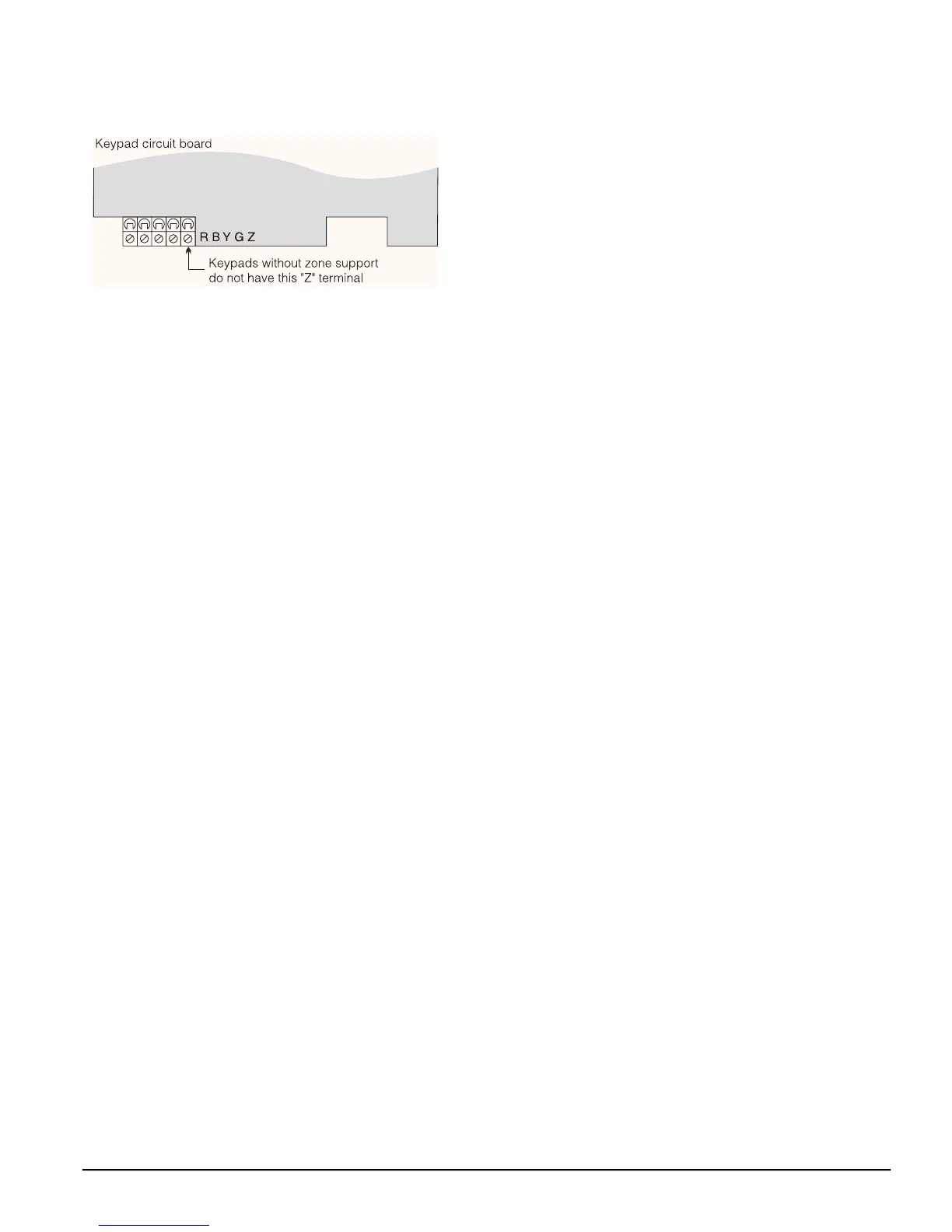

Getting Started: 2.12 Keypad Zones
7
Wiring”
. End of line resistors must be placed on the device
end of the loop, not at the keypad.
NOTE: Keypad zones do not support DEOL resistors.
Assigning Keypad Zones
When using keypad zone inputs, each input used must be
assigned a zone number in Installer’s Programming.
First, ensure that you have enrolled all installed keypads into
the desired slots. (See 2.5
“Keypad Assignment”
on page 4.)
Next, enter programming section [020] to assign the zones.
There are eight programming locations in this section, one for
each keypad slot. Enter a 2-digit zone number for each of the
keypad zones. This number must be entered in the location
corresponding to the keypad to which each zone is con-
nected.
Example: The zone on an LCD5500Z keypad in slot 8 is to be
assigned zone 3. In section [020], scroll to option [8] and
enter (03).
NOTE:Keypad zones 1-6 will replace zone terminals Z1-Z6 on
the control panel.
NOTE: Once the keypad zones are assigned, you must also
program zone definitions and zone attributes. (See also 5.4
“Assigning Keypad Zones” on page 17).

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the DSC PC1565 - VERSION 2.3 and is the answer not in the manual?

DSC PC1565 - VERSION 2.3 Specifications

General IconGeneral
Partitions2
Event Buffer128 events
CommunicatorBuilt-in
PGM Outputs2 (expandable)
Alarm System TypeWired
Battery Backup12VDC, 4Ah
Keypads Supported8
CommunicationPhone line
Power Supply16.5VAC, 40VA
Operating Temperature0°C to 49°C (32°F to 120°F)
