Introduction

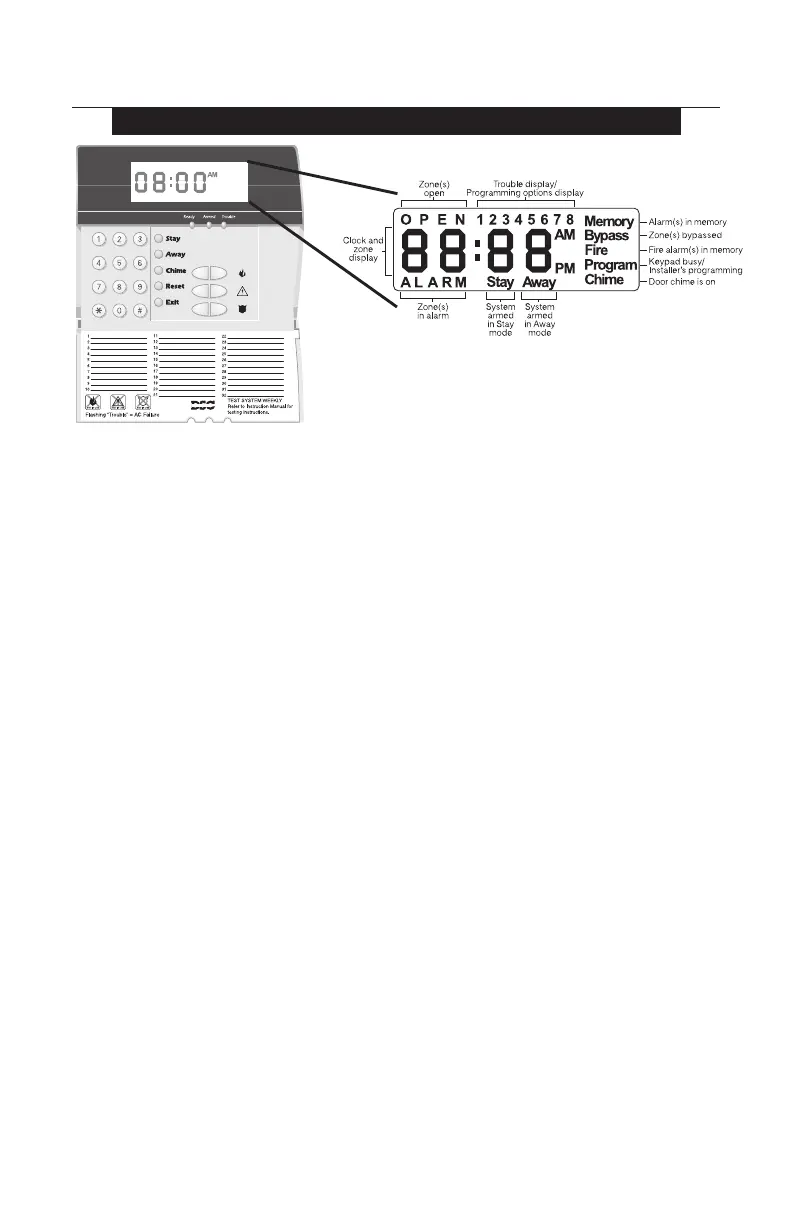

The RF5501-433 keypad combines a standard PC5132 receiver with an LCD5501Z
keypad that presents system status using an LCD-style display with fixed messages.
With the addition of the receiver portion, the control panel will now support up to 32
zones. The RF5501-433 is compatible with the following DSC security systems:
• PC5010 (all versions) • PC1555(MX)/1565 v2.3 & higher • PC5008 v2.3 & higher
• PC5015 (all versions) • Power608 v2.3 & higher • PC580/585 v2.3 & higher
• PC5020 (all versions)
NOTE: Control panels previous to version 2.3 support 8 wireless zones.
Only one RF5501 keypad can be connected per system. If more keypads are required
please select other DSC compatible keypads for the system being installed.
Specifications and Features
• Maximum Current Draw: 220 mA (with back lighting boost on and both PGMs drawing
maximum current of 50 mA each)
• Frequency: 433.92 mHz
• Voltage: 12V
• Zones - receiver can receive signals from up to 32 wireless zones
• Supervisory - programmable supervisory window, 4 to 24 hours
• Location
- can be wired up to 1000ft. / 305m from the main panel with 22 gauge wire
- for longer wire runs, thicker gauge wire must be used.
• The wiring used in this circuit connection shall be insulated with PVC, TFE, PTFE, FEP
neoprene or polymide.
• Compatibility: The RF5501-433 can be connected to the following panels:
PC5010,
PC5015, PC5020, PC5008, PC1555/1565, PC580/585
• Connects to control panel via 4-wire Keybus
• One keypad zone input
• Optional tamper version
• Five programmable function keys
• Ready (green), Armed (red) and Trouble (yellow) status lights
• Up to 2 open collector type PGM outputs
• Low temperature zone option (see section 2.7)
