DStv 5 - Connecting the DStv Switch (5-1) to two DStv Exploras (IS20)

7
DStv Switch - User Guide
H/L V/L H/H V/H
1 2 3 4
A
B
DStv Explora
1
H/L V/L H/H V/H
1 2 3 4
A
B
DStv Explora
2

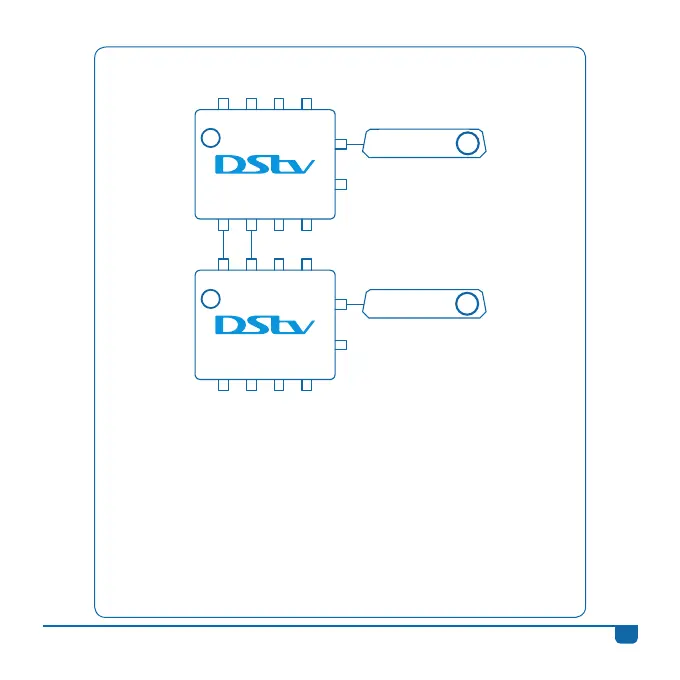

Connecting the DStv Switch (5-1) to two DStv Exploras (IS20)
This installation requires a DStv Switch per DStv Explora. The DStv Switch
(5-1) can only be connected to one DStv Explora at any one time.
• Once the first switch has been connected to the satellite dish, connect
output A or B on the first switch to the input labelled UNICABLE™ IN on
the back of your first DStv Explora.
• Then, using the provided cables, connect the first DStv Switch to a second
DStv Switch. Connect the outputs labelled 1 and 2 on the first switch, to
the inputs marked H/L and V/L on the second switch.
• Once the DStv Switches have been connected, connect output A or B on
the second switch to the input labelled UNICABLE™ IN on the back of
your second DStv Explora.
1
2
