19
(2) Clock Division

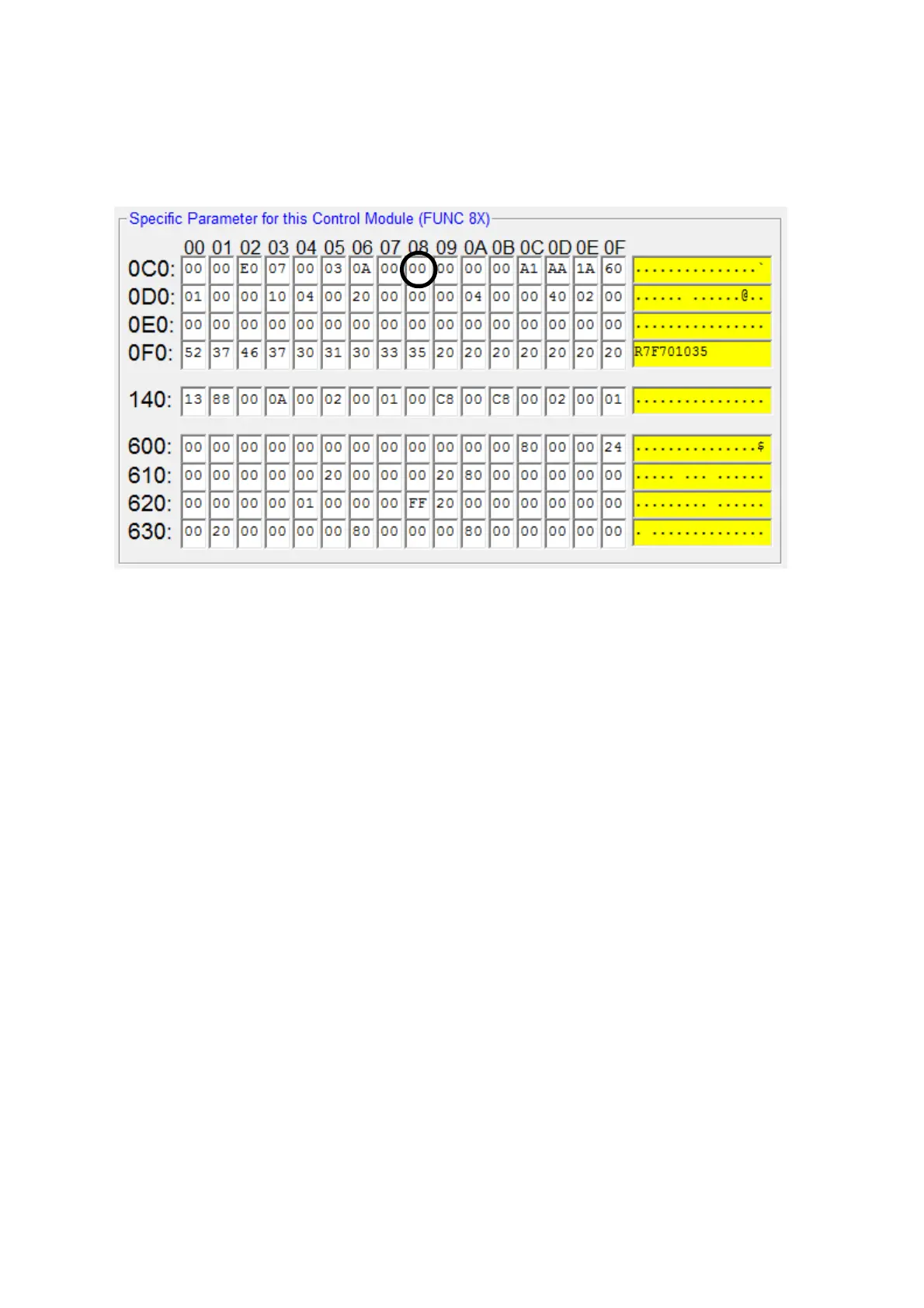

Enter the clock division value at C8 in hexadecimal.
*Clock division value is enabled in case the value is greater than 1.
Example:
When MCU Clock Frequency is 24.0 MHz and operation clock is 80.0MHz, C6 (multiplication)
= 0Ah, C8 (clock division) = 03h.
