Option Byte Setting Example
OPBT0: 0xFFCD0030
OPBT2: 0xFFCD0038
* 0xFFCD0034 is undefined.

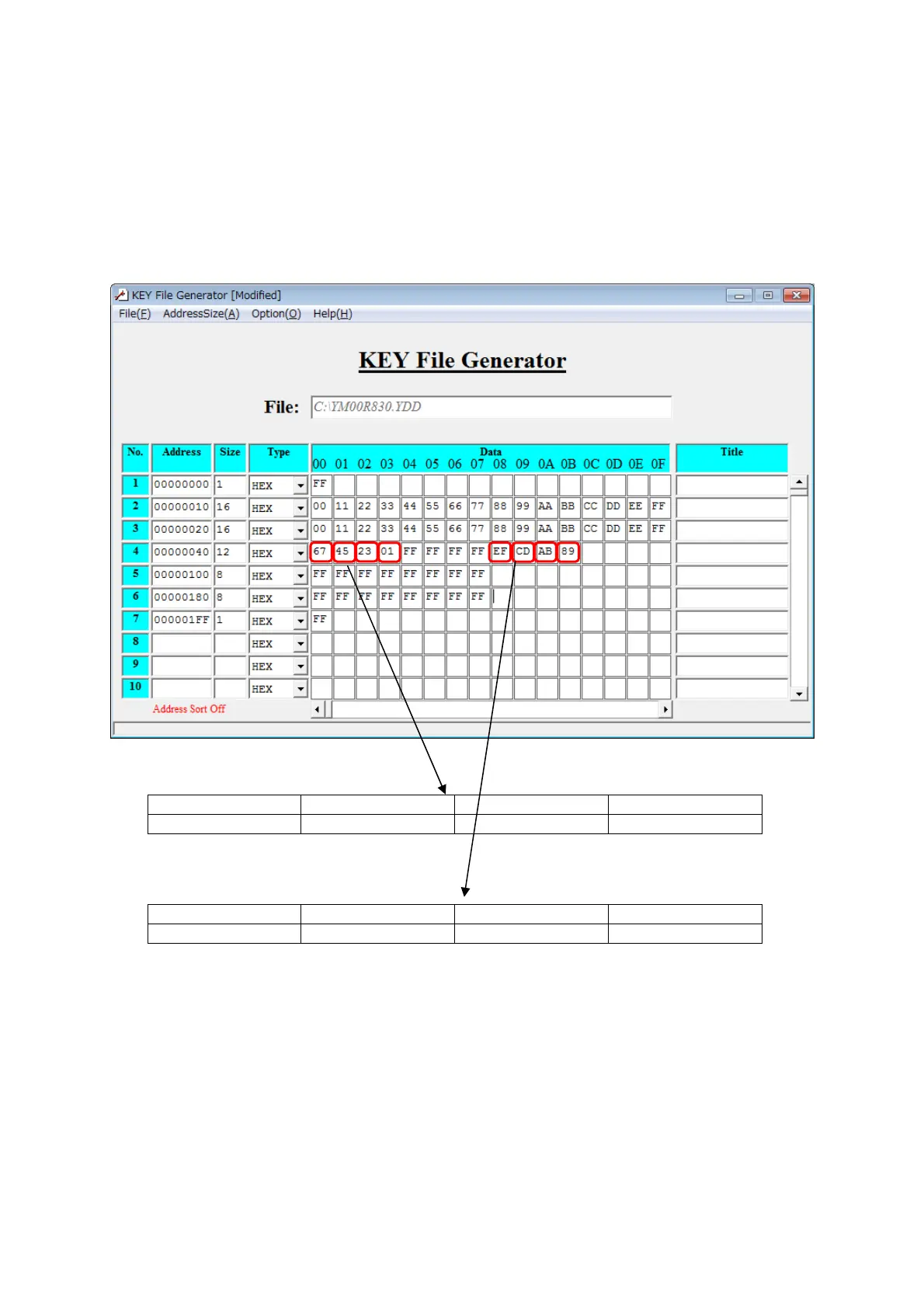

The following figure shows the configuration of AZ481 (KEY file generator).
BIT31-24 BIT23-16 BIT15-8 BIT7-0
0x01 0x23 0x45 0x67
(Target) OBPT0 – Option byte 0 register
BIT31-24 BIT23-16 BIT15-8 BIT7-0
0x89 0xAB 0xCD 0xEF
(Target) OBPT2 – Option byte 2 register
