DTS 03.MS014.EBLFP - Page 14

14

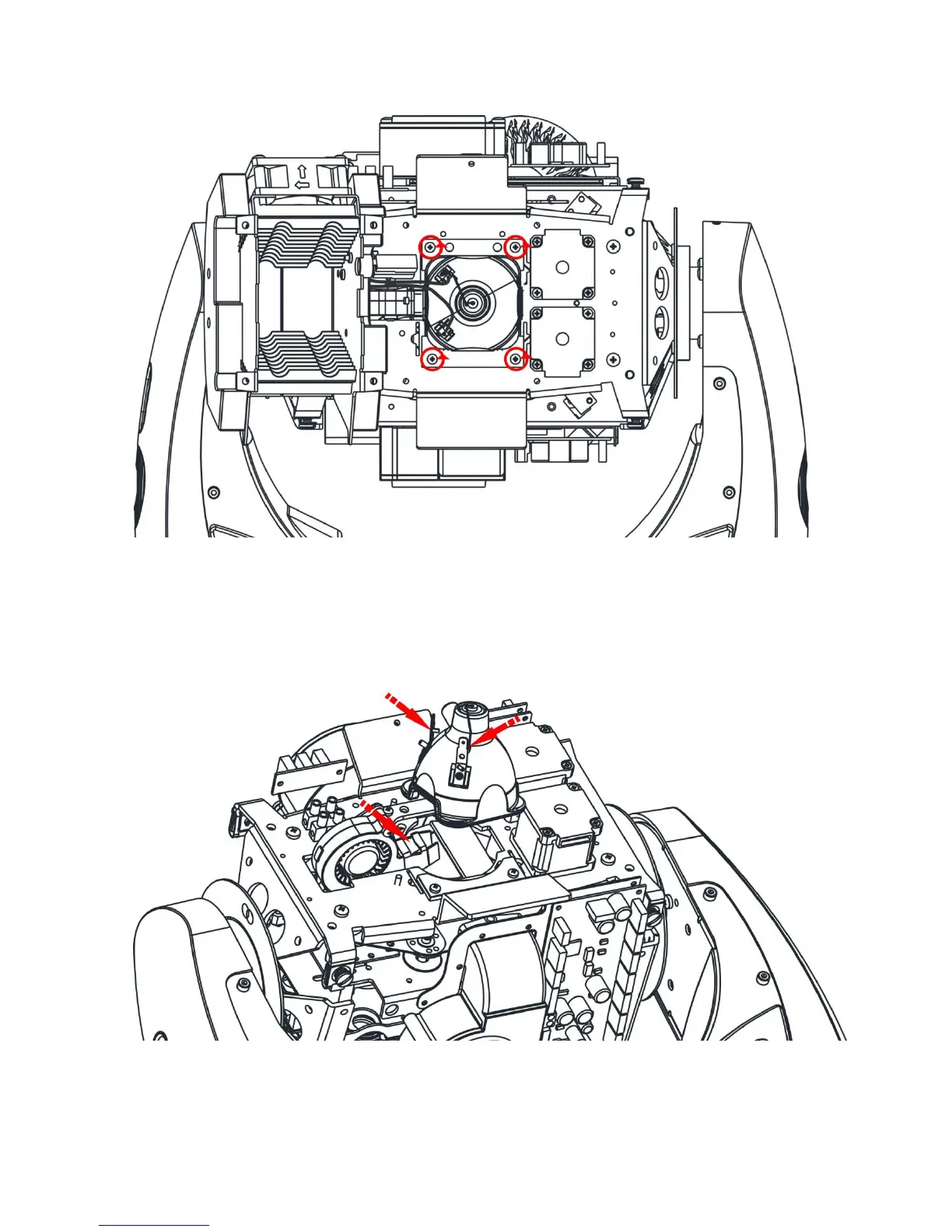

PICTURE 5
5) Put in place the new lamp in the lamp support.
Place the lamp terminals on the fan air conveyor side (Picture 6).
PICTURE 6
6) Lamp sub-assembly can now be re-installed, following backward all the above
listed steps.
