16- REMOVING / REPLACING THE GOBOS
MAX uses a mechanical system which allows the fixture's gobos to be removed
without the use of special tools.
When replacing gobos, ensure that the projector is switched off.

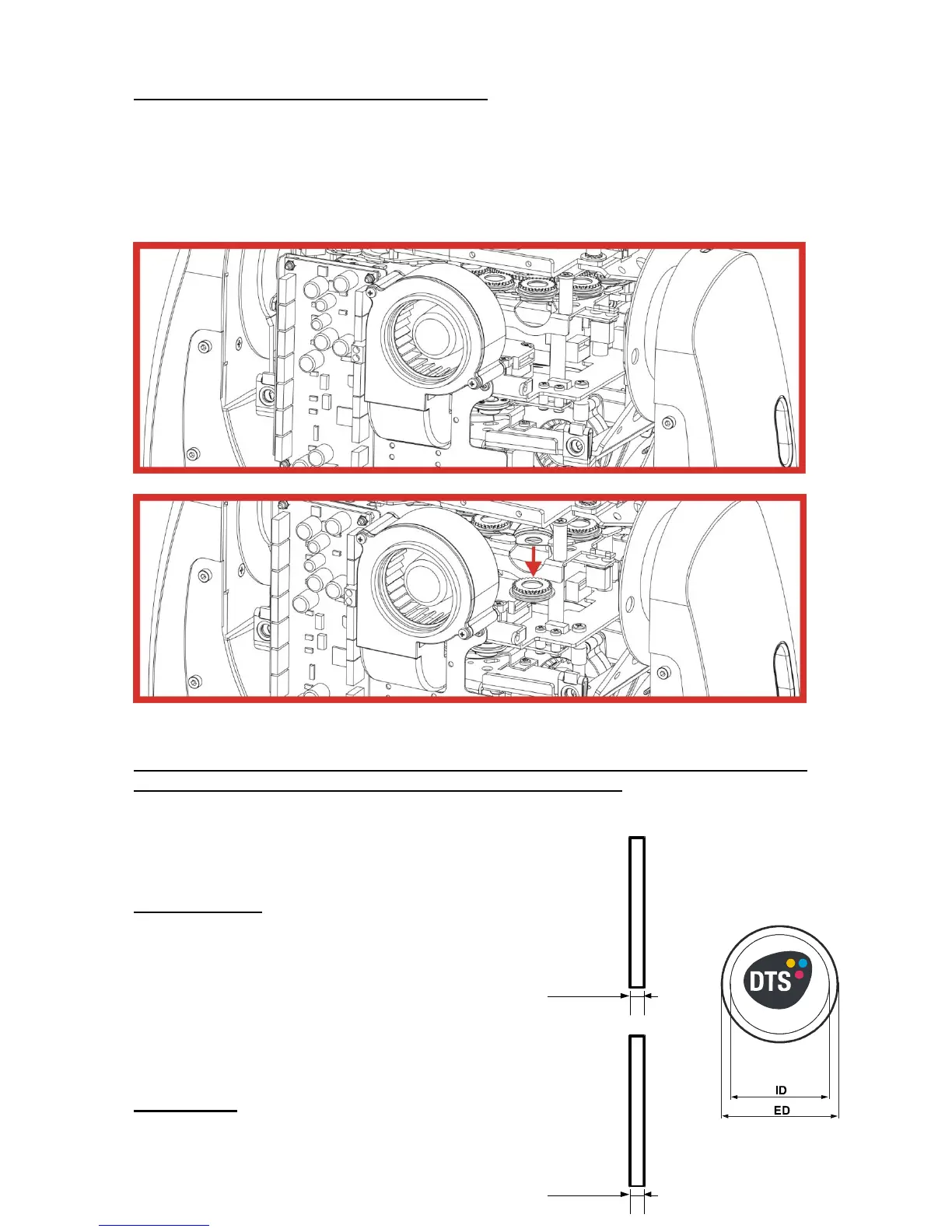

Open the projector housing and pull out the gobo holder from the rotating gobo wheel
as shown in the picture. Also fixed gobos are interchangeable.
REPLACEMENT GOBOS
Replacement gobos must be made only of glass with special high temperature
treatment. Please refer to an authorised DTS dealer for details.
Gobo dimensions are as follows:
Rotating gobos
ø external (ED) = 13.9 mm + 0 / - 0,1 mm
ø of image with defined edge (ID) = 6.0 mm
thickness = from 0.2 to 3 mm (see catalogue)
Max thickness 3 mm
Fixed gobos
ø external (ED) = 13.9 mm + 0 / - 0,1 mm
ø of image with defined edge (ID) = 6.5 mm
thickness = from 0.2 to 1.2 mm (see catalogue)
Max thickness 1.2 mm
